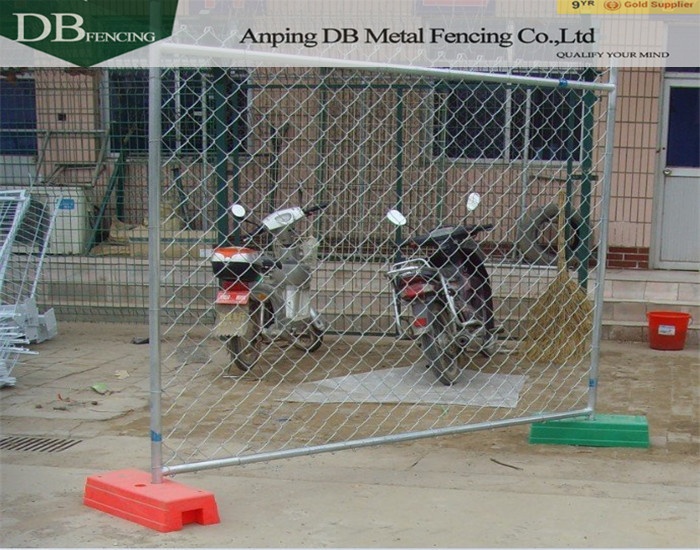

2.175 x 2.315m Galvanised Temporary Chain Link Fence portable panel

2.175 x 2.315m Temporary Chain Link Fence Portabl Panel

2.175 x 2.315m temporary chain link fence uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.

In addition, 2.175 x 2.315m temporary chain link fence with wire diameter of 2.5mm, 50x50mm mesh opening, frame outside diameter of 32mm, plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.

Temporary Chain Link Fencing (2.175 x 2.315m)
Design		Australia & New Zealand
Made		China
1) Panel Specification
Panel Size		Panel Height: 2175mm; Panel Length: 2315mm
Frame		32mm O.D. & 2.0mm Wall Thickness Galvanised to NZ standard 42 Microns

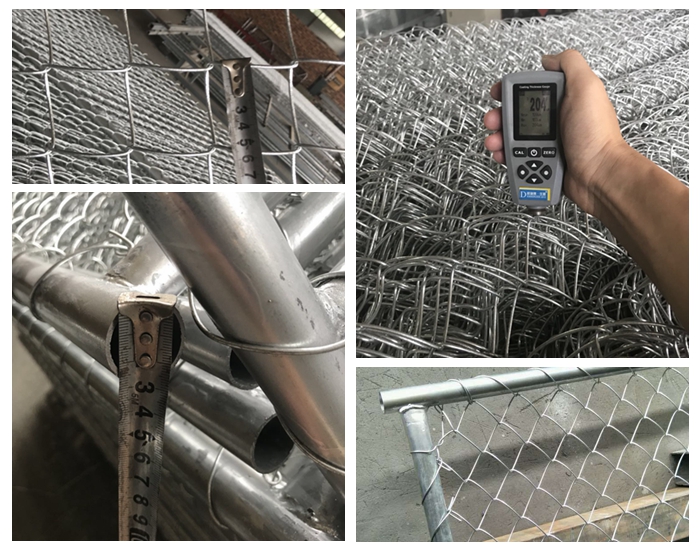

Chain Link Mesh		Wire Size: 2.5mm; Aperture: 50mm x 50mm
Cross Brace		25mm OD x 2.0mm wall thickness,2.0m Length
Treatment		Pre-Galvanised pipe and panel welded,then galvanised spraying
Standard (Standard panels include barbed wire as extra security)		AS 1725-2010 – Chain – Link Fabric Security Fences and Gates. AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial, Aquatic and General Use. AS 54687-2007 –  Temporary Fencing and Hoarding.
2) Feet Specification
Material		Manufactured in high-density polyethylene 610x230x150mm
Treatment		UV220,UV531 and UV770 treatment for anti-color-fading and outdoor use.
Color		Orange, Blue or Red, Green
Infill material		Filled in NZ with 30 mpa Concrete & 10mm chip
Infill concrete weight		27.5-28kg

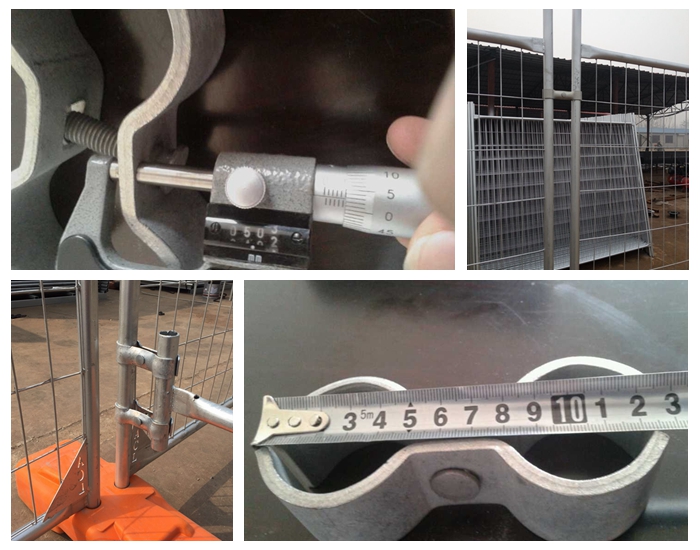

3) Clamp Specification
Size	Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C)
Treatment	Hot Dipped Galvanised
Weight	0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut)
4) Packing	In Steel Pallet
A.Qty In1x20’GP	300 temporary fencing panels only
B.Qty In 1x20’GP	200 set ( 1 panel+1 foot with concrete +1 clamp with bolt and nut)
C.Qty In1x40’HC	600 temporary fencing panels only
D.Qty In1x40’HC	530 sets ( 1 panel+1 foot with concrete +1 clamp with bolt and nut)
5)Shipping Time	15-20 days for 1x40’HC after receiving the deposit;
6)Payment	30% deposit by TT, and the balance paid at sight of BL copy;
7) Price	FOB tianjin USD /set

2.175 × 2.315 TEMPORARY CHAIN LINK FENCE PANELS

• 360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.

• Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

• Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

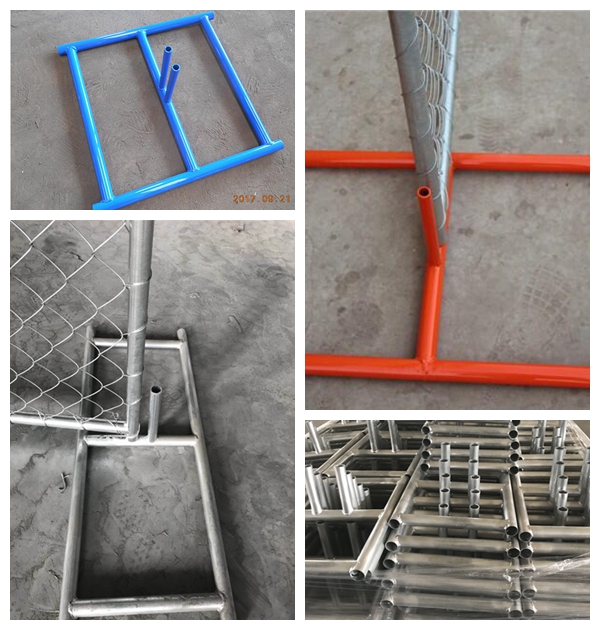

2. 2.175x 2.315m Temporary Chain Link Fence Base Types

4.  2.175 x 2.315m Temporary Chain Link Fence Loading

WHY CHOOSE US?

• Hand craft techniques for highest strength. Tie wires are tightly wrapped around the panel frame by tension bars and tension bands. This to ensuring both longevity and easy of loading.

• Three type of stable fence feet optional. Made of highly durable materials, each type of panel feet is strong and sturdy enough to keep your temporary fence panels upright. Designed to stack when moving from one project to the next.

• Strong anti-corrosion surface treatment. Treated with hot dipped galvanized to ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.

• One-stop supply system. All needed hardware are included in the bulk cargo.

• Reliable and professional advice. As a company integrating production and sales, we'd like to give our customers a friendly and reliable advice for picking up the most suitable one for your desired application.

• Customized size for your needs. We have a standard size temporary chain link fencing inventory. Beside, we accept customized orders of special panel length and height along with the pipe thickness and diameter.

•
