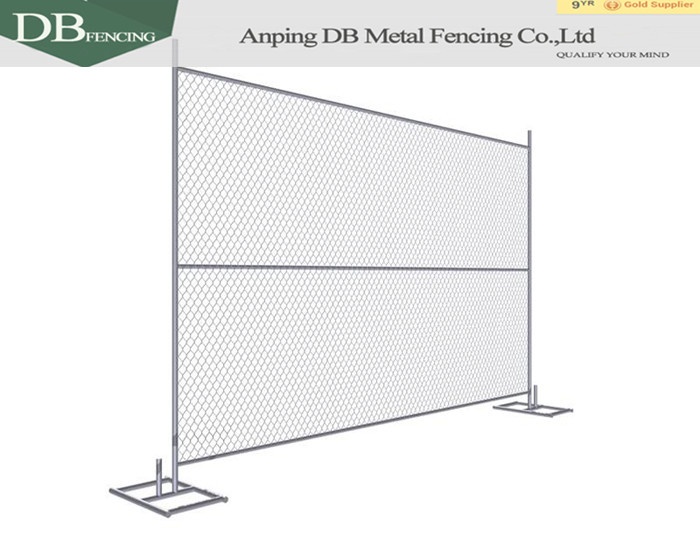

8ft x 12ft Temporary Chain Link Fence
8ft x 12ft Temporary Chain Link Fence
8' × 12' temporary chain link fence uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.
In addition, 8' × 12' temporary chain link fence with wire diameter of 9 gauge, 2-2/5" mesh opening, frame outside diameter of 1-1/4", plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.
|
8ft x 12ft Temporary Chain Link Fence Panel |
||
|
Design |
North America,Australia & New Zealand |
|
|
Made |
China |
|
|
1) Panel Specification |
||
|
Panel Size |
Panel Height: 8ft(2400mm); Panel Length: 12ft(3600mm) |
|
|
Frame |
1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional. |
|
|
Chain Link Mesh Wire |
9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional |
|
|
Chain Link Mesh Size |
2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional. |
|
|
Brace |
Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D |
|
|
Treatment |
Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised |
|
|
Standard (Standard panels include barbed wire as extra security) |
AS 1725-2010 – Chain – Link Fabric Security Fences and Gates. AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial, Aquatic and General Use. AS 54687-2007 – Temporary Fencing and Hoarding. |
|
|
2) Steel Feet Specification |
||
|
Size |
750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base |
|
|
Treatment |
Hot dipped Galvanised; |
|
|
3) Clamp Specification |
||
|
Size |
Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C); |
|
|
Treatment |
Hot Dipped Galvanised; |
|
|
Weight |
0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut); |
|
|
|
||
|
4) Packing |
In Bulk |
|
|
A.Qty In 1x20’GP |
100 set ( 1 panel+1 steel +1 clamp with bolt and nut); |
|
|
B.Qty In1x40’HC |
200 sets ( 1 panel +1 clamp with bolt and nut); |
|
|
|
||
|
5)Shipping Time |
15-20 days for 1x40’HC after receiving the deposit; |
|
|
6)Payment |
30% deposit by TT, and the balance paid at sight of BL copy; |
|
1. 8ft x 12ft Temporary Chain Link Fence Quality Testing
8' × 12' TEMPORARY CHAIN LINK FENCE PANELS
-
360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.
-
Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.
-
Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.
2. 8ft x 12ft Temporary Chain Link Fence Base Types
4. 8ft x 12ft Temporary Chain Link Fence Loading
WHY CHOOSE US?
-
Hand craft techniques for highest strength. Tie wires are tightly wrapped around the panel frame by tension bars and tension bands. This to ensuring both longevity and easy of loading.
-
Three type of stable fence feet optional. Made of highly durable materials, each type of panel feet is strong and sturdy enough to keep your temporary fence panels upright. Designed to stack when moving from one project to the next.
-
Strong anti-corrosion surface treatment. Treated with hot dipped galvanized to ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.
-
One-stop supply system. All needed hardware are included in the bulk cargo.
-
Reliable and professional advice. As a company integrating production and sales, we'd like to give our customers a friendly and reliable advice for picking up the most suitable one for your desired application.
-
Customized size for your needs. We have a standard size temporary chain link fencing inventory. Beside, we accept customized orders of special panel length and height along with the pipe thickness and diameter.
