Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence

Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence

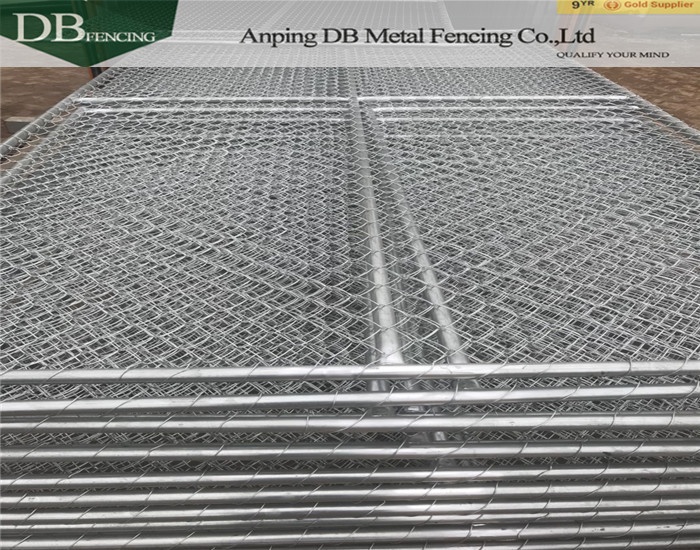

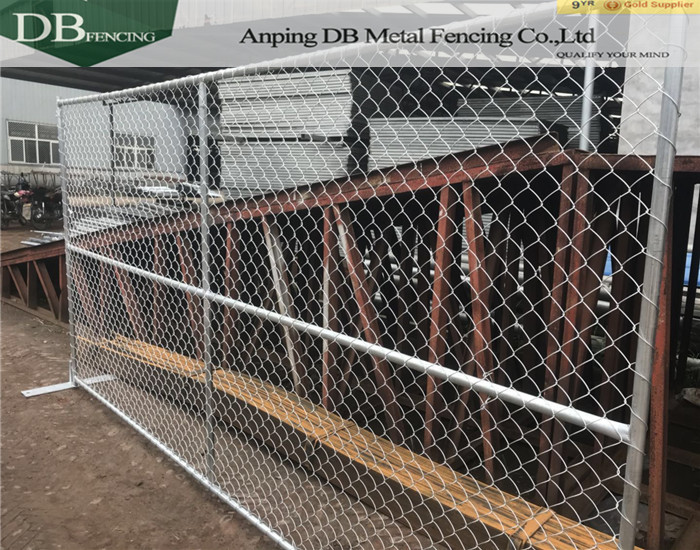

Temporary chain link fence is also called mobile fence mesh, chain link temporary fence, chain link fence panel. Our temporary chain link fence are totally reach Australian standard, which all are hot dipped galvanized. They are popular in Australia, American, England, Africa market.

Temporary Chain Link Fence uses high quality mild steel wire and galvanized tube as raw material, the
infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands. The finished
temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven
ground or sloping sites.
In addition, Temporary Chain Link Fence with wire diameter of 11 or 9 gauge, 2" mesh opening, frame
outside diameter of 1-1/4", plus the hot dipped galvanized surface treatment, its service life can be up
to 10 years.

1. 6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft Temporary Chain Link Fence Panel
Design	North America,Australia & New Zealand
Made	China
1) Panel Specification
Panel Size	6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft
Frame	1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.
Chain Link Mesh Wire	9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional
Chain Link Mesh Size	2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.
Brace	Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D
Treatment	Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised
Standard (Standard panels include barbed wire as extra security)	AS 1725-2010 – Chain – Link Fabric Security Fences and Gates. AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use. AS 54687-2007 –  Temporary Fencing and Hoarding.
2) Steel Feet Specification
Size	750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base
Treatment	Hot dipped Galvanised;
3) Clamp Specification
Size	Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C);
Treatment	Hot Dipped Galvanised;

1. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Quality Testing

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm
fence structure. This can ensure that the temporary fencing is not damaged during the frequent
moving process, and will not be corroded even in hostile environment.

Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and
wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

Another option sturdy attached way. Available flat bar the use clamps to connect the two
adjacent panels.

2. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Stands Types

Temporary chain link fence feet are a high quality, heavy duty, long life product. size is 914x450mm.

•
