Hot Dipped Galvanized Temporary Chain Link Fence

Hot Dipped Galvanized Temporary Chain Link Fence

Reliable and cost-effective temporary chain link fence solution ensuring your job site site is well protected, limits liability.

  • Product No.: TCLF-1915
  • Price: FOBtianjin USD 25-30/set


Hot Dipped Galvanized Temporary Chain Link Fence

Our Temporary Chain Link Fence is a great way to ensure security your job site. Using the chain link wire waved into mesh, tie into a steel tube frame with the horizontal and vertical brace to support strongly, then galvanized spraying paint on the welded point. Fastening the chain link fence panel with the saddle clamp and fix with the stands finally to protect what you want.

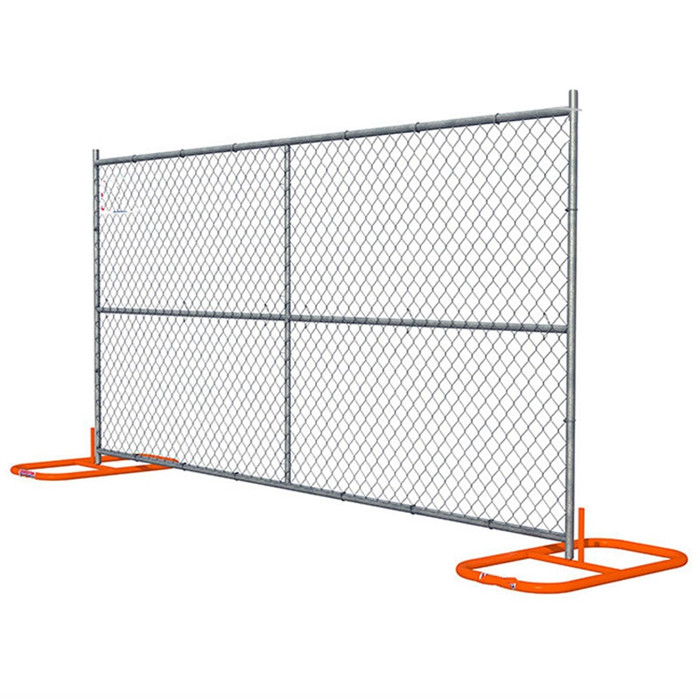

temporary chain link fence with oval stands drawing

1. Temporary Chain Link Fence Panels Specs

  • Panel Size: 6ft x 12ft, 6ft x 10ft, 6ft x 8ft, 8ft x10ft, 8ft x 12ft

  • Frame: 1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional

  • Chain Link Mesh Wire: 9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

  • Chain Link Mesh Size: 2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional

  • Cross Brace: Vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

  • Treatment: Pre-Galvanized pipe and panel welded,then galvanized spraying or hot dipped galvanized

  • Standard 1: AS 1725-2010 Chain Link Fabric Security Fences and Gates

  • Standard 2: AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use

  • Standard 3: AS 54687-2007 –  Temporary Fencing and Hoarding

2.  Cross Brace: 1" or 1.25'' O.D,14 Gauge wall thick

  • Plus Bracing - Both vertical and horizontal bracing to impact strength from outside and wind to be a durable panels

  • Vertical Bracing - The vertical brace (centered in frame horizontally) increasin the strength and durability of the fence panel

temporary chain link fence horizontal and vertical full welded toegther

3. The stands of temporary chain link fence size 16" x 36", with 1-3/8" diameter tubing and slightly smaller uprights for panels to fit over.

Rectangle type hot dipped galvanized standsoval galvanized temporary chain link fence stands  temporary chain link fence stands packed with woven film

4. Temporary chain link fence clamps

Pressed steel, 8 Gauge, Designed to join fence panels togetherHot-dipped galvanized silver color,
Included 3/8" x 2-1/2" H.D.G. carriage bolt & nut; priced per Set.
temporary chain link fence clamps

5. Barb Wire, Razor Wire -Stop attempting to gain illegal access to your site

The barb wire and razor wire can be along the top of our 6ft and 8ft height temporary chain link fences and matching gates.

Each wire type will discourage fence climbers. We advise customers check with local laws to learn if barb/razor is permitted or violates a city ordinance.

Normally three strands barbed wire from post to post in a straight line, or arranging the barb arms at a 45 degree angle. The latter method is very rare because the barb sticks out into a walking path.

Barbed wire on the temporary chain link fence top side

6. Privacy Fence Screens, Windscreens

The privacy fence screens / windscreens is fit to 6ft or 8ft height chain link fences, which is  polyethylene mesh to provide 88% privacy and 12% airflow.

Highly effective to dampen wind, resist water, mold and mildew, provide privacy and cut UV rays.

Very popular for temporary commercial use at construction sites, agricultural fields, emergency restoration areas or shelters, sports fields, courtyards, nurseries or gardens.

green color of temporary chain link fence wind screenblock color of temporary chain link fence privacy screen

7. Temporary chain link fence gate

  • Personal Gate: The gate of Temp Fence chain link fence is available with 3' wide opening Pedestrian
    gate with hinges and pad-lockable latch, giving a path to safely and efficiently allow the crows.

    person gate of temporary chain link fence
  • Swing gates: The swing gate fully open to allow trucks to pass through. If the opening is 12 feet or less (such as a pedestrian entrance), a single swing gate is sufficient. Swing gates usually open inward (toward the property), unless impossible to do otherwise. For wider openings (vehicle entrances), double swing gates are recommended as this configuration requires less room to operate than a single, longer gate.

swing gate of temporary chain link fence
  • Slide gates: Allows sufficient room for traffic of all kinds to pass through. Slide Gates require very little room to operate and are a preferred option when a construction area has limited space, such as near a roadway, property line or permanent structure. The area around a slide gate must be level to allow each gate to move freely and parallel to the attached chain link fence for proper operation

.sliding gate of temporary chain link fence

 8. Temporary chain link fence packing and loading

temporary chain link fence panels packed into steel pallet tightly temporary chain link fence loaded into container by fork lift temporary chain link fence loaded into container

9. Temporary chain link fence features

  • 360° full welded tubular frame
  • Galvanized 60 or 28 microns to anti- corrosion
  • Installs on any surface including ground, asphalt or concrete
  • ASTM A392-06 standard minimize the amount of corrosion
  • The welding corner joints are galvanized sprayed painting to cover any exposed metal.
  • Galvanized saddle clamps, nuts, bolts used to attach panels together.
