8ft x 10ft Temporary Chain Link Fence

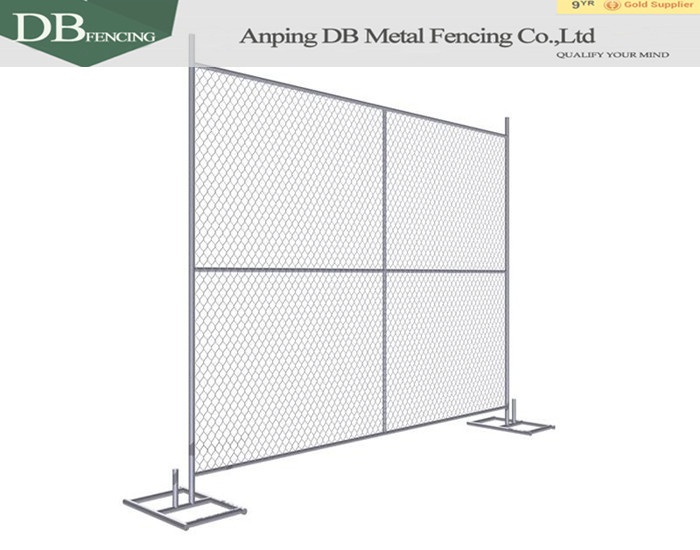

1. 8ft x 10ft Temporary Chain Link Fence Panel

Design

North America,Australia & New Zealand

Made

China

1) Panel Specification

Panel Size

Panel Height: 8ft(2400mm); Panel Length: 10ft(3000mm)

Frame

1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.

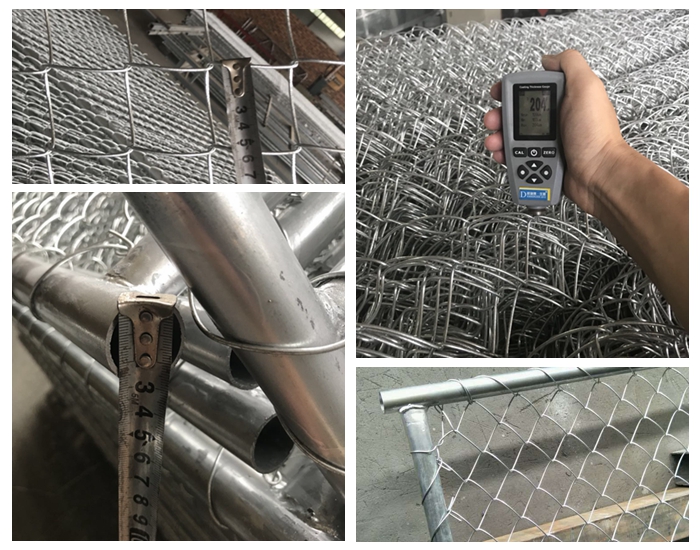

Chain Link Mesh Wire

9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

Chain Link Mesh Size

2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.

Brace

Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

Treatment

Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised

Standard (Standard panels include barbed wire as extra security)

AS 1725-2010 – Chain – Link Fabric Security Fences and Gates.

AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,

Aquatic and General Use.

AS 54687-2007 –  Temporary Fencing and Hoarding.

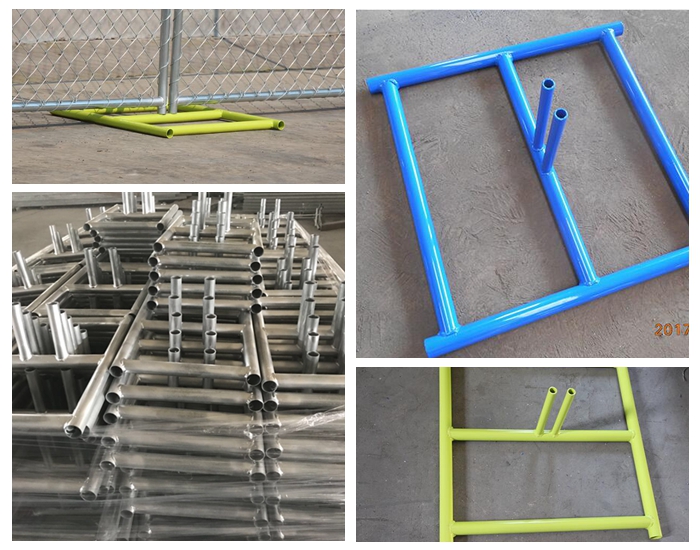

2) Steel Feet Specification

Size

750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base

Treatment

Hot dipped Galvanised;

3) Clamp Specification

Size

Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C);

Treatment

Hot Dipped Galvanised;

Weight

0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut);

4) Packing

In Bulk

A.Qty In 1x20’GP

100 set ( 1 panel+1 steel +1 clamp with bolt and nut);

B.Qty In1x40’HC

300 sets ( 1 panel +1 clamp with bolt and nut);

5)Shipping Time

15-20 days for 1x40’HC after receiving the deposit;

6)Payment

30% deposit by TT, and the balance paid at sight of BL copy;
