Temporary Chain Link Fence,Standard 2.2x 1.8m Galvanised Temporary Chain Link Fence portable panel Construction Horading Fence Aperture 50x50mm, 60x60mm, HDG x 11 Gage or 9 Gauge,1.25''(32mm) O.D. Galvanized

  • Product No.: TCLF---010
  • Price: FOBtianjin USD 30-40/set

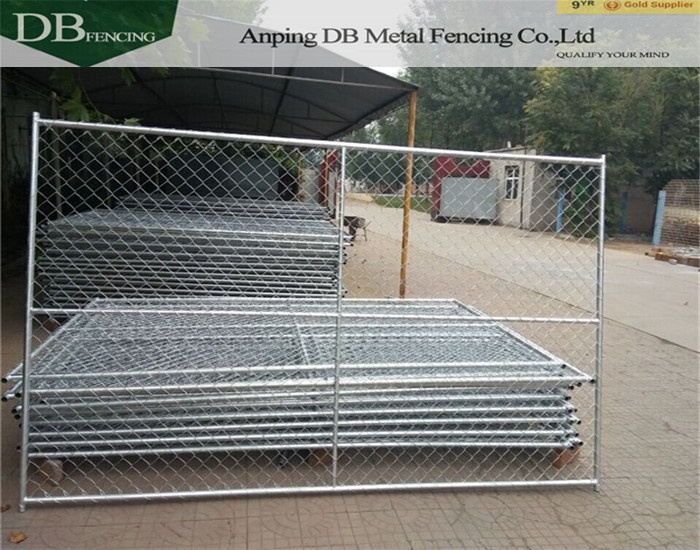

Interlocking Security Fence chain link 2.2x1.8m Temporary Chain Link Fence Portabl Panel

2.2 x 1.8m temporary chain link fence uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.

In addition, 2.2 x 1.8m temporary chain link fence with wire diameter of 2.5mm, 50x50mm mesh opening, frame outside diameter of 32mm, plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.

Interlocking Security Fence chain link 2.2x1.8m


Australia & New Zealand



1) Panel Specification

Panel Size

Panel Height: 1800mm; Panel Length: 2200mm


32mm O.D. & 2.0mm Wall Thickness Galvanised to NZ standard 42 Microns

Chain Link Mesh

Wire Size: 2.5mm; Aperture: 50mm x 50mm

Cross Brace

25mm OD x 2.0mm wall thickness,2.0m Length


Pre-Galvanised pipe and panel welded,then galvanised spraying

Standard (Standard panels include barbed wire as extra security)


AS 1725-2010 – Chain – Link Fabric Security Fences and Gates.

AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,

Aquatic and General Use.

AS 54687-2007 –  Temporary Fencing and Hoarding.

2) Feet Specification


Manufactured in high-density polyethylene 610x230x150mm


UV2002,UV531 and UV770 treatment for anti-color-fading and outdoor use.


Orange, Blue or Red, Green

Infill material

 Filled in NZ with 30 mpa Concrete & 10mm chip

Infill concrete weight


3) Clamp Specification


Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C)


Hot Dipped Galvanised


0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut)


4) Packing

In Steel Pallet

A.Qty In1x20GP

3300 temporary fencing panels only

B.Qty In 1x20GP

280 set ( 1 panel+1 foot with concrete +1 clamp with bolt and nut)

C.Qty In1x40HC

790 temporary fencing panels only

D.Qty In1x40HC

660 sets ( 1 panel+1 foot with concrete +1 clamp with bolt and nut)


5)Shipping Time

15-20 days for 1x40HC after receiving the deposit;


30% deposit by TT, and the balance paid at sight of BL copy;

7) Price

  FOB tianjin USD /set

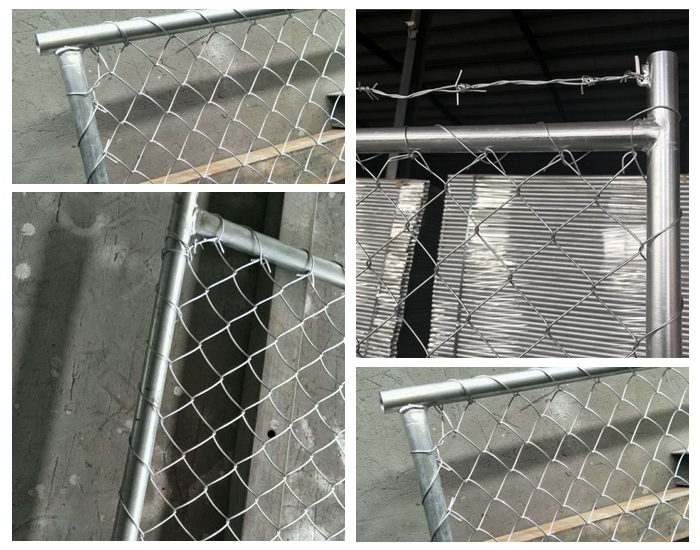

  • 360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.

  • Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

  • Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

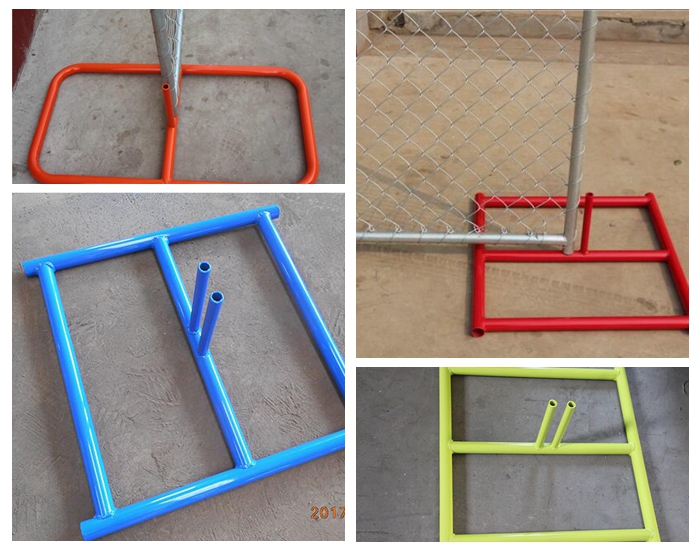

2. 2.2x 1.8m Temporary Chain Link Fence Base Types

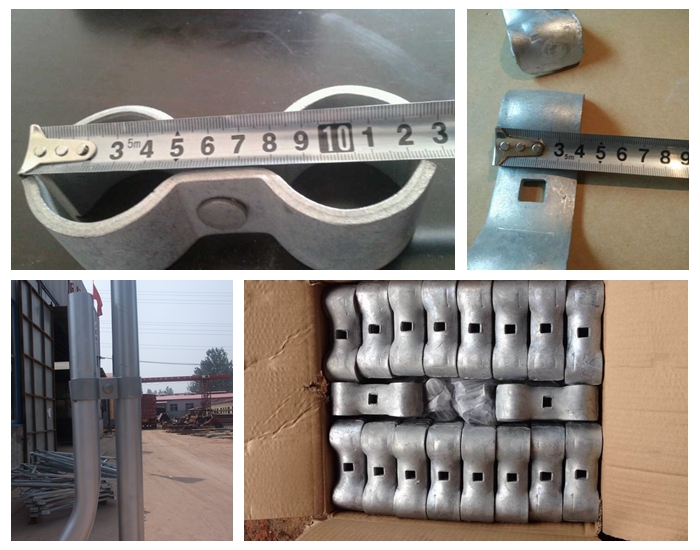

3. 2.2 x 1.8m Temporary Chain Link Fence Steel Clamp

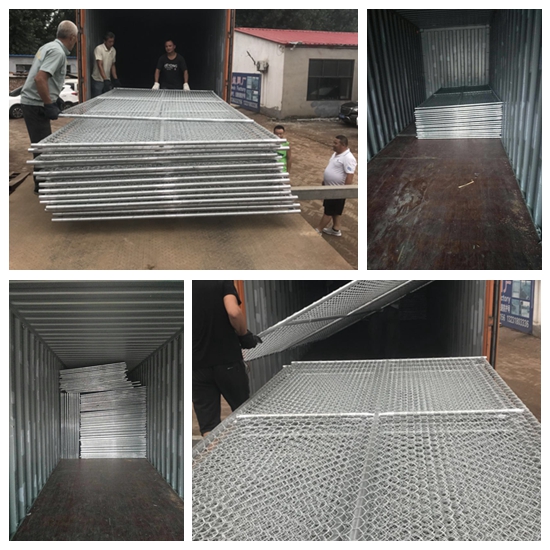

4.  2.2 x 1.8m Temporary Chain Link Fence Loading


  • Hand craft techniques for highest strength. Tie wires are tightly wrapped around the panel frame by tension bars and tension bands. This to ensuring both longevity and easy of loading.

  • Three type of stable fence feet optional. Made of highly durable materials, each type of panel feet is strong and sturdy enough to keep your temporary fence panels upright. Designed to stack when moving from one project to the next.

  • Strong anti-corrosion surface treatment. Treated with hot dipped galvanized to ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.

  • One-stop supply system. All needed hardware are included in the bulk cargo.

  • Reliable and professional advice. As a company integrating production and sales, we'd like to give our customers a friendly and reliable advice for picking up the most suitable one for your desired application.

  • Customized size for your needs. We have a standard size temporary chain link fencing inventory. Beside, we accept customized orders of special panel length and height along with the pipe thickness and diameter.
