Wide range of colour 79(in) x 43(in)crowd control barrier apply to the United States Concert.

Wide range of colour 79" x 43"crowd control barrier  apply to the United States Concert

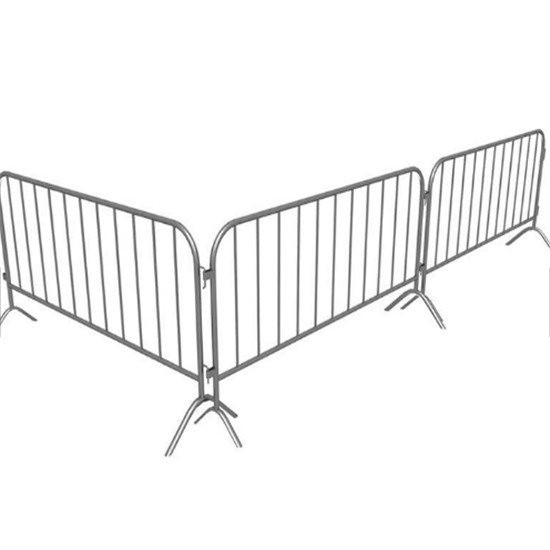

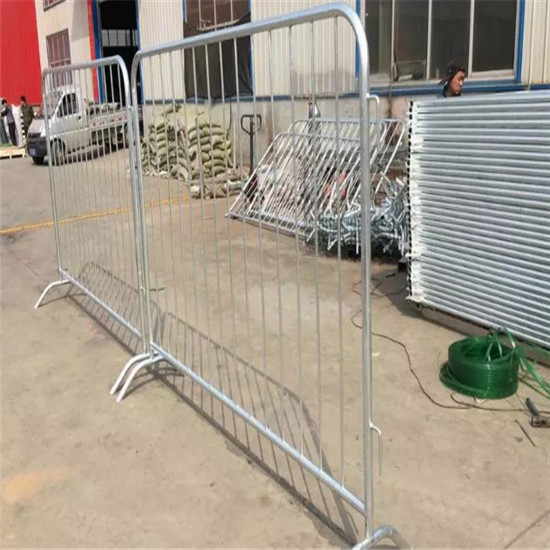

The Crowd control barrier is a sturdy fence system, which can quickly control a crowd
while vehicle and pedestrian traffic to block off restricted areas . This kind of steel barricade
is made of high-quality carbon steel with hot dipped galvanized to resist weather for long, used
in civil projects, work sites, events and festivals.

1. Detailed description  of crowd control barriers

Material	High  Quality Low Carbon Steel Tube/Bar
Panel  size	2.1*1.1m,   2.6*1.2m, 2.5*1.1m ,3.2*1.1m
Frame Pipe	20mm. 25mm. 32mm. 40mm. 42mm. 48mm O. D
Infill  Pipe	14mm. 16mm. 20mm. 25mm  O. D
Spacing	60mm. 100mm. 190mm. 200mm
Thickness of Pipe	1.2mm, 1.5mmm, 2.0mm, 2.5mm

2. Feet of crowd control barriers

A> Flat Feet (Detached or Settled)

B> Bridger Feet (Detached or Settled)

C>  "^"Type Feet ( Settled)

D>  Wheel  Feet  ( Settled)

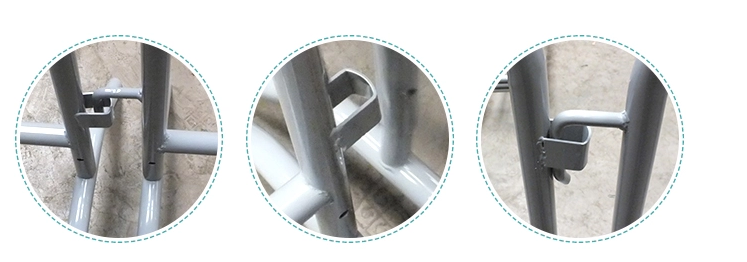

3. Barricades of crowd control barriers

Interlock using an industry-standard hook and half-loop fastening system.
Main Frame: Outside perimeter (main frame) is made of 1½ ” O.D. galvanized steel tubing,
minimum 16 gauge. The outer frame is a single length of tubing without welds or deformation.
Pipe is bent at right angleswith a minimum of smooth deformation. Horizontal and vertical bars
are at right angles to overall frame.

4. Grill of crowd control barriers

21 equally-spaced bars inside vertical members, made of ½” O.D. steel tubing, minimum
16 gauge. Minimum of ½” weld at the top and at the bottom of each upright bar. 21 interior
bars are 4¼”apart, O.D. to O.D. The spacing between inside vertical members does not exceed
4½” and meets all standard codes.

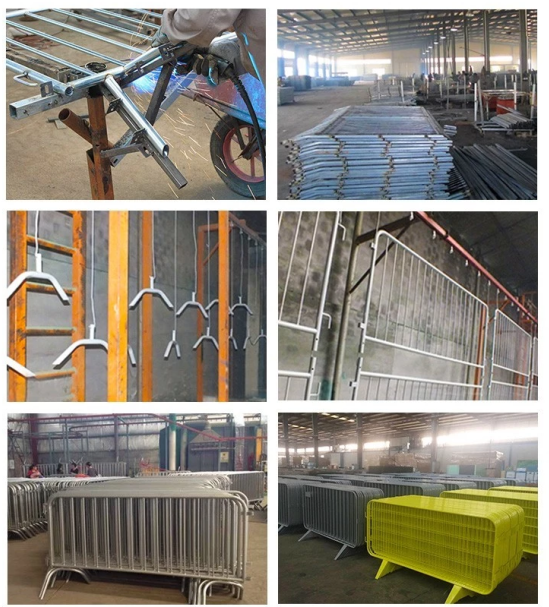

5. Finish of crowd control barriers

Entire panel is hot-dip zinc-galvanized after welding conforming to Marine specifications.
Every barrier is filed after galvanizing so that burrs from galvanizing are filed smooth and
there are no sharp points.

6. Advantages of crowd control barriers

Hot dip galvanizing technology is used after welding to make thecrowd control barriers
more beautiful and anticorrosive
It is not only light but also hard and very easy to handle and transport
Movable feet are more convenient and efficient for transportation and storage
Hot dip galvanized to protect steel

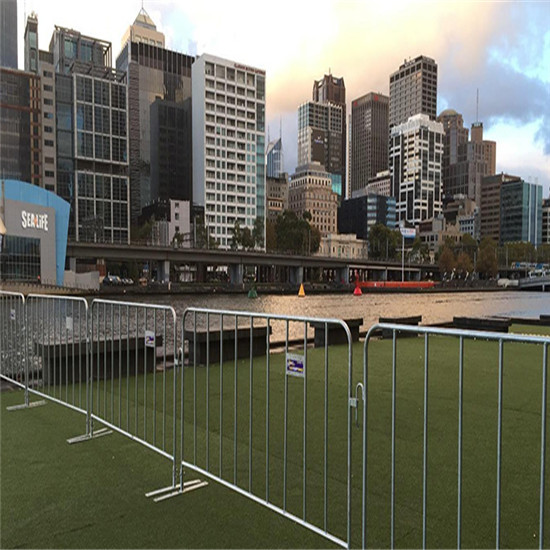

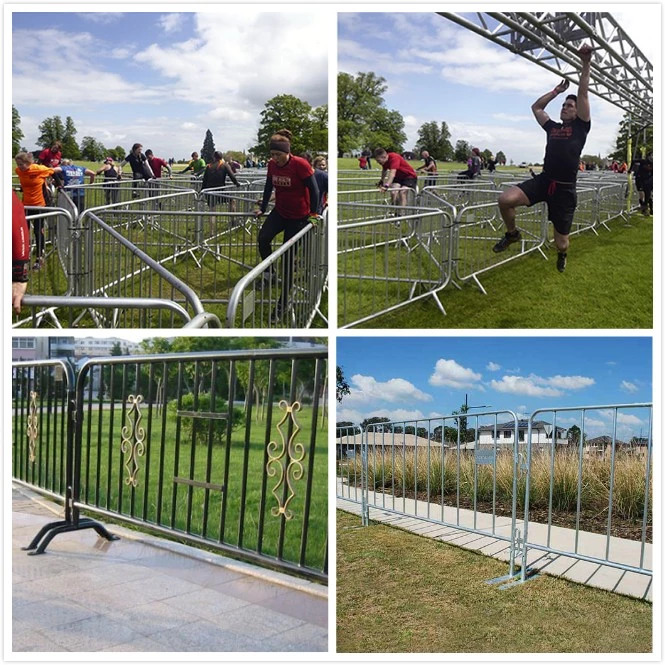

7. Applicationof crowd control barriers

Construction site  Demolition site Public traffic  scenic area Bike rack barricades

Sport fields Concert  Demonstration

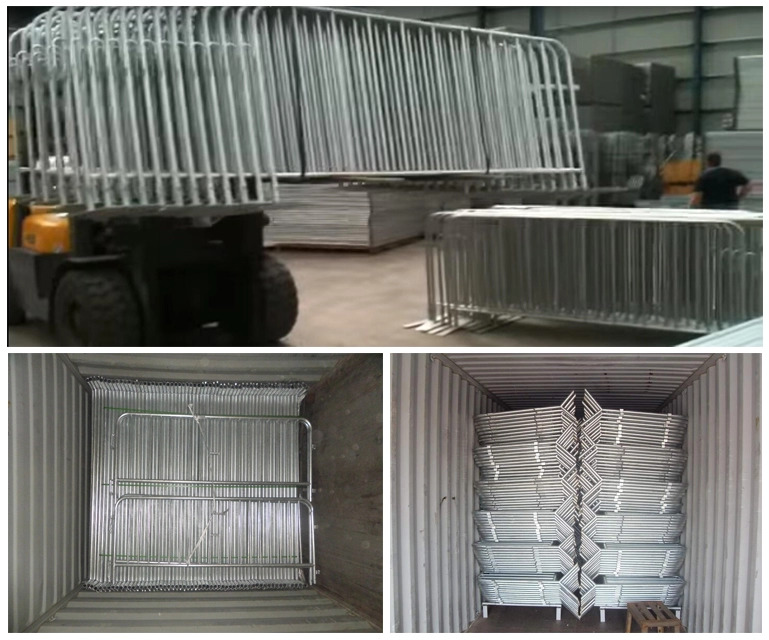

8. Packaging of crowd control barriers

1.in bulk, with containrs

2.or plastic inside, metal pallet outside

3.standard export packaging

4.custom packing is also available
