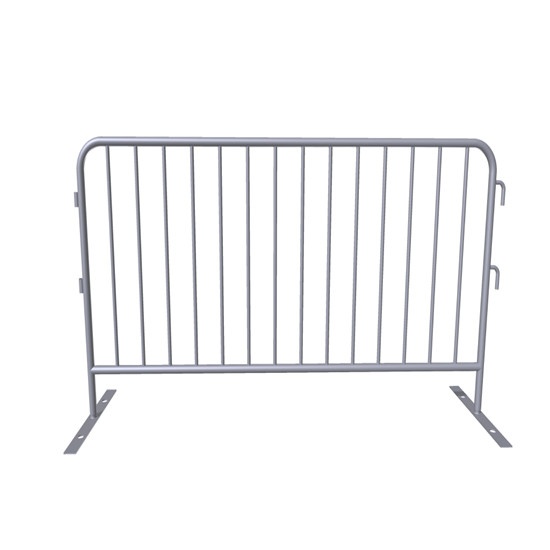

Easy installation 98(in) x 43(in)crowd barriers supply to Canada Demolition site
![Easy installation 98(in) x 43(in)crowd barriers supply to Canada Demolition site](../pic/big/457_0.jpg)
Easy installation 98(in) x 43(in)crowd barriers supply to Canada Demolition site
The Crowd control barrier is a sturdy fence system, which can quickly control a crowd
while vehicle and pedestrian traffic to block off restricted areas . This kind of steel barricade
is made of high-quality carbon steel with hot dipped galvanized to resist weather for long, used
in civil projects, work sites, events and festivals.
![a picture of two control barrier connected
in our factory for customer](/pic/other/2019-10-14-09-58-505.jpg)
1. Detailed description of Crowd Control Barriers
Material |
High Quality Low Carbon Steel Tube/Bar |
Panel size |
2.1*1.1m, 2.6*1.2m, 2.5*1.1m ,3.2*1.1m< /span> |
Frame Pipe |
20mm. 25mm. 32mm. 40mm. 42mm. 48mm O. D |
Infill Pipe |
14mm. 16mm. 20mm. 25mm O. D |
Spacing |
60mm. 100mm. 190mm. 200mm |
Thickness of Pipe |
1.2mm, 1.5mmm, 2.0mm, 2.5mm |
2. Feet of crowd control barriers
A> Flat Feet (Detached or Settled)
![a picture of crowd control barrier flat base](/pic/other/2018-12-24-10-38-121.png)
B> Bridger Feet (Detached or Settled)
![a picture of crowd control barrier bridge feet](/pic/other/2018-12-24-10-47-573.png)
C> "^"Type Feet ( Settled)
![a picture of crowd control barrier](/pic/other/2018-12-24-10-48-280.png)
D> Wheel Feet ( Settled)
![a picture of control barrier wheel feet](/pic/other/2018-12-24-10-49-548.png)
3. Barricades of crowd control barriers
Interlock using an industry-standard hook and half-loop fastening system.
Main Frame: Outside perimeter (main frame) is made of 1½ ” O.D. galvanized steel tubing,
minimum 16 gauge. The outer frame is a single length of tubing without welds or deformation.
Pipe is bent at right angleswith a minimum of smooth deformation. Horizontal and vertical bars
are at right angles to overall frame.
![crowd cotrol barrier
interlock using an industry-standard hook and half-loop fastening system](/pic/other/2018-12-24-10-51-258.jpg)
4. Grill of crowd control barriers
21 equally-spaced bars inside vertical members, made of ½” O.D. steel tubing, minimum
16 gauge. Minimum of ½” weld at the top and at the bottom of each upright bar. 21 interior
bars are 4¼”apart, O.D. to O.D. The spacing between inside vertical members does not exceed
4½” and meets all standard codes.
![Grill of crowd control barriers](/pic/other/2018-12-24-10-52-240.jpg)
5. Finish of crowd control barriers
Entire panel is hot-dip zinc-galvanized after welding conforming to Marine specifications.
Every barrier is filed after galvanizing so that burrs from galvanizing are filed smooth and
there are no sharp points.
![steel barricades welding and
galvanzied processing](/pic/other/2019-10-14-10-06-133.jpg)
6. Advantages of crowd control barriers
Hot dip galvanizing technology is used after welding to make thecrowd control barriers
more beautiful and anticorrosive
It is not only light but also hard and very easy to handle and transport
Movable feet are more convenient and efficient for transportation and storage
Hot dip galvanized to protect steel
![a picture of crowd control barrier ith flat base in our fatcory](/pic/other/2018-12-24-10-55-473.png)
7. Application of crowd control barriers
Construction site Demolition site Public traffic scenic area Bike rack barricades
Sport fields Concert Demonstration
![a picture of crowd control barrier used in construction site](/pic/other/2018-12-24-10-56-362.png)
8. Packaging of crowd control barriers
1. In bulk, with containrs
2. Plastic inside, metal pallet outside
3. Standard export packaging
4. Custom packing is also available
![crowd ocntrol barrier loaded into container](/pic/other/2018-12-24-10-57-127.png)
