Wholesale 6 foot galvanized chain link fence
Wholesale 6 foot galvanized chain link fence

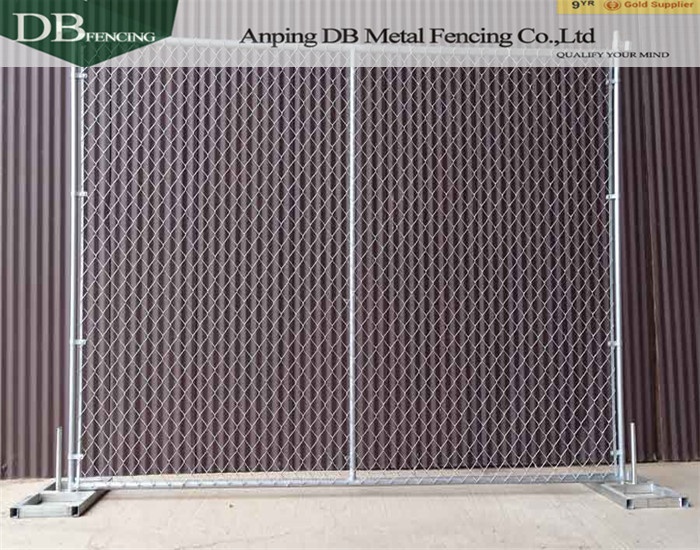

Temporary chain link fence is also called mobile fence mesh, chain link fence panel. Our temporary chain
link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular
in Australia, American, England, Africa market .
Temporary Chain Link Fence uses high quality mild steel wire and galvanized tube as raw material, the
infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished
temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven
ground or sloping sites.
In addition, temporary chain link fence with wire diameter of 9 gauge, 11 gauge and 11.5 gauge, 2'', 2-1/4'', 2-2/5"
mesh opening, frame outside diameter of 1-1/4" and 1-3/8'',plus the hot dipped galvanized surface treatment, its service
life can be up to 10 years.
Our most popular size Height: 6’ and Length:12’ is for construction, municipalities, schools, events and
residential projects.
Height: 8’ and Length: 12’ for large construction and commercial projects that gives you that added level
of security and safety.
6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft Temporary Chain Link Fence Panel
|
|
Design |
North America,Australia & New Zealand |
Made |
China |
1) Panel Specification |
|
Panel Size |
6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft |
Frame |
1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional. |
Chain Link Mesh Wire |
9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional |
Chain Link Mesh Size |
2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional. |
Brace |
Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D |
Treatment |
Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised |
Standard (Standard panels include barbed wire as extra security) |
AS 1725-2010 – Chain – Link Fabric Security Fences and Gates. AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use. AS 54687-2007 – Temporary Fencing and Hoarding. |
2) Steel Feet Specification |
|
Size |
750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base |
Treatment |
Hot dipped Galvanised; |
3) Clamp Specification |
|
Size |
Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C); |
Treatment |
Hot Dipped Galvanised; |
1. Temporary Chain Link Fence Quality Testing
DB Chain Link Fence panels comply with ASTM A392-06 standards, having superior exposure and corrosion
resistance in an outdoor construction site.
360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure.
This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not
be corroded even in hostile environment.
Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and sometimes
wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.
Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.
2. Temporary Chain Link Fence Stands Types
Our Temporary chain link Fence Panel stands (footings) are constructed from galvanized 1'' or 1-3/8"
diameter tubing and welded into an approximate 16" x 36" rounded rectangles. With two smaller diameter
uprights welded in place to accept the outer frame, these stands ensure stability and reliability.
3. Temporary Chain Link Fence Saddle Clamp
Each panel is further reinforced with Galvanized saddle clamps, nuts, bolts used to connect two panels together.
4. Temporary Chain Link Fence Loading
DB Chain link Panel Fencing is an excellent perimeter security solution , and easy to transport and
secure into place, above-ground panel fencing provides a sturdy and reliable fence for many job-site
applications.
5. Temporary Chain Link Fence Applications
Some of the most common uses for temporary chain link panels include:
• Commercial Construction Sites
• Housing Developments
• Highway projects
• Remodels & store front renovation
• Public Works Projects
• Post-Disaster Reconstruction
