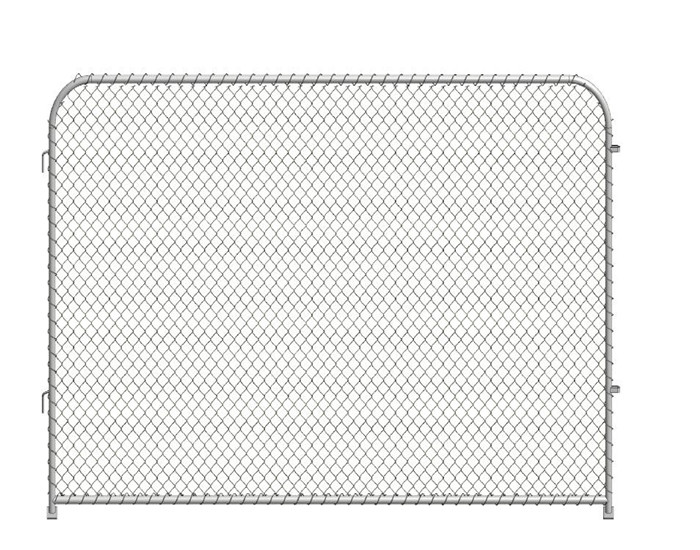

Roundtop Security Fence chain link 2.2x1.8m

Roundtop Security Fence chain link 2.2x1.8m

Temporary Chain Link Fence,Standard 2.2x1.8m, 32mm O.D. & 2.0mm Wall Thickness Galvanised to standard 42 Microns,Wire Size: 2.5mm; Aperture: 50mm x 50mm.


  • Product No.: TCLF---085
  • Price: FOBtianjin USD 25-30/set

Details

Roundtop Security Fence chain link 2.2x1.8m

Temporary chain link fence is also called mobile fence mesh, temporary fence. Our temporary chain link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular in Australia, American, England, Africa market.......

Round Security Fence Chain Link 2.2x1.8m uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.

In addition,Round security chain link fence panel with wire diameter of 11 or 9 gauge, 2" mesh opening, frame outside diameter of 1-1/4", plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.



Roundtop Security Fence chain link 2.2x1.8m

Design

Australia & New Zealand

Made

China

1)Panel Specification

Panel Size

Panel Height: 1800mm; Panel Length: 2200mm

Frame

32mm O.D. & 2.0mm Wall Thickness Galvanised to standard 42 Microns

Chain Link Mesh

Wire Size: 2.5mm; Aperture: 50mm x 50mm

Treatment

Pre-Galvanised pipe and panel welded,then galvanised spraying

Standard (Standard panels include barbed wire as extra security)



AS 1725-2010 – Chain – Link Fabric Security Fences and Gates.

AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,

Aquatic and General Use.

AS 54687-2007 –  Temporary Fencing and Hoarding.

2)Steel Feet Specification

Size

750mm L x 100 W x 8.0mm Wall Thick

Treatment

Hot dipped Galvanised

3)Clamp Specification

Size

Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C)

Treatment

Hot Dipped Galvanised

Weight

0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut)



4)Packing

In Bulk

A.Qty In1x20GP

210 temporary chain link fencing panels only

B.Qty In 1x20GP

180 set ( 1 panel+1 steel +1 clamp with bolt and nut)

C.Qty In1x40HC

400 temporary chain link fencing panels only

D.Qty In1x40HC

362 sets ( 1 panel+1 foot +1 clamp with bolt and nut)



5)Shipping Time

15-20 days for 1x40HC after receiving the deposit;

6)Payment

30% deposit by TT, and the balance paid at sight of BL copy;

7)Price

  FOB tianjin USD /set

1. Round Top Security Fence Chain Link 2.2x1.8m Quality Testing

TEMPORARY CHAIN LINK FENCE PANELS

  • 360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.

  • Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

  • Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.


2. Round Top Security Fence Chain Link 2.2x1.8m Base Types

Temporary chain link fence feet are a high quality, heavy duty, long life product. size is 914x450mm.

Your High quality steel temporary chain link fence will look greater and be safer.


3. Round Top Security Fence Chain Link 2.2x1.8m Steel Clamp

4. Round Top Security Fence Chain Link 2.2x1.8m Loading

WHY CHOOSE US?

  • Hand craft techniques for highest strength. Tie wires are tightly wrapped around the panel frame by tension bars and tension bands. This to ensuring both longevity and easy of loading.

  • Three type of stable fence feet optional. Made of highly durable materials, each type of panel feet is strong and sturdy enough to keep your temporary fence panels upright. Designed to stack when moving from one project to the next.

  • Strong anti-corrosion surface treatment. Treated with hot dipped galvanized to ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.

  • One-stop supply system. All needed hardware are included in the bulk cargo.

  • Reliable and professional advice. As a company integrating production and sales, we'd like to give our customers a friendly and reliable advice for picking up the most suitable one for your desired application.

  • Customized size for your needs. We have a standard size temporary chain link fencing inventory. Beside, we accept customized orders of special panel length and height along with the pipe thickness and diameter.

  •  After-sales service

    Our after-sales service start immediately after signing the contract.    1. No matter FOB or CIF the price term is we would try our best to find a lowest

     freight cost for customers' reference.

     2. Do our best to help customer arrange the shipment and customs clearance.   3. Installation, maintenance and repair instructions with full information.

     4.3-8 years warranty depends to different product

     5. Accept Changing or Refunding if the products cannot be installed rightly
    Our Services

    1. Reply your enquiry in 24 working hours;

    2. Experienced staffs will answer all your questions in professional and fluent English;

    3. Customized design is available.

    4. Exclusive & unique solution can be provided by our well-trained and professional engineers;

    5. Special discount can be offered with large quantity;

    6. We will try our best to meet your requirements and supply you best quality of the products.
