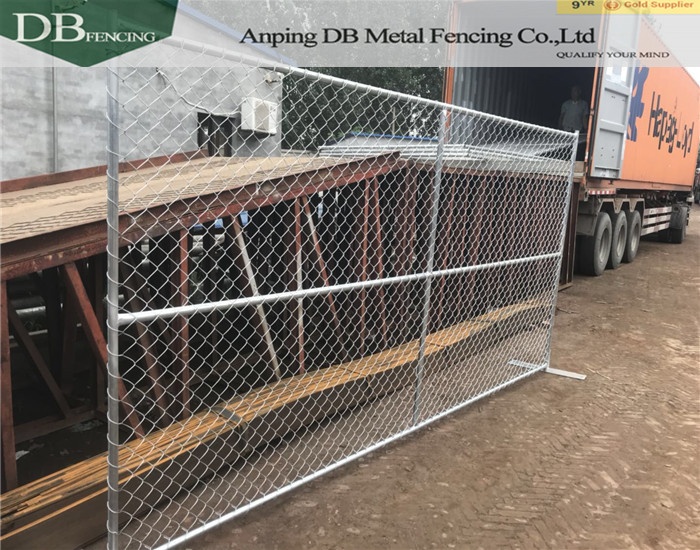

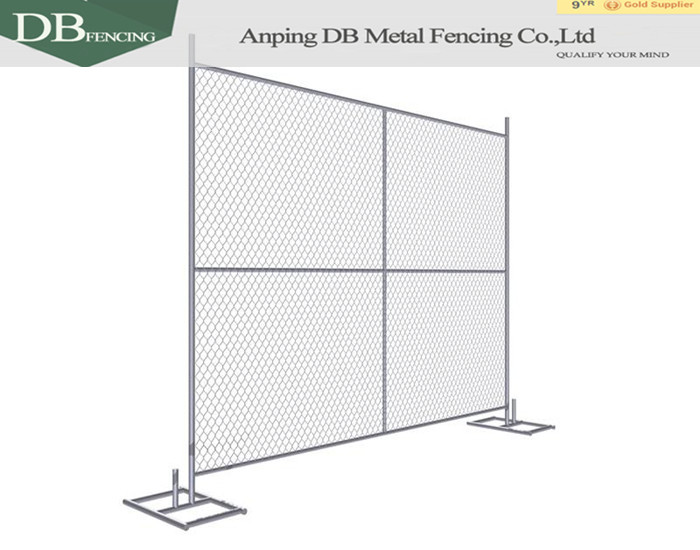

6ft × 10ft Temporary Chain Link Fence
6ft × 10ft Temporary Chain Link Fence
DB Fencing Company provides premium quality temporary chain link fence that are hand crafted from start to finish. Our chain link fence panels are guaranteed to last 5 years. All panels are constructed using low carbon Steel Q235 material. Also, tension bars and tension bands on the left and right can be requested by customers.
1. Temporary Chain Link Fence Panels Specs
Panel Size: 6ft x 12ft, 6ft x 10ft, 6ft x 8ft, 8ft x10ft, 8ft x 12ft
Frame: 1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional
Chain Link Mesh Wire: 9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional
Chain Link Mesh Size: 2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional
Cross Brace: Vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D
Treatment: Pre-Galvanized pipe and panel welded,then galvanized spraying or hot dipped galvanized
Standard 1: AS 1725-2010 Chain Link Fabric Security Fences and Gates
Standard 2: AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use
Standard 3: AS 54687-2007 – Temporary Fencing and Hoarding
2. Cross Brace: 1" or 1.25'' O.D,14 Gauge wall thick
Plus Bracing - Both vertical and horizontal bracing to impact strength from outside and wind to be a durable panels
Vertical Bracing - The vertical brace (centered in frame horizontally) increasin the strength and durability of the fence panel
3. The stands of temporary chain link fence size 16" x 36", with 1-3/8" diameter tubing and slightly smaller uprights for panels to fit over.
4. Temporary chain link fence clamps
5. Barb Wire, Razor Wire -Stop attempting to gain illegal access to your site
The barb wire and razor wire can be along the top of our 6ft and 8ft height temporary chain link fences and matching gates.
Each wire type will discourage fence climbers. We advise customers check with local laws to learn if barb/razor is permitted or violates a city ordinance.
Normally three strands barbed wire from post to post in a straight line, or arranging the barb arms at a 45 degree angle. The latter method is very rare because the barb sticks out into a walking path.
6. Privacy Fence Screens, Windscreens
The privacy fence screens / windscreens is fit to 6ft or 8ft height chain link fences, which is polyethylene mesh to provide 88% privacy and 12% airflow.
Highly effective to dampen wind, resist water, mold and mildew, provide privacy and cut UV rays.
Very popular for temporary commercial use at construction sites, agricultural fields, emergency restoration areas or shelters, sports fields, courtyards, nurseries or gardens.
7. Temporary chain link fence gate
Personal Gate: The gate of Temp Fence chain link fence is available with 3' wide opening Pedestrian
gate with hinges and pad-lockable latch, giving a path to safely and efficiently allow the crows.
Swing gates: The swing gate fully open to allow trucks to pass through. If the opening is 12 feet or less (such as a pedestrian entrance), a single swing gate is sufficient. Swing gates usually open inward (toward the property), unless impossible to do otherwise. For wider openings (vehicle entrances), double swing gates are recommended as this configuration requires less room to operate than a single, longer gate.
Slide gates: Allows sufficient room for traffic of all kinds to pass through. Slide Gates require very little room to operate and are a preferred option when a construction area has limited space, such as near a roadway, property line or permanent structure. The area around a slide gate must be level to allow each gate to move freely and parallel to the attached chain link fence for proper operation
8. Temporary chain link fence packing and loading
9. Temporary chain link fence features
- 360° full welded tubular frame
- Galvanized 60 or 28 microns to anti- corrosion
- Installs on any surface including ground, asphalt or concrete
- ASTM A392-06 standard minimize the amount of corrosion
- The welding corner joints are galvanized sprayed painting to cover any exposed metal.
- Galvanized saddle clamps, nuts, bolts used to attach panels together.
