6ftx10ft,6ftx12ft temporary chain link fence detail drawing

6ftx10ft,6ftx12ft temporary chain link fence detail drawing

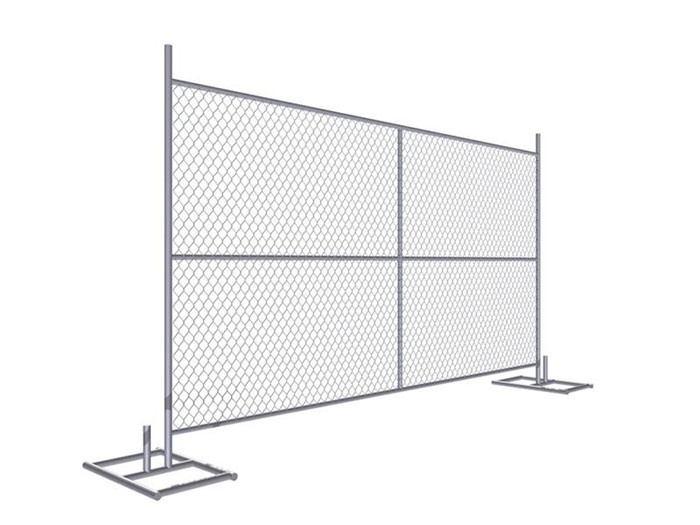

There are usually 2 types of chain link fence panel the end users liked, which is 6ft x 10ft and 6ft x 12ft.

1. 6ft x 10ft temporary chain link fence

For the 6ft x 10ft temporary chain link fence, the wire diameter is 9 gauge, 11 gauge and 11.5 gauge, 2'', 2-1/4'', 2-2/5"
mesh opening, frame outside diameter of 1-1/4" and 1-3/8'', plus the hot dipped galvanized surface treatment, its service
life can be up to 10 years.

The following chain link fence panel drawing is 11.5 Gauge, 2'' x 2'' mesh size and frame tube 1-3/8'' x 16 Gauge with solid rod steel feet 30-3/8'' x 18- 1/4'' x 9-13/16'' height.

2. 6ft x 12ft chain link fence panel drawing

The following chain link fence panel drawing is 11.5 Gauge, 2'' x 2'' mesh size and frame tube 1-3/8'' x 16 Gauge with solid rod steel feet 30-3/8'' x 18- 1/4'' x 9-13/16'' height.
