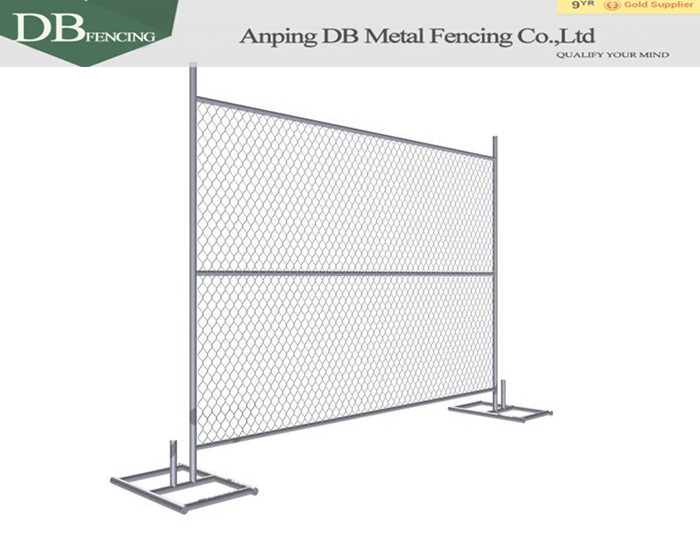

Hot Sale 6x10 Vinyl Coated Chain Link Fence Panels

Hot Sale 6'x10' Vinyl Coated Chain Link Fence Panels

Temporary Portable Chain Link Fence Panels- DB Fences Company are fastened together at the top with

saddle clamps to provide a free-standing fence.

Temporary chain link fence panels allows for both security and safety for many job-site applications. Our chain-link

panels come with all the required hardware, using high quality mild steel wire and galvanized tube as raw material.

The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven

ground or sloping sites.

In addition, temporary chain link fence with wire diameter of 9 gauge, 11 gauge and 11.5 gauge, 2'', 2-1/4'', 2-2/5"

mesh opening, frame outside diameter of 1-1/4" and 1-3/8'',plus the hot dipped galvanized surface treatment, its

service lifecan be up to 10 years.

6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft Temporary Chain Link Fence Panel
Design	North America,Australia & New Zealand
Made	China
1) Panel Specification
Panel Size	6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft
Frame	1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.
Chain Link Mesh Wire	9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional
Chain Link Mesh Size	2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.
Brace	Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D
Treatment	Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised
Standard (Standard panels include barbed wire as extra security)	AS 1725-2010 – Chain – Link Fabric Security Fences and Gates. AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use. AS 54687-2007 –  Temporary Fencing and Hoarding.
2) Steel Feet Specification
Size	750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base
Treatment	Hot dipped Galvanised;
3) Clamp Specification
Size	Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C);
Treatment	Hot Dipped Galvanised;

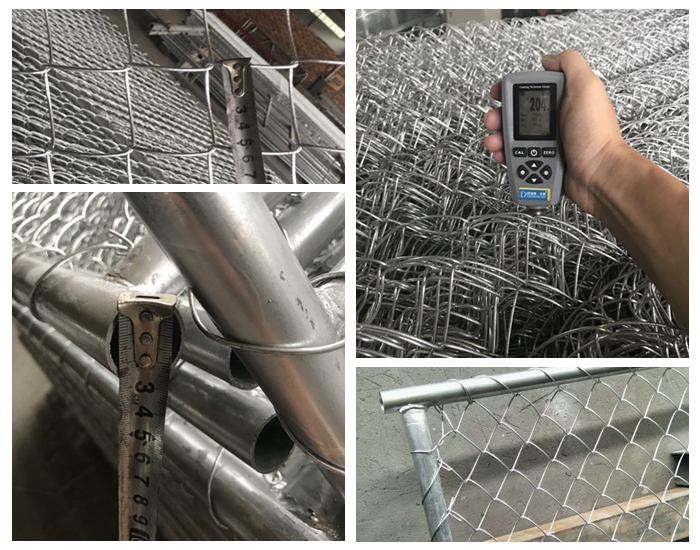

1. Temporary Chain Link Fence Quality Testing

 DB Chain Link Fence panels comply with ASTM A392-06 standards, having superior exposure and corrosion

resistance in an outdoor construction site.

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure.

This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not

be corroded even in hostile environment.

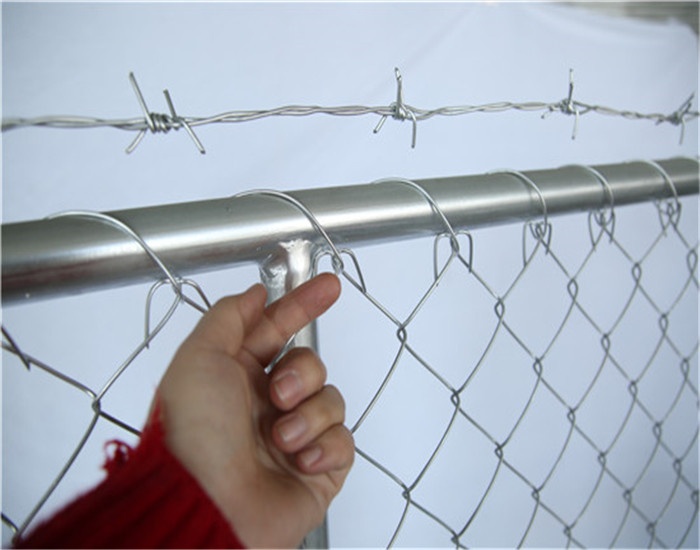

Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and sometimes wrapped

around the frame tube with tension bars and tension bands by hand in a rather tension way.

Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

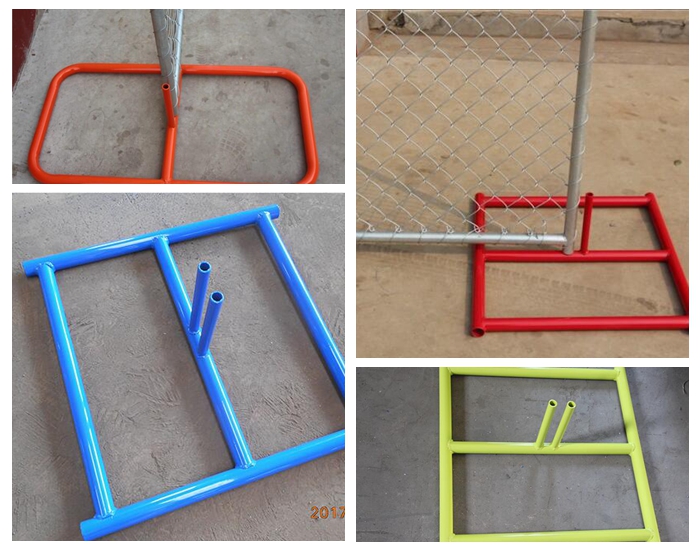

2. Temporary Chain Link Fence Stands Types

Our Temporary chain link Fence Panel stands (footings) are constructed from galvanized 1'' or 1-3/8" diameter

tubing and welded into an approximate 16" x 36" rounded rectangles. With two smaller diameter uprights

welded in place to accept the outer frame, these stands ensure stability and reliability.

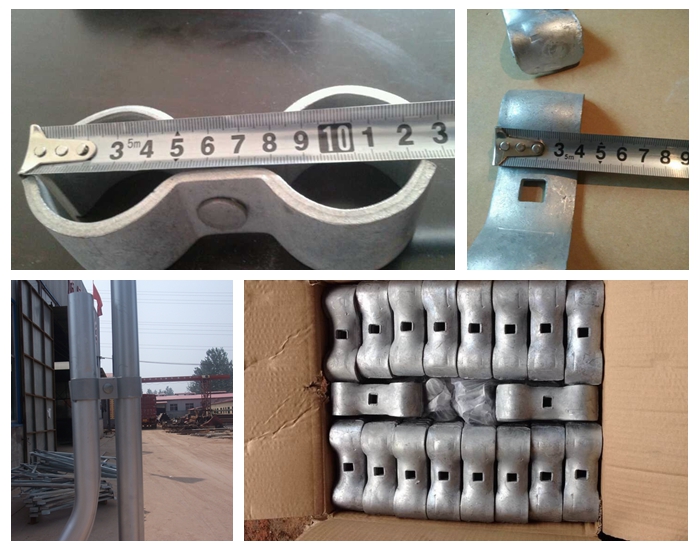

3. Temporary Chain Link Fence Saddle Clamp

Each panel is further reinforced with Galvanized saddle clamps, nuts, bolts used to connect two panels together.

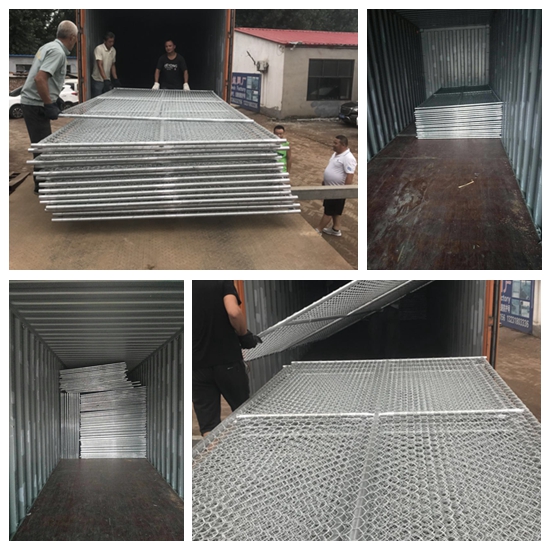

4. Temporary Chain Link Fence Loading

DB Chain link Panel Fencing is an excellent perimeter security solution , and easy to transport and secure

into place, above-ground panel fencing provides a sturdy and reliable fence for many job-site applications.

5. Temporary Chain Link Fence Applications

Some of the most common uses for temporary chain link panels include

• Commercial Construction Sites

• Housing Developments

• Highway projects

• Remodels & store front renovation

• Public Works Projects

• Post-Disaster Reconstruction
