Temporary Chain Link Fencing Applications

Temporary Chain Link Fencing Applications

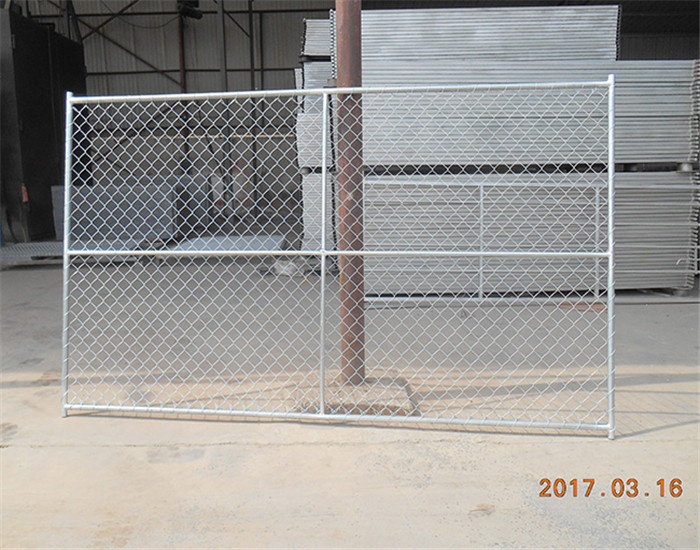

Temporary Portable Chain Link Fence Panels - DB Fences Company are fastened together at the top with saddle clamps to provide a free-standing fence.

Temporary chain link fence panels allows for both security and safety for many job-site applications. Our chain-link

panels come with all the required hardware, using high quality mild steel wire and galvanized tube as raw material.

The finished temporary chain link fencing is strong enough and durable for all site- specific requirement, either uneven

ground or sloping sites.

In addition, temporary chain link fence with wire diameter of 9 gauge, 11 gauge and 11.5 gauge, 2'', 2-1/4'', 2-2/5"

mesh opening, frame outside diameter of 1-1/4" and 1-3/8'',plus the hot dipped galvanized surface treatment, its service

life can be up to 10 years.

Our most popular size Height: 6’ and Length:12’ is for construction, municipalities, schools, events and

residential projects.

Height: 8’ and Length: 12’ for large construction and commercial projects that gives you that added level

of security and safety.

1. Temporary Chain Link Fence Quality Testing

DB Chain Link Fence panels comply with ASTM A392-06 standards, having superior exposure and corrosion

resistance in an outdoor construction site.

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure.

This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not

be corroded even in hostile environment.

Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and sometimes

wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

2. Temporary Chain Link Fence Stands Types

Our Temporary chain link Fence Panel stands (footings) are constructed from galvanized 1'' or 1-3/8"

diameter tubing and welded into an approximate 16" x 36" rounded rectangles. With two smaller diameter

uprights welded in place to accept the outer frame, these stands ensure stability and reliability.

3. Temporary Chain Link Fence Saddle Clamp

Each panel is further reinforced with Galvanized saddle clamps, nuts, bolts used to connect two panels together.

4. Temporary Chain Link Fence Loading

DB Chain link Panel Fencing is an excellent perimeter security solution , and easy to transport and

secure into place, above-ground panel fencing provides a sturdy and reliable fence for many job-site

applications.

5. Temporary Chain Link Fence Applications

Some of the most common uses for temporary chain link panels include:

• Commercial Construction Sites

• Housing Developments

• Highway projects

• Remodels & store front renovation

• Public Works Projects

• Post-Disaster Reconstruction

6. WHY US?

• Hand craft techniques for highest strength. Tie wires are tightly wrapped around the panel frame by tension bars and tension bands. This to ensuring both longevity and easy of loading.

• Three type of stable fence feet optional. Made of highly durable materials, each type of panel feet is strong and sturdy enough to keep your temporary fence panels upright. Designed to stack when moving from one project to the next.

• Strong anti-corrosion surface treatment. Treated with hot dipped galvanized to ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.

• One-stop supply system. All needed hardware are included in the bulk cargo.

• Reliable and professional advice. As a company integrating production and sales, we'd like to give our customers a friendly and reliable advice for picking up the most suitable one for your desired application.

• Customized size for your needs. We have a standard size temporary chain link fencing inventory. Beside, we accept customized orders of special panel length and height along with the pipe thickness and diameter.

•  7. FAQ

• 1. What Sizes of Fence Panels are Available?

   Our fencing panels come in a range of sizes that include 4’ and 6’ heights.

  2. What Type of Fence is the Best?

   It depends on your purpose for putting up a temp fence. The kinds of fencing we have available include chain link and wire. For example, if you are using a fence for a construction site to limit visibility, it will be different than a fence put up for crowd control purposes during a concert.

   3. How is the Quality?

   All materials are low carbon Q235. The high galvanized finish helps prevent rust. We promise no bad quality into the market which will hurt the customer and our future business.
