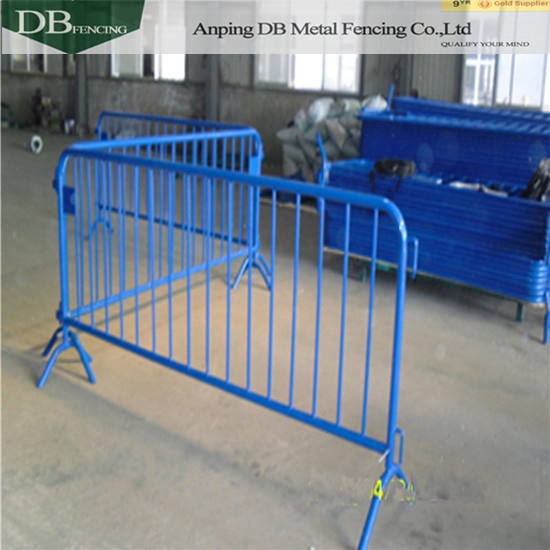

102"L x 40"H Crowd Control Barrier
The Crowd Control Barrier is a sturdy fence system, which can quickly control a crowd while vehicle and pedestrian traffic to block off restricted areas . This kind of steel barricade is made of high-quality carbon steel with hot dipped galvanized to resist weather for long, used in civil projects, work sites, events and festivals.
It is also called crowd control barrier, crowd barriers, queue barrier, steel barricade, crowd control fencing, crowd barriers for sale, metal barricades, crowd control barriers for sale, crowd control barricades, crowd control barriers near me, metal crowd control barriers, crowd barriers for sale near me, crowd fencing, queue control barriers, crowd barrier fencing, crowd barricade, control barriers, line dividers for crowds, metal crowd barriers, pedestrian control barriers, steel barricades for sale, portable steel barricade, crowd control fence panels, crowd control fencing for sale, crowd barrier fence, steel crowd control barriers, portable crowd control barriers, temporary crowd control barriers, metal barricade fence, queue line barrier, crowd control barriers manufacturer, cheap crowd control barriers, heavy duty crowd control barriers, crowd control panels, buy crowd control barriers, line dividers, pedestrian barricade, metal barricades for sale, crowd fencing for sale, metal barricade price, and event crowd control barriers.
1. Our crowd control barrier are available with the following overall dimensions
Item |
1.0-Meter |
2.0-Meter |
2.3-Meter |
2.5-Meter |
2.6-Meter |
Length |
39" (3.25 Ft.) |
79" (6.5 Ft.) |
7.5’ (2.3 m) |
98" (8 Ft.) |
8 ft 6 in (2.6m) |
Height |
43" (3.6 Ft.) |
43" (3.6 Ft.) |
43” (109.2 mm) |
43" (3.6 Ft.) |
43" (109.2mm) |
No. of Uprights |
6 |
14 |
16 |
18 |
22 |
Spacing Between Uprights |
4 3/8" |
4 3/8" |
4 3/8" |
4 3/8" |
4 3/8" |
Frame Thickness |
16 gauge |
16 gauge |
OD 14-gauge |
16 gauge |
OD 14-gauge |
Frame Dia. |
1.5" |
1.5 in. OD 16-gauge or 1/25 in. OD |
1.5 in. OD 16-gauge or 1/25 in. OD |
1.5" |
1.5 in. OD 16-gauge or 1/25 in. OD |
Upright Dia. |
.625" |
.625" |
.625" |
.625" |
.625" |
Other Size of Crowd Control Barrier
1) 6.79' x 2.72' Suits Frame with flexible supporting leg
2) 6.82' x 3.18' Suits Frame with fixed supporting leg
3) 6.82' x 3.44' Suits Frame with Plate base
4) 102"L x 40"H overall size
2. Main Frame of Crowd Conrol Barrier
The main frame is made of 1½ ” O.D. galvanized steel tubing, minimum 16 gauge.It is a single tubing
which is bent at right angles.Then the bent tubing is welded in saddle-cut welds with bottom horizontal tubing.
3. Crowd Control Barrier Base Options
There are several barrier base options available with the bridge base and flat base being the most popular by far.
Feet: Two (2) bolt on flat feet ½” x 2″ flat steel bar with 1¼” O.D. 14 galvanized stem, or
Two (2) bolt on bridge feet 1½” O.D. galvanized steel, 16 gauge, with ¼” O.D. galvanized stem.
Our barriers go through a hot dip galvanizing process so that our barriers remain rust-free.
FLAT BASE, U BASE, Bridge Base, Wheel Base
4. Male-Female Interlocking Ends
The crowd control barriers are connected together by interlocking device,called Male-Female interlocking ends.
It is a minimum ⅝” diameter rod welded through main frame at both ends. Male/Female connections
have enough clearance to allow for uneven ground when connected.
5. Finish of Crowd Control Barrier
The whole panel is hot dipped galvanized after welding as per the specs and drawing.
The barrier is polished after galvanizing so that no burrs sharp points to hurt the workers.
6. Packing & Loading of Crowd Control Barrier
