These are portable, durable crowd control systems that work great as temporary, easy to install crowd control solutions for protecting pedestrians and guiding drivers through crowded areas.


  • Product No.: CCB-009
  • Price: FOBtianjin USD 25-30/set

Details

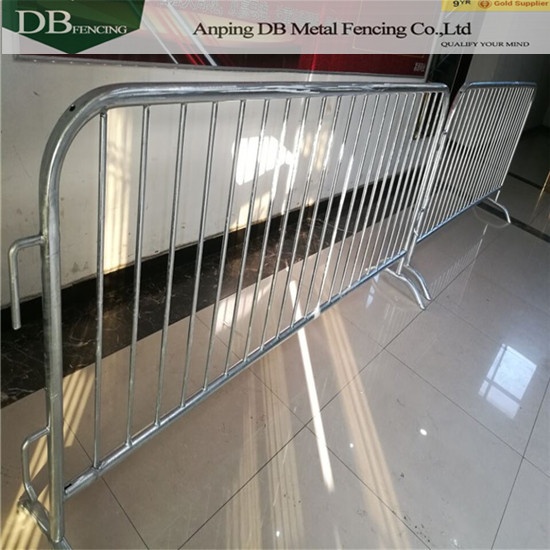

Crowd Control Barrier for Pedestrian Safety

The Crowd Control Barrier is a sturdy fence system, which can quickly control a crowd while vehicle and pedestrian traffic to block off restricted areas . This kind of steel barricade is made of high-quality carbon steel with hot dipped galvanized to resist weather for long, used in civil projects, work sites, events and festivals.

1. Our steel barrier or crowd control barriers are available with the following overall dimensions

 Item

1.0-Meter

2.0-Meter

2.3-Meter

2.5-Meter

2.6-Meter

Length

39" (3.25 Ft.)

79" (6.5 Ft.)

7.5’ (2.3 m)

98" (8 Ft.)

8 ft 6 in (2.6m)

Height

43" (3.6 Ft.)

43" (3.6 Ft.)

43” (109.2 mm)

43" (3.6 Ft.)

43 (109.2mm)

No. of Uprights

6

14

16

18

22

Spacing Between Uprights

4 3/8"

4 3/8"

4 3/8"

4 3/8"

4 3/8"

Frame Thickness

16 gauge

16 gauge

 OD 14-gauge

16 gauge

 OD 14-gauge

Frame Dia.

1.5"

1.5 in. OD 16-gauge or 1/25 in. OD

1.5 in. OD 16-gauge      or 1/25 in. OD

1.5"

1.5 in. OD 16-gauge or 1/25 in. OD

Upright Dia.

.625"

.625"

.625"

.625"

.625"

 Other Size of Crowd Control barrier

1) 6.79' x 2.72' Suits Frame with flexible supporting leg

2) 6.82' x 3.18' Suits Frame with fixed supporting leg

3) 6.82' x 3.44' Suits Frame with Plate base
4) 102"L x 40"H overall size


2. Main Frame of Crowd Control barrier

The main frame is made of 1½ ” O.D. galvanized steel tubing, minimum 16 gauge.It is a single tubing
which is bent at right angles.Then the bent tubing is welded in saddle-cut welds with bottom horizontal tubing.


3. Crowd Control Barrier Base Options

There are several barrier base options available with the bridge base and flat base being the most popular by far.

Feet: Two (2) bolt on flat feet ½” x 2″ flat steel bar with 1¼” O.D. 14 galvanized stem, or

Two (2) bolt on bridge feet 1½” O.D. galvanized steel, 16 gauge, with ¼” O.D. galvanized stem.

Our barriers go through a hot dip galvanizing process so that our barriers remain rust-free.

FLAT BASE, U BASE, Bridge Base, Wheel Base



4. Male-Female Interlocking Ends

The crowd control barriers are connected together by interlocking device,called Male-Female interlocking ends.
It is a minimum ⅝” diameter rod welded through main frame at both ends. Male/Female connections
have enough clearance to allow for uneven ground when connected.

5. Finish of Crowd Control Barrier

 The whole panel is hot dipped galvanized after welding as per the specs and drawing.

The barrier is polished after galvanizing so that no burrs sharp points to hurt the workers.

6. Packing & Loading of Crowd Control Barrier
