Security BRC Fence - Roll Top Mesh Fence

Security BRC Fence - Roll Top Mesh Fence

Galvanized & Powder Coated BRC Fence 1. Wire Dia.: 3.0 - 5.0 mm;
2. Mesh Size: 50 x 100, 50 x 150, 50 x 200, 75 x 200;
3. H: 1.8 - 5.0 m;
4. L: 2.3 - 3.0 m


  • Product No.: BRC14
  • Price: FOBtianjin USD 15-25/set

Details

Security BRC Fence - Roll Top Mesh Fence

BRC Fence is also called Roll Top Fence, Security Fence, Roll Top mesh fence,
and Bow Top Fencing which is a welded fence with spacing 50 x 150mm, making
the place safety, beautiful and no worries. The fence have a triangular roll on the top and
bottom of the fence making it strong and tough.  Hence, it also help prevents anyone from
easily climbing over the fence to reach the protected area. This wire mesh fencing is widely popular in
Malaysia, Australia, Singapore, South Korea, and other Southeast Asia Countries, to use on
commercial, residential, governmental and industrial properties.
Security BRC Fence - Roll Top Mesh Fence
a icon of brc fence product specifications

Hot dipped galvanized and PVC Coated BRC Fence

Wire Fence

Material

Low carbon steel wire

Welded Wire

3.0 mm ~ 6.0 mm

Opening(mm)

50 x 100, 50 120, 50 150, 50 200, 75  150, 75 200

Height

900 mm, 1200 mm, 1500 mm, 1800 mm, 2400 mm, 3015 mm, 5000 mm, 5970 mm

Width

2000 mm, 2500 mm, 3000 mm

Panel Type

With or without curves are both available as request.

Fence Post

Square post

50 x 50 mm, 60 x 60 mm, 40 x 60 mm

Round Post

Φ48 mm, Φ60 mm

Peach Post

 50 mm x 70 mm, 70 mm x 100mm

Post thickness

1.2 mm to 2.5 mm

Post Height

0.8 m ~ 3.5 m

Post Base

With or without the base flange are both available.

Post Fittings

Post clips with Bolts and nuts, post rain cap,

Fence Finishing

1. Hot-dip Galvanized

 2. PVC powder spraying coated or PVC powder dipping coated

 3. Galvanized + PVC powder spraying/dipping coated

 Packing

 1) With pallet; 2) Bulk in container.

The customization is also available.

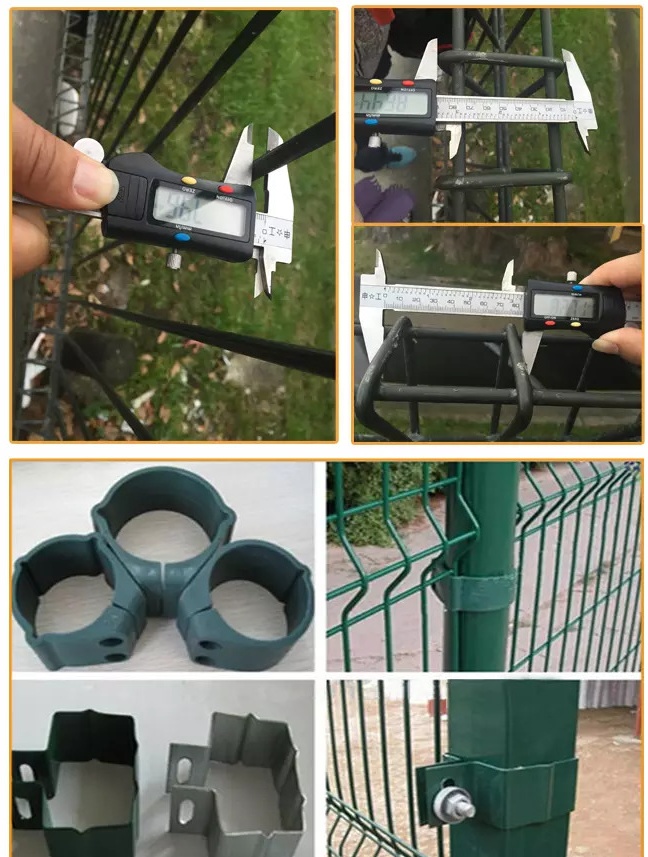

 powder coated black brc fence size testing

 Production Process of BRC Fencing

STEP 01

First weld low carbon steel wire to design dimension panel, then need special bending
machine to make rolling top and bottom.

STEP 02

Then a professional bending machine is required to make roll tops in both the top and bottom.

STEP 03

The fence is designed to have a triangular roll on the top and bottom of the fence make it
more strong and tough.

triangle design of galvanized brc fence
a icon of brc fence application

Applications of High Security BRC Fencing

BRC Fencing, also called roll top fence, is very strong, not easy to bend. In addition, it helps
 prevent anyone from easily climbing over the fence to the protected area. It is widely used by
reputable real estate developers, industrial factories, engineering companies, farm owners and
 government departments. It also applies in the following ways.Army Camp,GatedSecurity,Prison,
Industrial Factory

Play Ground,Stadium,Housing Estate,Detention Centre,

Carpark,Public Hall

brc fence applications

 a icon of brc fence advantages

Benefits of BRC Fencing

High quality galvanized coating allows roll top fence users no worries, because it is different from
many other low-carbon steel fences. Hot dip galvanizing is not easy to rust in a short time. Therefore,
low maintenance or free maintenance for a long time to give users a good product experience

Suitable where safety is a consideration

Aesthetic appearance

High rigidity

Excellent through vision

Wide range of colour options

Available as a complete system

a icon of brc fence packing and shipping

1. Packed in PVC film;
2. Accessories packed in small plastic bag and carton box;
3. Packed in steel pallet;
4. Also can be as your request.
5. Shipping Time: Within 15 days after receiving the deposit.

brc fence packing and loading into container

a icon of brc fence features

Features of BRC Fence

Not get rusted easily in a short period of time

Aesthetic appearance

5.0 mm wire makes High rigidity and better safety

Excellent through vision

Wide range of colour options

No sharp or raw edges

Compliant with BS 1722 Pt. 9

Security Fixings

Welded Construction

Hot Dip Galvanised to BS EN ISO 1461

Polyester Powder Coated option
