Beautiful roll top fencing panels appearance have a good vision

Beautiful roll top fencing panels appearance have a good vision

1.Material: Low Carbon Steel Q235;
2.Wire Diam.: 3.0-5.0mm;
3.Mesh Size: 50 x 100, 50 x 150, 50 x 200, 75 x 200;
4.Height: 1.8m, 2.0m, 2.4m, 3.0m, 5.0m;
5.Length: 2.3m, 2.5m, 3.0m;
6.Finish: Galvanized before powder coated.

  • Product No.: BRC13
  • Price: FOBtianjin USD 15-25/set


Beautiful roll top fencing panels appearance have a good vision

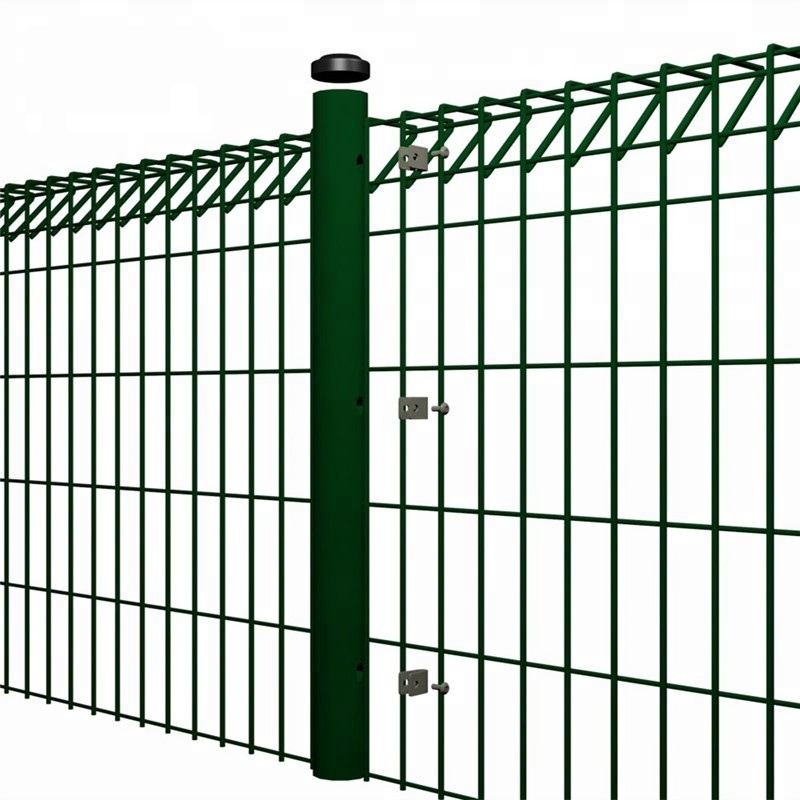

BRC Fence is also called Roll Top Fence, Security Fence, Roll Top mesh fence, and
Bow Top Fencing which is a welded mesh panel with spacing 50x150mm, making the place
safety, beautiful and no worries. The fence have a triangular roll on the top and bottom of the
fence making it strong and tough.  Hence, it also help prevents anyone from easily climbing
over the fence to reach the protected area. This Fence is widely popular in Malaysia, Australia,
Singapore, South Korea, and other Southeast Asia Countries, to use on commercial, residential,
governmental and industrial properties.


Specification of BRC Fence

 Panels of BRC Fence

Panel width

2500 mm, 3000 mm

Panel height

900, 1200, 1500, 1800 mm, 2400mm, 3015mm, 5000mm, 5970mm

wire diameter

From 3.0mm-6.0mm, especially 5.0mm standard

Mesh size(mm)

50 x 100, 50 x 150, 50 x 200, 75 x 200, 75 x 300, 100 x 200, 100 x 300


low carbon steel wire Q195, Q235

Surface treatment

Hot dipped galvanized (505 g/m2).


Available any RAL.

Post of BRC Fence: Post centers at approximately 3.025m. Posts are polyester coated
 with a galvanized substrate.

Post Size: square steel pipe(40x60mm.50x50mm, 60x60mm), round steel pipe(48mm).

Thickness: 1.5, 2.0, 2.5 mm.

Height: Additional 500-700mm based on the panel height.


Surface Finish of BRC Fence

1. Coating

Hot dipped galvanized (505 g/m2).

Galvanized (zinc coating: 40–60 g/m2) then PVC/PE coated.

Electro galvanized (zinc coating: 40–60 g/m2) then polyester powder coating

Posts are polyester coated with a galvanized substrate in accordance with Euro norm 10147.

2. Colors

Standard colors are Green RAL6005 and Black RAL9005.

Other colors are available on request.

Applications of BRC Fencing

BRC Fencing, also called roll top fence, is very strong, not easy to bend. In addition, it helps
 prevent anyone from easily climbing over the fence to the protected area. It is widely used by
reputable real estate developers, industrial factories, engineering companies, farm owners and
 government departments. It also applies in the following ways.Army Camp,GatedSecurity,Prison,
Industrial Factory

Play Ground,Stadium,Housing Estate,Detention Centre,

Carpark,Public Hall


Benefits of BRC Fencing

High quality galvanized coating allows roll top fence users no worries, because it is different from
many other low-carbon steel fences. Hot dip galvanizing is not easy to rust in a short time. Therefore,
low maintenance or free maintenance for a long time to give users a good product experience

Suitable where safety is a consideration

Aesthetic appearance

High rigidity

Excellent through vision

Wide range of colour options

Available as a complete system


1. Packed in PVC film;
2. Accessories packed in small plastic bag and carton box;
3. Packed in steel pallet;
4. Also can be as your request.
5. Shipping Time: Within 15 days after receiving the deposit.

Features of BRC Fence

Not get rusted easily in a short period of time

Aesthetic appearance

5.0mm wire makes High rigidity and better safety

Excellent through vision

Wide range of colour options

No sharp or raw edges

Compliant with BS 1722 Pt. 9

Security Fixings

Welded Construction

Hot Dip Galvanised to BS EN ISO 1461

Polyester Powder Coated option
