BRC Fence widely popular in Malaysia, Australia, Singapore, South Korea

BRC Fence widely popular in Malaysia, Australia, Singapore, South Korea

1.Material: Low Carbon Steel Q235;
2.Wire Diam.: 3.0-5.0mm;
3.Mesh Size: 50 x 100, 50 x 150, 50 x 200, 75 x 200;
4.Height: 1.8m, 2.0m, 2.4m, 3.0m, 5.0m;
5.Length: 2.3m, 2.5m, 3.0m;
6.Finish: Galvanized before powder coated.


  • Product No.: BRC010
  • Price: FOBtianjin USD 15-20/set

Details

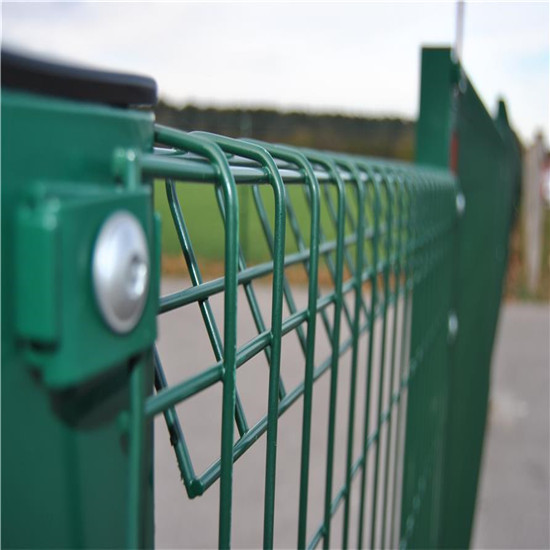

BRC Fence widely popular in Malaysia, Australia, Singapore, South Korea

BRC Fence is also called Roll Top Fence, Security Fence, Roll Top mesh fence, and
Bow Top Fencing which is a welded mesh panel with spacing 50x150mm, making the
place safety, beautiful and no worries. The fence have a triangular roll on the top and
bottom of the fence making it strong and tough.  Hence, it also help prevents anyone
from easily climbing over the fence to reach the protected area. This Fence is widely
popular in Malaysia, Australia, Singapore, South Korea, and other Southeast Asia Countries,
to use on commercial, residential, governmental and industrial properties.


1. Specification
 of BRC Fence

  • Panels of BRC Fence

Panel width

2500 mm, 3000 mm

Panel height

900, 1200, 1500, 1800 mm, 2400mm, 3015mm, 5000mm, 5970mm

wire diameter

From 3.0mm-6.0mm, especially 5.0mm standard

Mesh size(mm)

50 x 100, 50 x 150, 50 x 200, 75 x 200, 75 x 300, 100 x 200, 100 x 300

Material:

low carbon steel wire Q195, Q235

Surface treatment

Hot dipped galvanized (505 g/m2).

Color

Available any RAL

  • Post of BRC Fence: Post centers at approximately 3.025m. Posts are polyester coated with a galvanized substrate.

Post Size: square steel pipe(40x60mm.50x50mm, 60x60mm), round steel pipe(48mm).

Thickness: 1.5, 2.0, 2.5 mm.

Height: Additional 500-700mm based on the panel height.

2. Surface Finish of BRC Fence

1) Coating

Hot dipped galvanized (505 g/m2).

Galvanized (zinc coating: 40–60 g/m2) then PVC/PE coated.

Electro galvanized (zinc coating: 40–60 g/m2) then polyester powder coating

Posts are polyester coated with a galvanized substrate in accordance with Euro norm 10147.

2) Colors

Standard colors are Green RAL6005 and Black RAL9005.

Other colors are available on request.

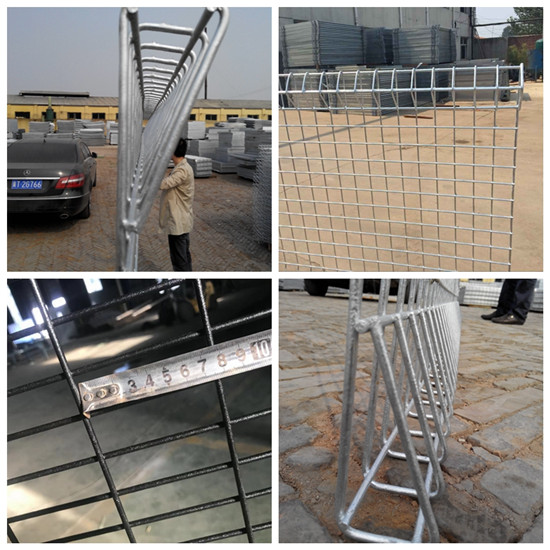

3. Quality Testing of BRC Fence

EN 10223-4: Steel Wire And Wire Products For Fencing And Netting - Part 4: Steel Wire Welded Mesh Fencing

EN 10218-2: Steel Wire And Wire Products - General - Part 2: Wire Dimensions And Tolerances

EN 10244-2: Steel Wire And Wire Products - Non-ferrous Metallic Coatings On Steel Wire - Part 2: Zinc Or Zinc Alloy Coatings

EN 10245-4: Steel Wire And Wire Products - Organic Coatings On Steel Wire - Part 4: Polyester Coated Wire

The maximum wire diameter tolerance is 0.05mm, and the mesh size is 0.1-0.5mm, the diagonal is within 2.0mm;

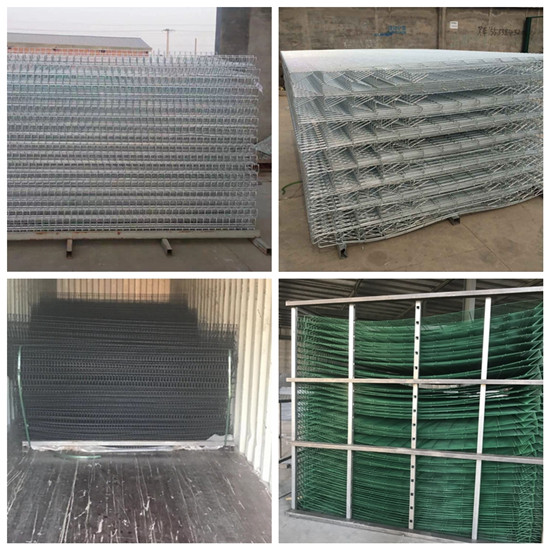

4. Packing & Loading of BRC Fence

1. Packed in PVC film;
2. Accessories packed in small plastic bag and carton box;
3. Packed in steel pallet;
4. Also can be as your request.

5. Shipping Time: Within 15 days after receiving the deposit.




Features of BRC Fence

Not get rusted easily in a short period of time

Aesthetic appearance

5.0mm wire makes High rigidity and better safety

Excellent through vision

Wide range of colour options

No sharp or raw edges

Compliant with BS 1722 Pt. 9

Security Fixings

Welded Construction

Hot Dip Galvanised to BS EN ISO 1461

Polyester Powder Coated option
