BRC Fencing Suitable Canada where safety is a consideration

1.Material: Low Carbon Steel Q235;
2.Wire Diam.: 3.0-5.0mm;
3.Mesh Size: 50 x 100, 50 x 150, 50 x 200, 75 x 200;
4.Height: 1.8m, 2.0m, 2.4m, 3.0m, 5.0m;
5.Length: 2.3m, 2.5m, 3.0m;
6.Finish: Galvanized before powder coated.

Product No.: BRC03
Price: FOBtianjin USD 15-25/set

Online Inquiry Email Us

Details

BRC Fencing Suitable Canada where safety is a consideration

BRC Fencingis a Special welded panel, made of high strength steel. It can be hot dipped
galvanized material, which is better durability. For security reasons, it applies to Play Ground,
Stadium, Housing Estate, and so on. BRC Fencing protects some public places. The DB Fencing
ensures high quality and good after-sales service.

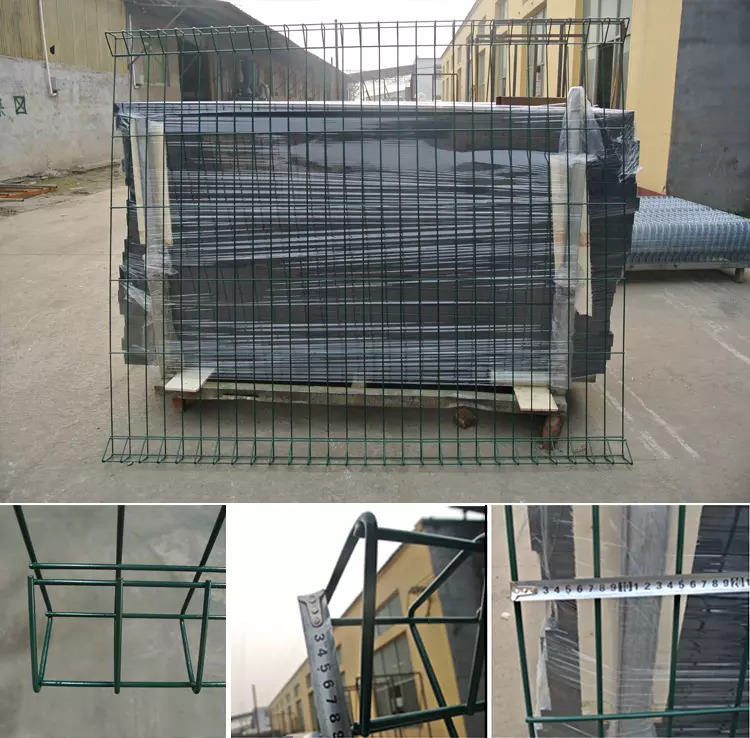

Detailed description of BRC Fencing

The width of the panel is 1000mm to 3000mm, and the height 900mm to 2400mm. The diameter
of steel wire is 3.0mm to 6.0mm. The mesh size is 50 x 100, 50 x 150, 50 x 200, 75 x 200, 75 x 300,
100 x 200, 100 x 300mm. You can choose your own customized color. Panel material is low carbon
steel wire Q195, Q235. The surface treatment is hot dipped galvanized and powder coated. Therefore,
the panel has no sharp or raw edges, and the roller roof is suitable for safety applications.

Panel width	From 1000mm-3000mm
Panel height	From 900mm-2400mm
wire diameter	From 3.0mm-6.0mm
Mesh size(mm)	50 * 100, 50 * 150, 50 * 200, 75 * 200, 75 * 300, 100 * 200, 100 * 300
Material:	low carbon steel wire Q195, Q235
Surface treatment	Hot dipped galvanized (505 g/m2).
Color	available any RAL.

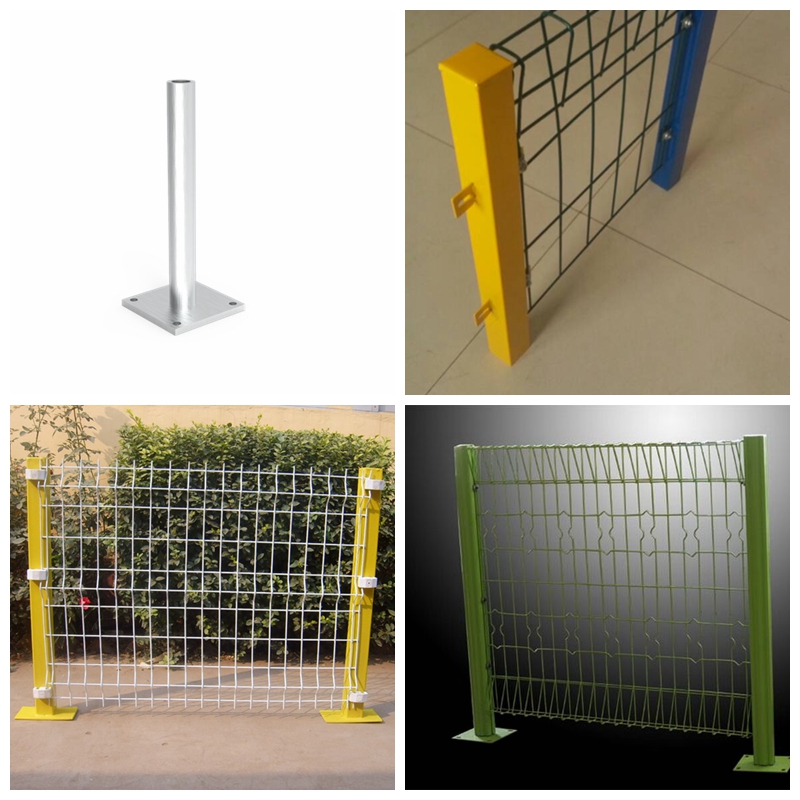

Detailed description of post and clamp system

BRC Fencing contains a post and clamp system, which is divided into square pipe and round pipe.
The thickness of the column is 1.5mm, 2.0mm and 2.5mm. The surface treatment of the product is
electric galvanized and hot dip galvanized with polyester powder coating, effectively prevent the
rust of the product.

Round post diameter	48, 60 mm
Square post size	50 * 50, 60 * 60 mm

Production Process of BRC Fencing

STEP 01

First weld low carbon steel wire to design dimension panel, then need special bending
machine to make rolling top and bottom.

STEP 02

Then a professional bending machine is required to make roll tops in both the top and bottom.

STEP 03

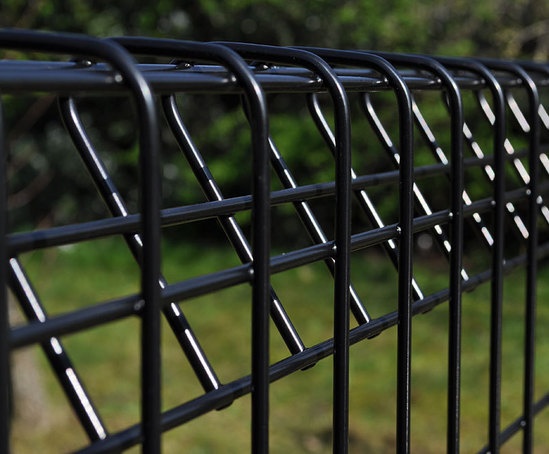

The fence is designed to have a triangular roll on the top and bottom of the fence make it
more strong and tough.

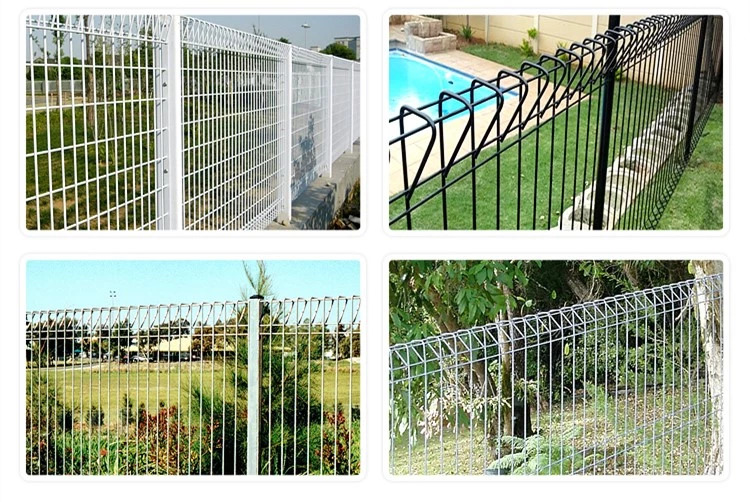

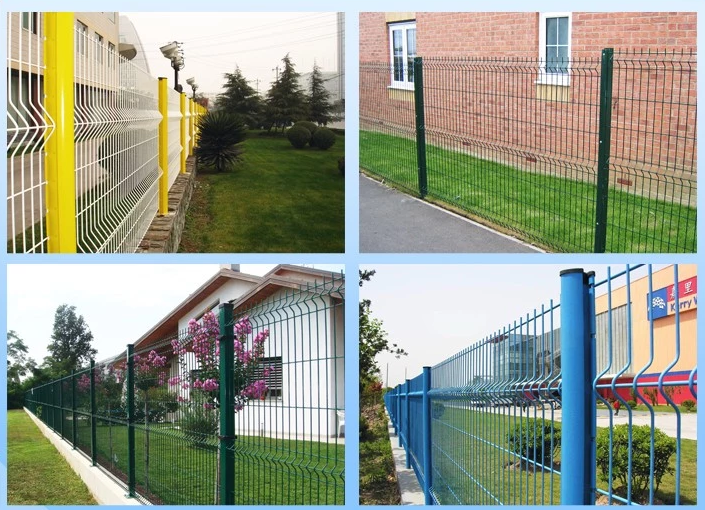

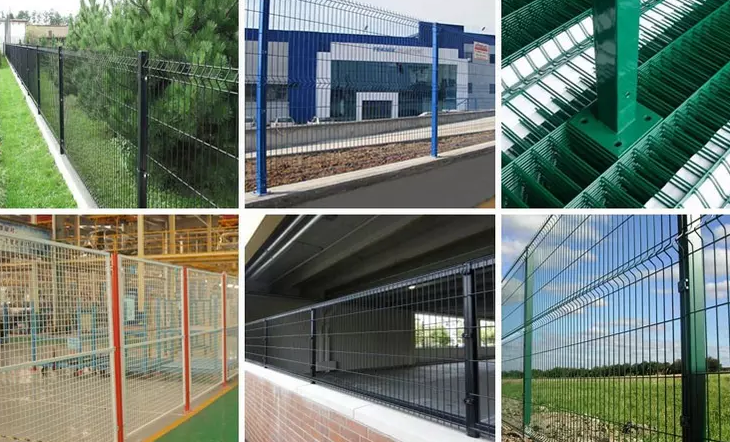

Applications of BRC Fencing

BRC Fencing, also called roll top fence, is very strong, not easy to bend. In addition, it helps
prevent anyone from easily climbing over the fence to the protected area. It is widely used by
reputable real estate developers, industrial factories, engineering companies, farm owners and
government departments. It also applies in the following ways.

Army Camp

Gated Security

Prison

Industrial Factory

Play Ground

Stadium

Housing Estate

Detention Centre

Carpark

Public Hall

Benefits of BRC Fencing

High quality galvanized coating allows roll top fence users no worries, because it is different from
many other low-carbon steel fences. Hot dip galvanizing is not easy to rust in a short time. Therefore,
low maintenance or free maintenance for a long time to give users a good product experience

Suitable where safety is a consideration

Aesthetic appearance

High rigidity

Excellent through vision

Wide range of colour options

Available as a complete system

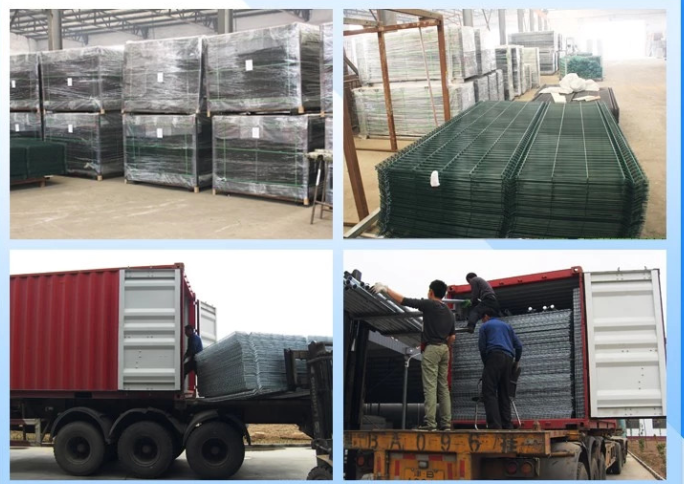

1. Packed in PVC film;
2. Accessories packed in small plastic bag and carton box;
3. Packed in steel pallet;
4. Also can be as your request.
5. Shipping Time: Within 15 days after receiving the deposit.
