Crowd Control Barrier

Crowd Control Barrier

Top 5 crowd control barrier factory in Anping,China. Promised the good quality and better price,email: info@dbfencestore.com


  • Product No.: CCB-001
  • Price: FOBtianjin USD 22-25/set

Details

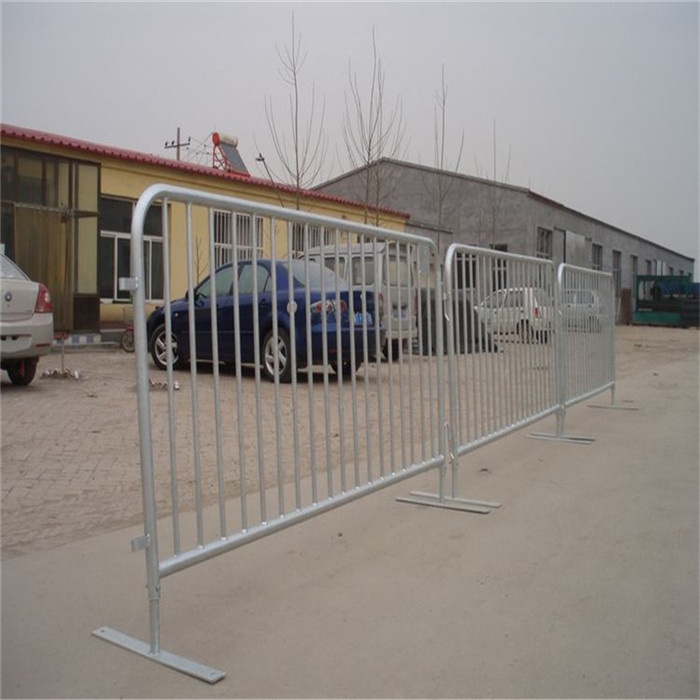

 Crowd control barrier

Crowd Control Barriers have been designed for use at events that need to accommodate for a larger crowd.

two control barrier connect in factory

1. Crowd Control Barrier, when linked together, act as both a physical and psychological restraint, creating the sense of a dividing "solid wall." They are designed to physically discourage transgression and encourage directional order and crowd control. Our steel barricades are available in three lengths with the following overall dimensions:

 Item

1-Meter

2-Meter

2.5-Meter

Length

39" (3.25 Ft.)

79" (6.5 Ft.)

98" (8 Ft.)

Height

43" (3.6 Ft.)

43" (3.6 Ft.)

43" (3.6 Ft.)

Weight

29 lb. (with Bridge Base)

44 lb. (with Bridge Base)

54 lb. (with Bridge Base)

Number of Uprights

6

14

18

Spacing Between Uprights

4 3/8"

4 3/8"

4 3/8"

Frame Thickness

16 gauge

16 gauge

16 gauge

Frame Diameter

1.5"

1.5"

1.5"

Upright Diameter

.625"

.625"

.625"

2. Bases of crowd control barrier

Traditional bridge bases are designed so that each pedestrian barriers has one large base and one small base, located at the extreme ends of the frame. This allows for four points of the base to remain in constant contact with the ground, as well as accommodating placement of steel barriers in both a straight line at various angles.

There are four types of bases:

· Bridge Base

· "U" Base

· Flat Base

· Fixed Leg

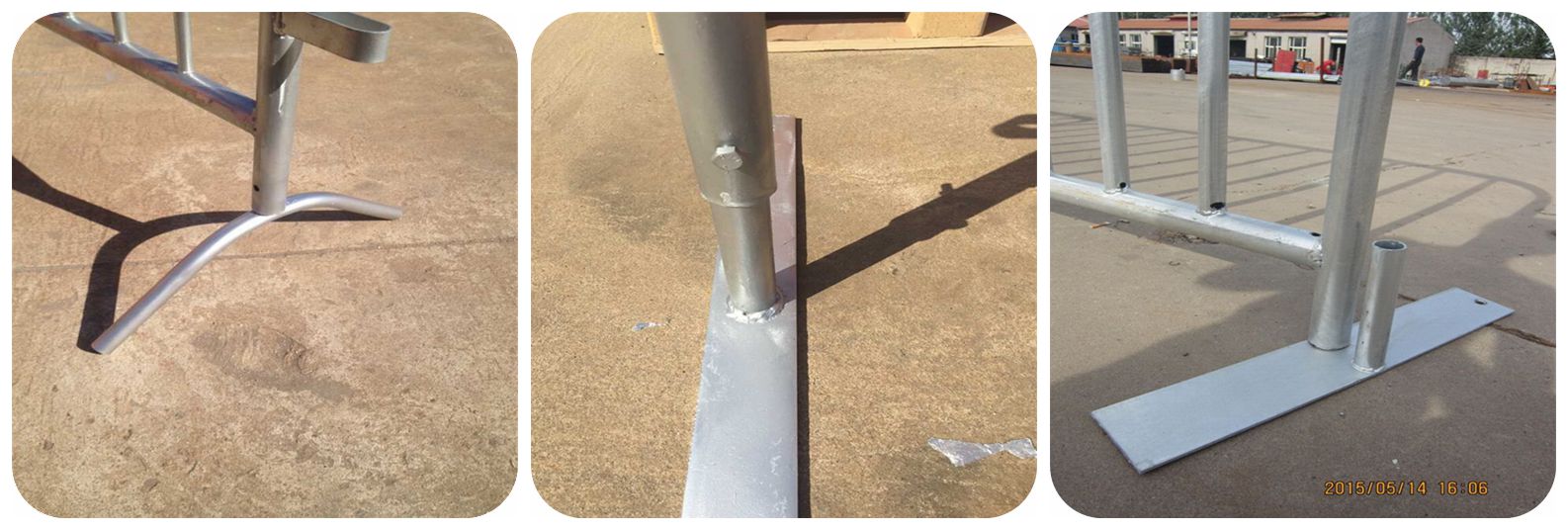

crowd control barriercross base, U base, Bridge base
crowd barrier flat base

Their flat feet feature (to prevent trip hazard) provides a quick and efficient solution in any situation where you need to divert patrons and the general public away from a designated area.

They are fully Hot Dipped Galvanized after welding. Each barrier is completely dipped in a Gal bath after manufacture. This is the best galvanizing process available. Not Electro Gal, Not In-Line Gal, Not Pre Gal, Not Gal Paint, Not DuraGal, but genuine Hot Dipped Galvanizing after welding. This means they will be far more weather resistent and durable, and will last much longer than other Crowd Barriers on the market.

3. Hooks of crowd control barrier

Crowd Control Barriers are designed to be linked together via male hooks. A 30 degree bend in the male hook creates a positive interlock which prevents it from becoming disengaged. Each male hook is a 5/8" steel rod, welded to the frame on both ends. Each female receptor is a 3/16" by 1.5" steel plate welded to the frame.

Three-Way Interlocking Barriers

The style and location of the hooks and receptors is designed to accommodate a three-way interlock set-up, in which three steel barriers are connected at one point (one at a right angle, while the other two are side-by-side in a straight line. )This counter-bases the continuous line, and enables the creation of a reinforced double line (running parallel to the original line, supported by counter braces).

crowd barrier hooks interlocking

4. Crowd Control Barriers Processing:

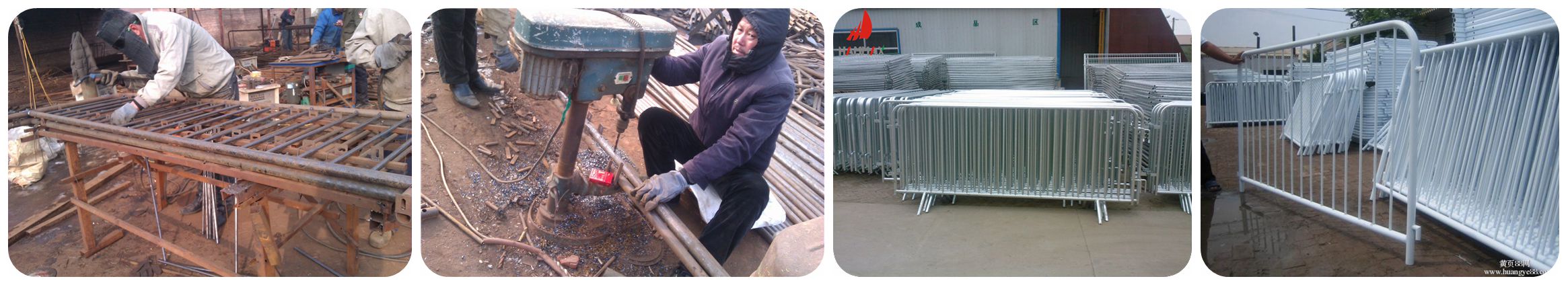

crowd control barrier processing

5. Crowd Control Barriers Quality Control:

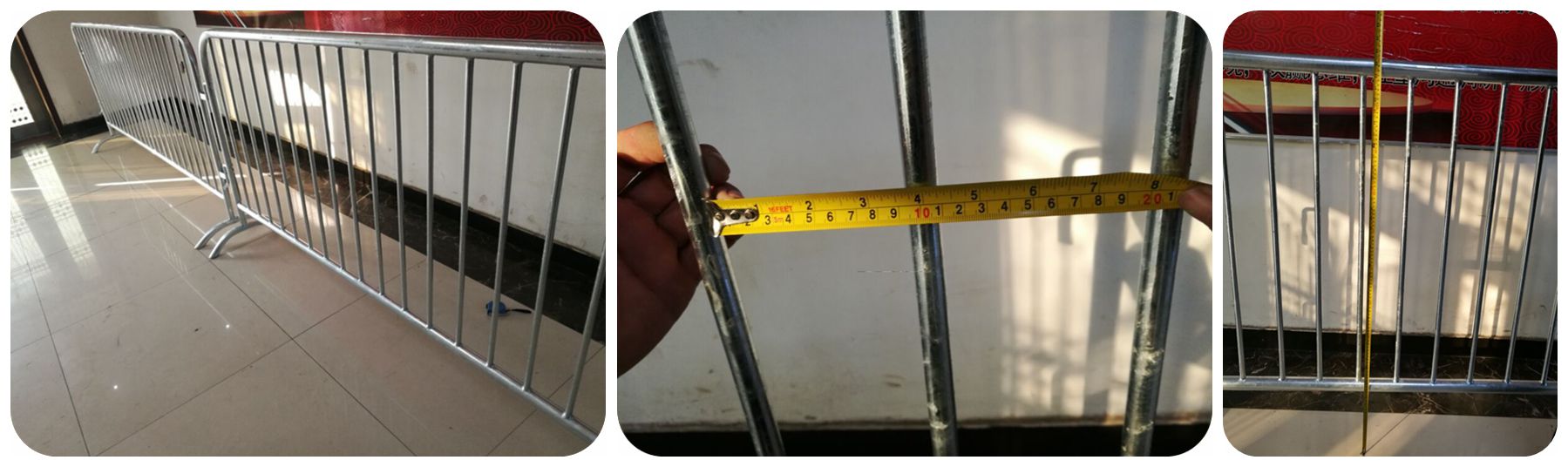

steel barricades size testing

6. Loading And Packing:

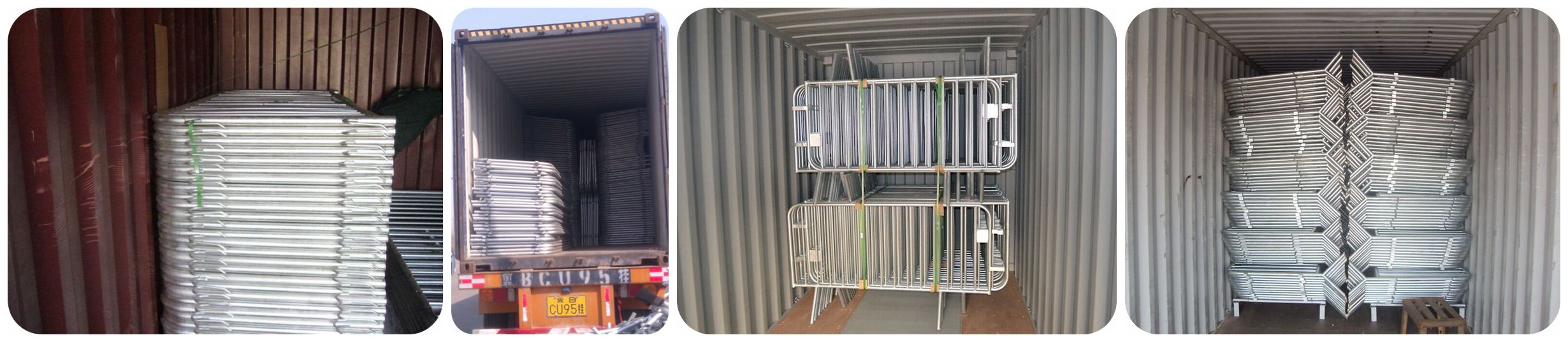

crowd control barrier loading in container

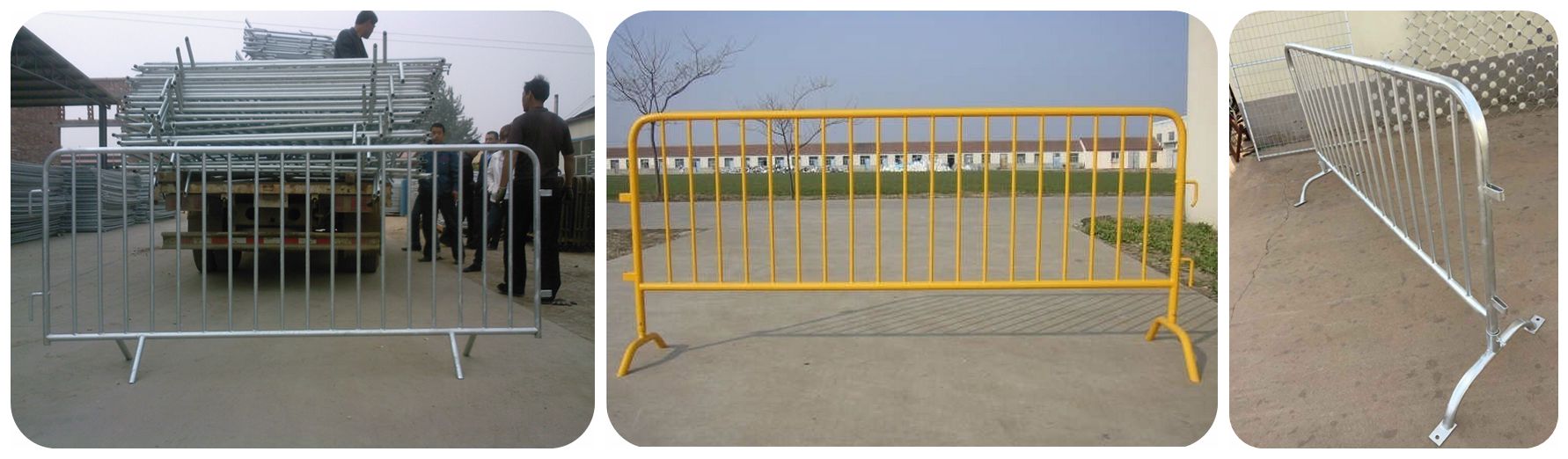

7. Gallery of Crowd Control Barriers Application:

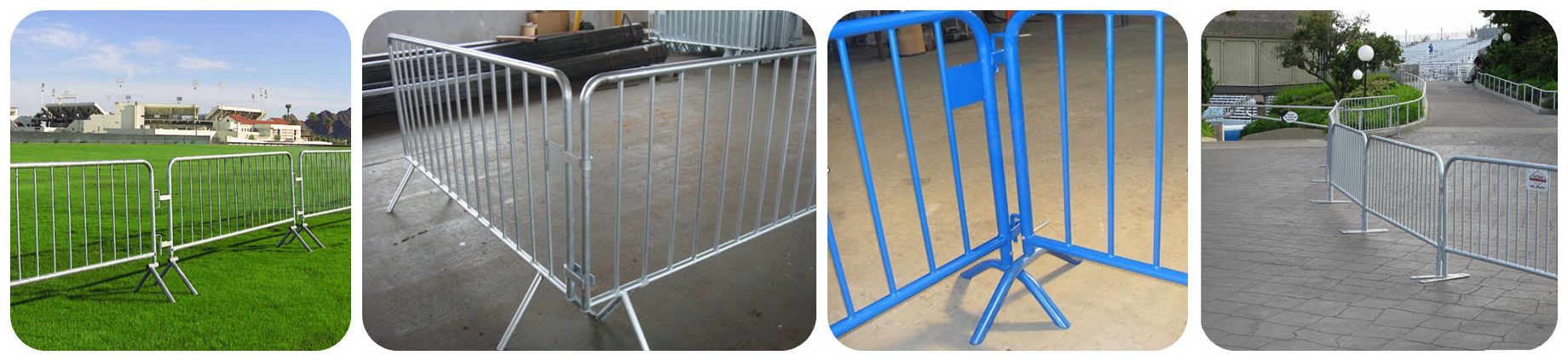

crowd control barrier installed on the construction site
