Factors To Consider When Doing Temporary Fencing

Factors To Consider When Doing Temporary Fencing

In Australia and New Zealand, it is a mandatory requirement for the temporary fence construction site. Usually we use 2.1m height and 2.4m length panel, concrete filled base to fix the two panels, and steel clamps to connect two temp fence panel.


  • Product No.: TF---1910
  • Price: FOBtianjin USD 20-24/set

Details

Factors To Consider When Doing Temporary Fencing

All of our temporary fencing is made up of galvanised ‘anti climb’ weld mesh panels, color concrete filled bases and clamps.

Being in near new condition, our temporary fencing will provide a professional, tidy and safe appearance to your work site.

In our factory, there are 10 welding platform, which can supply large production. And 1 plastic feet machine, so many suppliers in Anping, China buy it from us. So keep costs low, ensure quality and standards are met, and sell high quality temp fence products at very competitive prices. We are so proud of our products, especially the plastic base we produce by ourselves, UV factor is so important for the feet to avoid the fade color in short times, we can guarantee 3-5 years no color fading when add BASF UV Material.

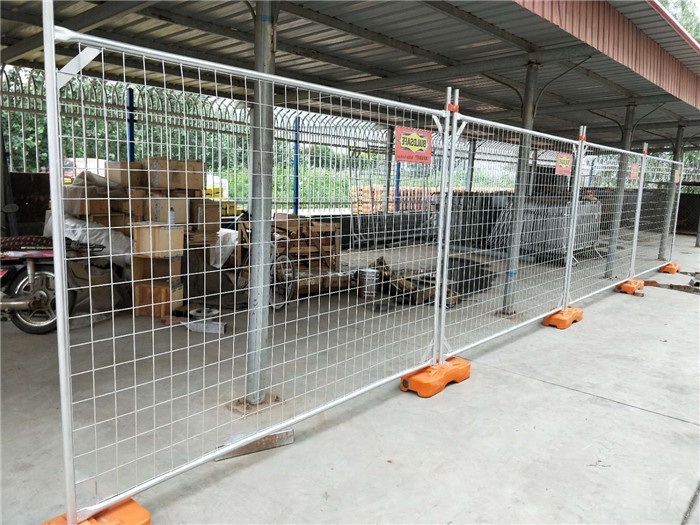

.galvanized temporary fence installed with feet and clamps

1. Temporary Fence Panel Specs

We provide economy, standard and heavy duty fence options. As the processing of temp fence panel, there are two ways. one is pre-galvanized wire and frame pipe welded together strongly on the front and back sides, then sprayed painting zinc silver color.  The another way is black material raw wire and black pipe welded together for both front and behind sides, then hot dipped galvanized for the whole temp fence panel, which plates amount is more than 42 Microns ( AS4687-2007 Standard).
Also some other special customers asks the middle vertical brace to reinforce the wire mesh panel and frame pipe to anti crush and wind.

  • 25NB (32mm OD pipe x 2.0mm wall thick) Panel 2.4m long x 2.1m high galvanised with 60x150x4mm infilled mesh

  • 40NB (48mm OD pipe x 2.0mm wall thick) Panel 2.4m long x 2.1m high galvanised with 60x150x4mm infilled mesh

  • 25NB (32mm OD pipe x 2.0mm wall thick) Panel 2.5m long x 2.0m high galvanised with 60x150x4mm infilled mesh

  • 25NB (32mm OD pipe x 1.35mm wall thick) Panel 2.4m long x 2.1m high galvanised with 60x150x3mm infilled mesh

  • 25NB (32mm OD pipe x 1.2mm wall thick) Panel 2.4m long x 2.1m high galvanised with 60x150x3.5mm infilled mesh

  • 25NB (32mm OD pipe x 1.5mm wall thick) Panel 2.4m long x 2.1m high galvanised with 60x150x3mm infilled mesh

At first stage before 2013, most of Australian wholesalers sell hot dipped galvanized temporary fence to the local customers, and repair some bad rusting panels by painting. Then one of them find this conditiones, choose the pre-galvanized way and painting the whole panel, which seems the same quality as hot dipped galvanzied one, but installed some monthes later, all panels welding point beaigns to get rust.
Above all, we suugest the strong and last-long temporary fence panels, maybe it higher prices, but reasonable and values its good quality.

temporary fence panel, feet, clamps and gate installed drawing

2. Temporary Fence Quality Testing

temporary fence galvanized amount
temporary fence panel wire diameter 4.0mm
temporary fence mesh size testing

1. Temporary Fence Galvanized. 59.8 Um

2. Temporary Fence Wire Dia.4.0mm

3. Temporary Fence Mesh 150mm

temporary fence panel welding process
Hot dipped galvanized temporary fence panel in workshop
 temporary fence panel flattened horizontal rail  fully welded with vertical pipe

4. Temporary Fence Welding Process

5. Hot Dipped Galvanized Temp Fence Panel

6. Full Welding Point

 orange color temp fence panel wire and frame welding
 Powder Coated Orange Color Temp Fence Panel
 Green Temp Fence Powder Coated

7. Orange Temp Fence Panel Flatten Pipe

 8. Powder Coated Orange Fence Panel

 9. Green Temp Fence Powder Coated

3. Temporary Fence Plastic Base

Temporary fencing is commonly equipped with plastic bases/feet. Our temporary fencing feet comes with a 5 year UV and anti-aging guarantee to accommodate to the Australian climate. The qualified plastic coating contribute to fade-proof performance to maximize health and eliminate safety risks.

  • Temp fence feet - High quality anti-uv formula, UV absorbent 2002, UV uv-p, UV absorbent uv-531 as well BHT2, 6-di-buty1-4-methylphenol yellow UV;

  • Temporary fence feet material: Adopt bright and pure master color granules, high-density polyethylene No. 5502. The temp fence feet has good mechanical properties, the tensile strength is more than 50mpa, the tensile strength is 500KG/cm. Impact resistance more than 50J/m, bending elasticity of 24000KG/cm, load winding temperature more than 100℃, hardness, excellent aging.

  • Temporary fence Base weight can be customized according to customer requirements for weight 0.9,1.0,1.1,1.5KG to 1.2KG and a variety of 1.5KG weight.

  • Temporary fence feet dimensions are generally 600mmX230mmX150mm-- diameter -mm mounting 32/38/40/42/48/50mm long tubes (various diameter details).

Temporary Fence Base Types

temporary fence feet filled with water
Temporary Pool Fence Base
Temporary Fence Injection mould Base

1. Temporary Fence Feet Filled With Water

2. Temporary Swimming Pool Fence Base

3. Temporary Fence Injection Mould Base

Temporary Fence Blocks Filled With ConcreteTypes 1
Temporary Fence Blocks Filled With ConcreteTypes 2
Temporary Fence Blocks Color Choices

4. Temporary Fence Blocks Filled With ConcreteTypes 1

5. Temporary Fence Blocks Filled With ConcreteTypes 2

6. Temporary Fence Blocks RAL Standard Color Choices


4.  Temporary Fence Steel Clamps

Our temporary fence clamps are manufactured from high quality steel plates into qualified clamps, which are meeting Australian standard A.S. 4687-2007 for Temporary Fencing & Hoardings.

  • Hot dipped galvanized for min 42 microns zinc coating.
  • Sturdy to withstand the harshest environments.
  • Suit 32 mm, 40 mm or other specs steel pipes and bases.
temporary fence clamps galvanized and powder coated temporary fence steel clamps connected two panels

5.  Other Accessories of Temporary Fence System

  • Bracing

  • Shade Cloth

  • Fence Gate

  • Handrail
