Australia standard portable galvanised temporary fence
Australia standard portable galvanised temporary fence
Temporary fence also known as temp fencing .
This temporary fencing is easy to install and relocate.
It is widely used for temporary construction site and special events.
The temporary fence is made up of fence panel, feet, clamp and brace.
All of those are easy to transport and assemble. It is widely used in Australia and New Zealand market.

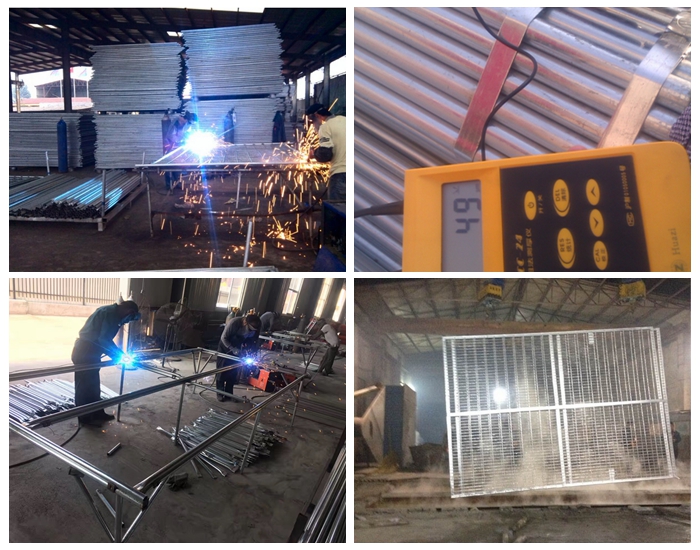

Processing: Pre hot dip gal. wire drawing--- cut wire ---wire welded---cut the corners of the mesh---Pre hot dip gal. pipes(ends of the horizontal pipes are smashed) welded
—polish the welds—paint anti-rust epoxy—spray sliver powder coat on each welds—stacking—packaging

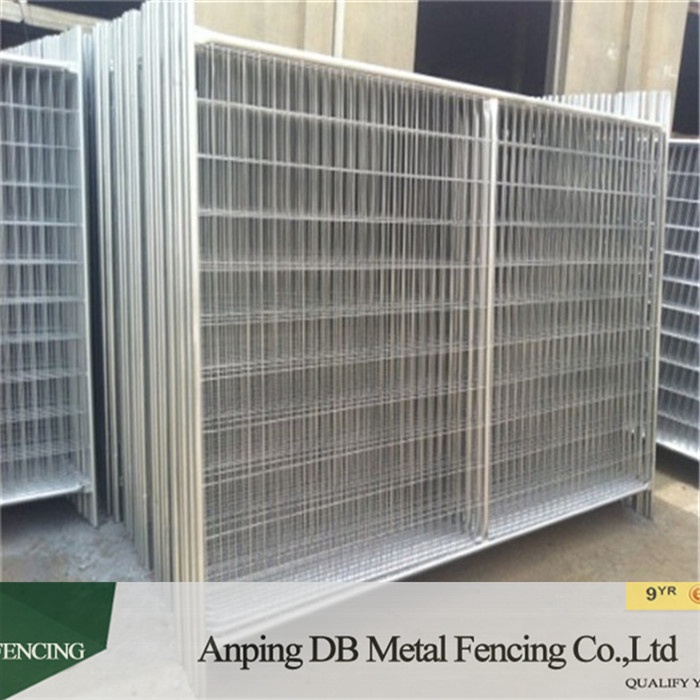

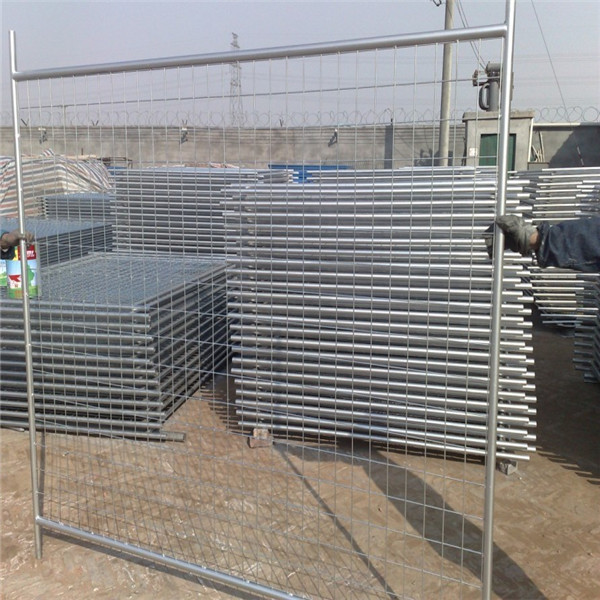

1. Galvanized Temporary Fence Panel Specifications
1. Econo Panel Sets for Sale Complete Temporary Fencing System
|
|
Design |
Australia & New Zealand |
Made |
China |
Panel Specification |
|
Panel Size |
2400mm(L) x 2100mm(H) |
Frame |
32mm O.D. &1.35mm Wall Thickness Galvanised to NZ standard 42 Microns |
Infill Mesh |
3.0mm horizontal, 3.0mm vertical 150mm x 60mm spacing |
Treatment |
Pre-Galvanised pipe and panel welded,then galvanized spraying |
Standard |
AS&NZ 4687-2007 |
Weight/Panel |
14kgs |
2. 3.5 Lighter Sets for Sale Complete Temporary Fencing System |
|
|
|
|
Panel Specification |
|
|
|
Panel Size |
2400mm(L) x 2100mm(H) |
Frame |
32mm O.D. & 1.2mm Wall Thickness Galvanised to NZ standard 42 Microns |
Infill Mesh |
3.5mm horizontal, 3.5mm vertical 150mm x 60mm spacing |
Treatment |
Pre-Galvanised pipe and panel welded,then galvanized spraying |
Standard |
AS&NZ 4687-2007 |
Weight/kgs |
16.5kgs |
3. 3.0 Lighter Sets for Sale Complete Temporary Fencing System
|
|
Panel Specification |
|
Panel Size |
2400mm(L) x 2100mm(H) |
Frame |
32mm O.D. & 1.5mm Wall Thickness Galvanised to NZ standard 42 Microns |
Infill Mesh |
3.0mm horizontal, 3.0mm vertical 150mm x 60mm spacing |
Treatment |
Pre-Galvanised pipe and panel welded,then galvanized spraying |
Standard |
AS&NZ 4687-2007 |
Weight/kgs |
16kgs |
4. Heavy Duty Sets for Sale Complete Temporary Fencing System
|
|
Panel Specification |
|
Panel Size |
2400mm(L) x 2100mm(H) |
Frame |
32mm O.D. & 2.0mm Wall Thickness Galvanised to NZ standard 42 Microns |
Infill Mesh |
4.0mm horizontal, 4.0mm vertical 150mm x 60mm spacing |
Treatment |
Pre-Galvanised pipe and panel welded,then galvanized spraying |
Standard |
AS&NZ 4687-2007 |
Weight/kgs |
20kgs |

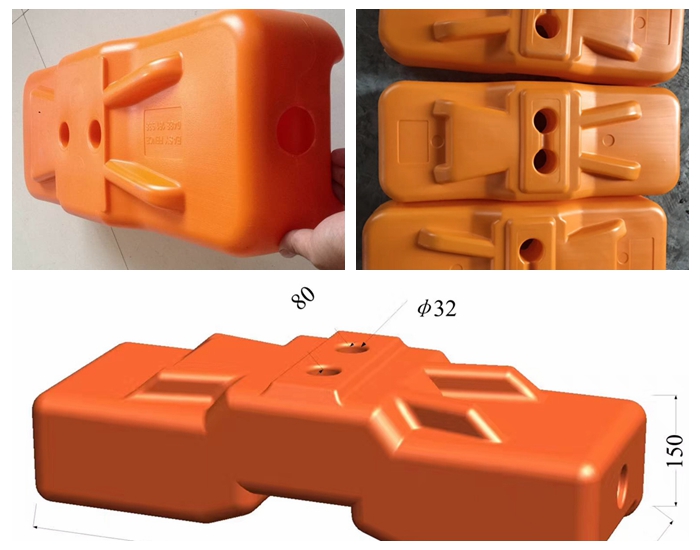

2. Temporary Fence Base
3 to 5 types of anti-ultraviolet Agents added for excellent UV resistance and
anti-aging performance.
UV & anti-aging – 5 years guarantee. Our temporary fencing feet adopt high density polyethylene materials
containing at least 3 types anti-ultraviolet agents: UV2002, UV531 and UV770, which come with a 5 year UV and anti-aging guarantee to accommodate to the Australian climate. The qualified plastic coating contribute to fade-proof performance to maximize health and eliminate safety risks.
Multiple colors– Except for safety orange colors, we can supply customized colors for different site applications. Just tell us your requirements, you will get satisfied products.

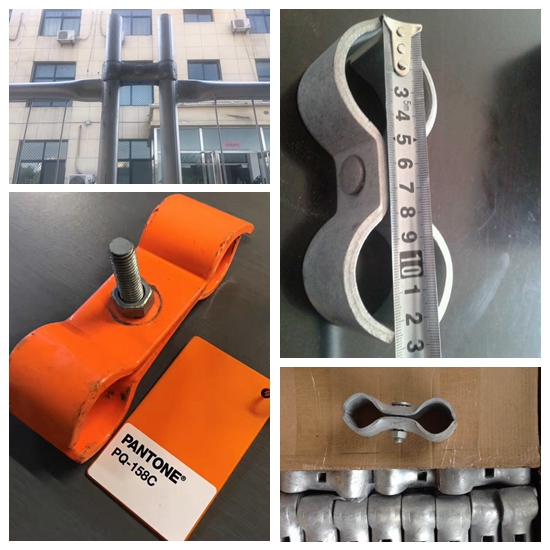

3. Temporary Fence Steel Clamps
Our temporary fence clamps are manufactured from high quality steel plates into qualified clamps, which are meeting Australian standard A.S. 4687-2007 for Temporary Fencing & Hoardings.
Hot dipped galvanized for min 42 microns zinc coating.
Sturdy to withstand the harshest environments.
Suit 32 mm, 40 mm or other specs steel pipes and bases.

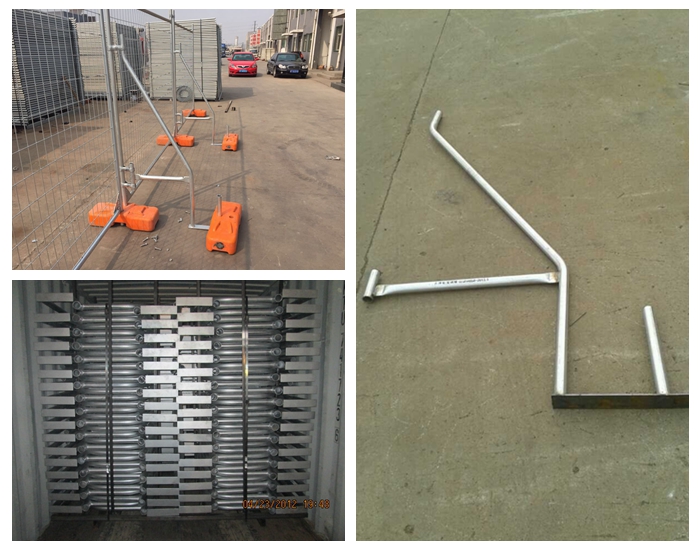

4. Temporary Fence Stays
Height: 1.8mm
Surface: hot dipped galvanized
Quantity: usually 4 panels come with 1 brace

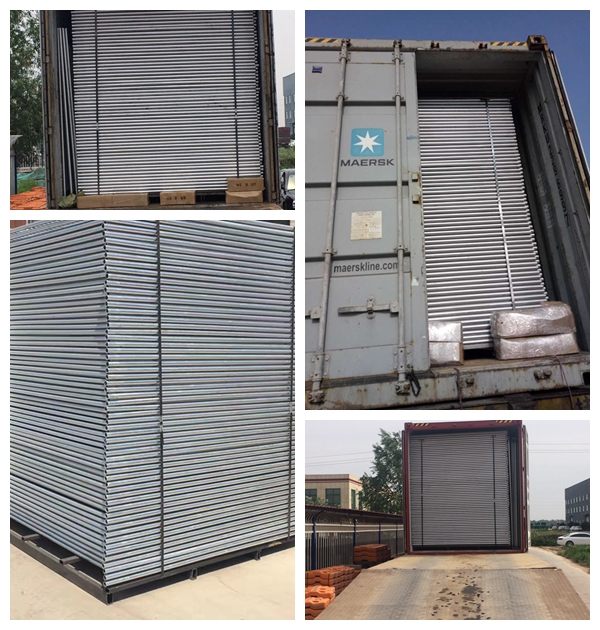

5. Temporary Fence Packing And Loading
6. Temporary Fence Application
1) Temporary fence panel to secure construction sites and private property.
2) Temporary fencing panel of residential housing sites.
3) Temporary fencing panel and crowd control barriers for major public. events, sports, concerts, festivals, gatherings etc.
4) Temporary fence panel safety fencing for swimming pools.
7.Temporary Fence others
We have a range of panels for every project solution. For example:
· 2.4 Metre Standard Panels
· 2.4 Metre Heavy Duty Panels
· 3.5 metre high Economy panels
· 2.4 Metre Chain Wire panels
· Customised panels to suit your project and budget
All come with
Anti -climb mesh infilled
360° hand weld between the vertical and horizontal pipe
Horizontal pipe ends crimped for increased strength
Above Industry Benchmark in thickness of galvanising
offer good corrosion-resistance, anti-aging property,
acid and alkali resistance, smooth and neat surface and comfortable touch
Easy setup and take down.
8. Why Choose US?
Q1. Can I have a sample order for fence panel?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for fence panel order?
A: 100 pcs MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea.
Q5. How to proceed an order for fence panel?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on fence panel?
A: Yes. Please inform us
formally before our production and confirm the design firstly based on our sample.
9. Our Services
1. 100% protection for product quality and on-time shipment.If we fails to ship your products on time or the product quality does not meet the standards set in your contract,We will refund the covered amount of your payment.
2. Our documentary team provide every customer production schedule photos to ensure you know every process.
3. Offering professional one-on-one service and replying your Email within half an hour.
4. Priority to get the our latest product information and sales promotion information after our cooperation.
5. DB Fence can provide every customer Free shipment Insurance to ensure the safty of the goods on the sea.
