Heavy Duty Cattle Yard Panels 6 Oval Rails with pins and brackets

Heavy Duty Cattle Yard Panels 6 Oval Rails with pins and brackets

The heavy duty cattle panel which is built from 50mm x 50mm or 40mm x 40mm uprights, with 30mm x 60mm rails and all metals are 1.6mm thick.


  • Product No.: CP---0561
  • Price: FOBtianjin USD 25-30/set

Details

Heavy Duty Cattle Yard Panels 6 Oval Rails with pins and brackets

As an experienced cattle panel factory, DB Fencing supplies heavy duty cattle panel with gate which is made up of 50mm x 50mm or 40mm x 40mm uprights, with 30mm x 60mm rails. It comes with pins and Lugs to lock the panels together and metal capped to keep the rain out.

 This product is sturdy and reliable and there is no fear that the structure will collapse because it is made from the highest quality of galvanized steel.




1. Corral Cattle Panels Specs

1) Heavy Duty Cattle Yard Panels 6 Oval Rails   2.1m x 1.8m Cattle Panels

Our cattle panels are made with 6 x oval 80x40mm cattle rails & 50x50mm posts. They are 2.1m x 1.8m. The Cattle rail spacing’s are 200mm for the bottom 2 rails, 240mm for the middle rails & 260mm for the top rails. Every panel comes with the pins brackets to lock the panels together.

Item

Oval Rails No.

Oval Rails Specs

Upright Posts

Surface Finish

Size( L x H)

Accessories

Heavy Duty  Cattle Panel

6

 80 x 40 x 1.6mm

50 x 50 x 1.6mm

Hot dipped galvanised

 2.1 x 1.8m

double lugs, two single lugs and 2 pins


2) 40x40 1.8M x 2.1M Heavy Duty Portable Cattle Yard Panel 6 Oval Bars 30*60mm

Cattle Panel 40mm x 40mm SHS

These 40mm x 40mm SHS panels are a great all rounder for those light duty applications. Easy to assemble
with double lugs and two single lugs welded to the panel.

Item

Oval Rails No.

Oval Rails Specs

Upright Posts

Surface Finish

Size( L x H)

Accessories

Lightweight Cattle Panel

6

 30 x 60 x 1.6mm

40 x 40 x 1.6mm

Hot dipped galvanized

 2.1 x 1.8m

double lugs, two single lugs and 2 pins


3) 1.8M x 2.1M Heavy Duty Portable Cattle Yard Panel 5 Oval Bars 2.5mm Thick

Item

Oval Rails No.

Oval Rails Specs

Vertical Pipe Oval

Surface Finish

Size( L x H)

Accessories

Heavy Duty Portable Cattle Yard Panel

5

 30 x 120 x 1.8mm Oval

60 x 60 x 2.5mm Oval

HDG 15-microns

 2200 x 2250mm

double lugs, two single lugs and 2 pins



2. Cattle Horse round Yard Panels Single Gate

Item

Oval Rails No.

Oval Rails Specs

Vertical Pipe

Surface Finish

Size( L x H)

Accessories

Cattle round Yard Panels Single Gate

6

 30 x 60 x 1.6mm

50 x 50 x 1.6mm

HDG 15-microns

 2200 x 2250mm

double lugs, two single lugs and 2 pins



3. Cattle Panel Double Gate 80mm x 42mm x 2.0mm Oval Rail

The gates are also simple to assemble and designed to couple directly to the panel, giving you the
flexibility to arrange your stockyard system in many different ways to suit your application and to
provide maximum flow through your yards.

Item

Oval Rails No.

Oval Rails Specs

Upright Posts

Surface Finish

Size( L x H)

Accessories

Cattle Panel Double Gate

6

 80 x 42 x 2.0mm

50 x 50 x 1.6mm

Hot dipped galvanised

 4.0 x 2.2m

double lugs, two single lugs and 2 pins



4. Cattle Sliding Gate Slide Yard Heavy Duty 8 Oval Economy 850mm 1.17x2.2M

- Dimensions: 2200mm(H) x 1170mm (W)

- Finish: HDG 15-microns

- High Quality Metal

Item

Oval Rails No.

Oval Rails Specs

Upright Posts

Surface Finish

Size( L x H)

Accessories

Cattle Sliding Gate

8

 80 x 40 x 1.6mm

50 x 50 x 2.0mm

HDG 15-microns

 1.17 x 2.2m

Hinges, Brackets and bolt pins


5. Cattle Panels Quality Testing

  1. Firstly, we prepared the pipe (square pipe or the round pipe, the elliptic).
  2. Then put the pipe on the welded shaping machine, the pipe are galvanized,welded the pipe together.
  3. Then make the spot smoothing,
  4. Then silver painted.

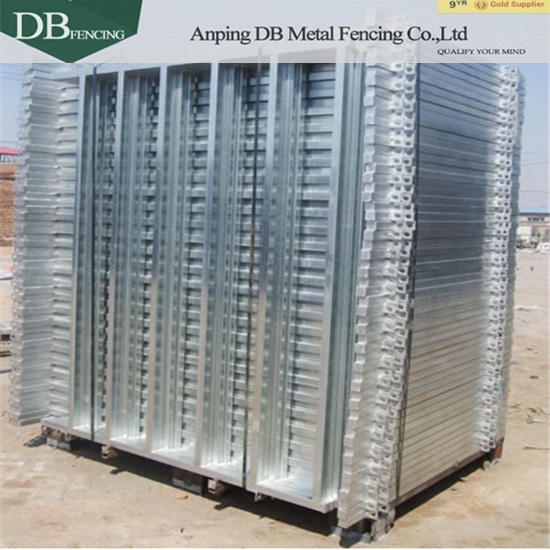

6. Cattle Panels Packing And Loading


Hot dipped galvanized cattle panel Application: Farm corral,keep animals safe and protect your farm fields from wild animals or thieves. We have our own factories which manufacturing tube,pipe,steel channel and other steel accessories,free customization.
