Portable fence OD32 x 2.0mm 2.1x2.4m

Portable fence OD32 x 2.0mm 2.1x2.4m

Temporary Fence exports Expert. Serving All Of Australia and New Zealand. Construction, Commercial and Residential Fencing,E: [email protected]


  • Product No.: TF---0254
  • Price: FOBtianjin USD 22-25/set

Details

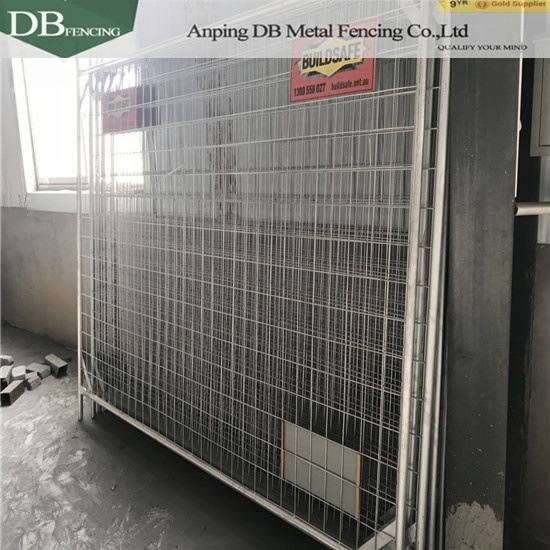

Portable fence OD32 x 2.0mm 2.1x2.4m

We are Top 5 temporary fencing factory and own our 8 welding platform and 1 plastic feet machine to control the best quality which will last the 10 years. When used in conjunction with our temp fencing feet, stays and clamps you’ll have a complete temp fencing system that will be durable and reliable. Every year, we exported so many containers to the city in Adelaide, Brisbane, Melbourne, Perth, Sydney, Auckland.

Our temp fence panel can last more than 10 years in Tropical and subtropical climates. These temp fence panels withstand these seaside environments and to extend service life and prevent breakage.

Temporary fence system

installed

around the house site in Auckland

1. Galvanized Temporary Fence Panels Specifications

Our normal Temporary Fence Panels is 2100mm high and 2400mm wide. Panels are 360° full welding for strong structure for optimum strength, Smooth surface and no burrs, Economical pre-galvanised finish, or hot dipped galvanized for durability.

Anti -climb mesh infill, Horizontal pipe flatten ending to load more temp fence panels into 40’HC.

1. Econo Panel Sets for Sale Complete Temporary Fencing System

Design

Australia & New Zealand

Made

China

 Panel Specification

Panel Size

2400mm(L) x 2100mm(H)

Frame

32mm O.D. &1.35mm Wall Thickness Galvanised to NZ standard 42 Microns

Infill Mesh

3.0mm horizontal, 3.0mm vertical 150mm x 60mm spacing

Treatment

Pre-Galvanised pipe and panel welded,then galvanized spraying

Standard

AS&NZ 4687- 2007

Weight/Panel

14kgs



2. 3.5 Lighter Sets for Sale Complete Temporary Fencing System



Panel Specification

Panel Size

2400mm(L) x 2100mm(H)

Frame

32mm O.D. & 1.2mm Wall Thickness Galvanised to NZ standard 42 Microns

Infill Mesh

3.5mm horizontal, 3.5mm vertical 150mm x 60mm spacing

Treatment

Pre-Galvanised pipe and panel welded,then galvanized spraying

Standard

AS&NZ 4687-2007

Weight/kgs

16.5kgs



3. 3.0 Lighter Sets for Sale Complete Temporary Fencing System

Panel Specification

Panel Size

2400mm(L) x 2100mm(H)

Frame

32mm O.D. & 1.5mm Wall Thickness Galvanised to NZ standard 42 Microns

Infill Mesh

3.0mm horizontal, 3.0mm vertical 150mm x 60mm spacing

Treatment

Pre-Galvanised pipe and panel welded,then galvanized spraying

Standard

AS&NZ 4687- 2007

Weight/kgs

16kgs


4. Heavy Duty Sets for Sale Complete Temporary Fencing System

Panel Specification

Panel Size

2400mm(L) x 2100mm(H)

Frame

32mm O.D. & 2.0mm Wall Thickness Galvanised to NZ standard 42 Microns

Infill Mesh

4.0mm horizontal, 4.0mm vertical 150mm x 60mm spacing

Treatment

Pre-Galvanised pipe and panel welded,then galvanized spraying

Standard

AS&NZ 4687- 2007

Weight/kgs

20kgs

2. Temporary Fence Panels Base

Our temporary fence feet are available as a standard in highly visible safety colour such as orangeused for fencing installed in extreme wind areas, or where shade cloth, banners or signage is installed.,red,green, white and blue, with UV and Anti-aging added to the plastic with Australian.

BLOCK SIZE: 600mm x 230mm x 150mm weighing approximately 28kgs

UV & anti- aging – 5 years guarantee. Our temporary fencing feet adopt high density polyethylene materials
containing at least 3 types anti-ultraviolet agents: UV2002, UV531 and UV770, which come with a 5 year UV and anti-aging guarantee to accommodate to the Australian climate. The qualified plastic coating contribute to fade-proof performance to maximize health and eliminate safety risks.

Multiple colors Except for safety orange colors, we can supply customized colors for different site applications. Just tell us your requirements, you will get satisfied products.

Temporary fence feet filled with concrete or



water

3. Temporary Fence Panels Steel Clamps

Temporary fence clamps are designed to add strength and stability when connecting the fence panels together. Our 32mm clamp is for use in conjunction with our 32mm temporary fence panel and 32mm nb temporary fence feet.

All of our clamps are hot dipped galvanized for durability and designed to withstand the tests of construction sites and harsh Australian climate conditions. Our temp fence clamps, an integral part of a temp fencing installation, are easy to install with basic hand tools.

Our temporary fence clamps consist of a central nut bolt, making securing two panels easy and fast.

Temporary fence steel clamps

galvanized

4. Temporary Fence Panels Stays

Used for fencing installed in extreme wind areas, or where shade cloth, banners or signage is installed.

Heavy Duty Temporary Fence Brace: Use in High wind areas, for fencing with Banner mesh or shade cloth installed or for installations in high pedestrian or vehicle traffic areas. Galvanised finished, suits 2 x PE bases and requires 2 coupler clamps to attach to the fence panel.

Heavy duty fencing braces provide additional stability for temporary fencing Installations in windy and public areas.

When 1 brace, every 3rd panel in windy areas or when the installation is in a heavy traffic or public area to improve safety.

Temporary fence brace support the

panel to anti the wind

5. Temporary Fence Panels Packing And Loading

This is a full container of 2.4m width x 2.1m heigh panels. Each container includes 530 temp fence panels, 530 plastic feet, and 530 steel clamps.

Temporary fence panel,

feet, brace and

clips loaded in container

6. Temporary Fence Panels Application

1) Temporary fence panel to secure construction sites and&a mp;n bsp;private property.
2) Temporary fencing panel of residential housing sites.& lt; span style="outline: 0px; letter-spacing: 0pt;">
3) Temporary fencing panel and crowd control barriers for&a mp;n bsp;major public. events, sports, concerts, festivals, gather ings etc.
4) Temporary fence panel safety fencing for swimming pools.

7. Temporary Fence Panels others

We have a range of panels for every project solution. For example:

· 2.4 Metre Standard Panels

· 2.4 Metre Heavy Duty Panels

· 3.5 metre high Economy panels

· 2.4 Metre Chain Wire panels

· Customised panels to suit your project and budget

All come with

Anti -climb mesh infilled

360° hand weld between the vertical and horizontal pipe

Horizontal pipe ends crimped for increased strength

Above Industry Benchmark in thickness of galvanising

offer good corrosion- resistance, anti- aging property,

acid and alkali resistance, smooth and ne at su rface and comfortable touch

Easy setup and take down.

8.Why Choose US?

Q1. Can I have a sample order for fence panel?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 3 -5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for fence panel order?

A: 100 pcs MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea.

Q5. How to proceed an order for fence panel?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on fence panel?

A: Yes. Please inform us
formally before our production and confirm the design firstly based on our sample.
9.
 Benefits:

Anti-climb mesh

Quick and easy to install and can be easily re- located

Protects your valuable assets and protects you against Public Liability claims

Panel stabilisers used to ensure sturdy fences on long runs or wind prone areas.

Fence extensions are available on the Industrial/Event panel
10.Fencing Accessories

The following accessories that can be used in conjunction with the temporary fence.

 Barbed wire

 Handrails

 Dog proofing

 Bracing

 Shade cloth

 We also specialise in: Crowd Control Barrier, BRC Fence, Swimming Pool Fence, Temporary Chain Link Fence, Temporary Hoarding...
