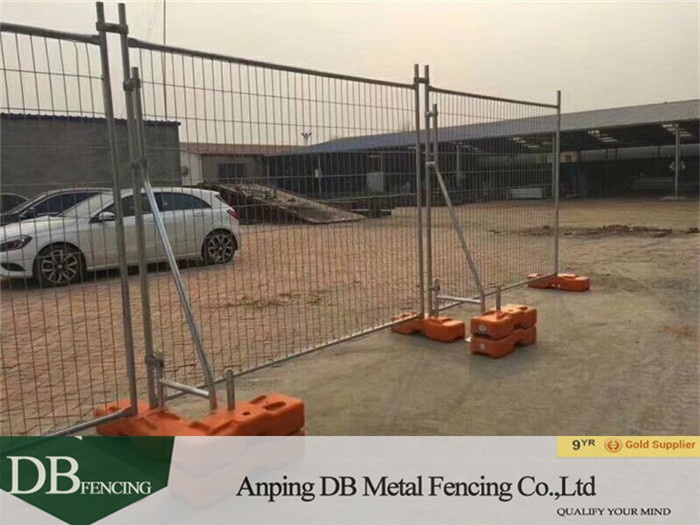

Australia standard portable galvanised temporary fence

 Australia standard portable galvanised temporary fence

Temporary fence also known as temp fencing .

This temporary fencing is easy to install and relocate.It is widely used for temporary construction site and special events.

The temporary fence is made up of fence panel, feet, clamp and brace.

All of those are easy to transport and assemble. It is widely used in Australia and New Zealand market.

 1. Temporary fence panel

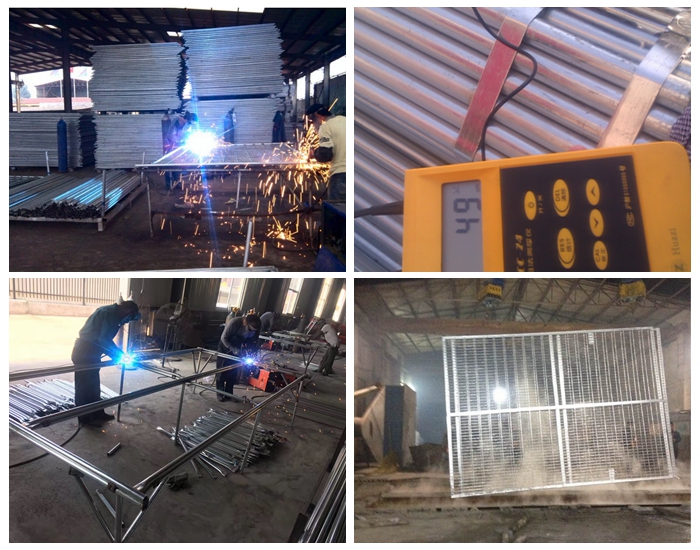

Pre hot dip gal. wire--- cut wire ---Panel welded---cut the corners of the mesh---Pre hot dip gal. pipes(ends of the horizontal pipes are flatten) welded

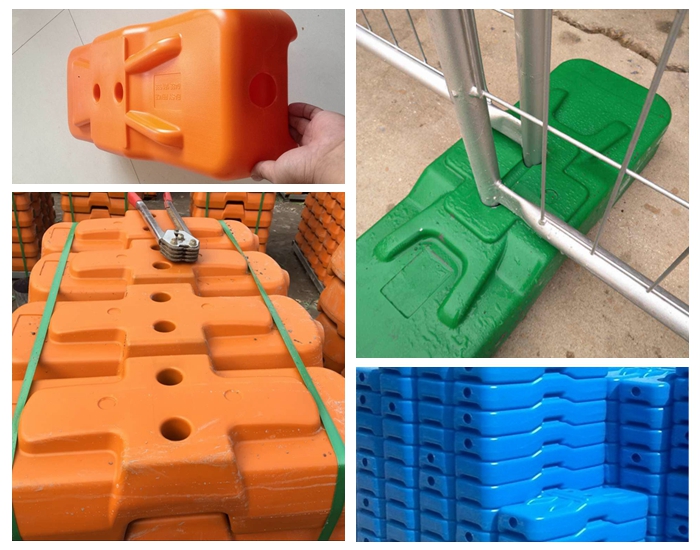

2. Temporary Fence plastic base with concrete

Feet Specification
Material	Manufactured in high-density polyethylene
Treatment	UV220,UV531 ,BASF and UV770 treatment for anti-color-fading and outdoor use.
Color	Orange, Blue or Red, Green
Infill material	Filled in AUS&NZ with 30 mpa Concrete & 10mm chip
Infill concrete weight	27.5-28kg

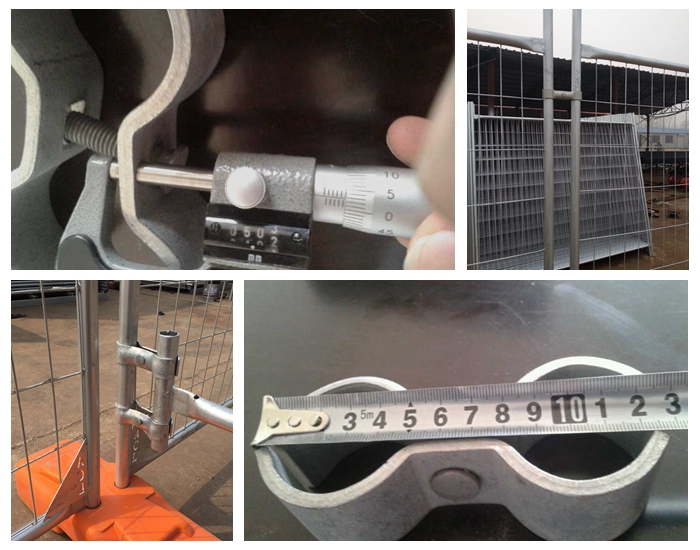

3. Temporary Fence Steel Clamps

Clamp Specification
Size	Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C)
Treatment	Hot Dipped Galvanised
Weight	0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut)

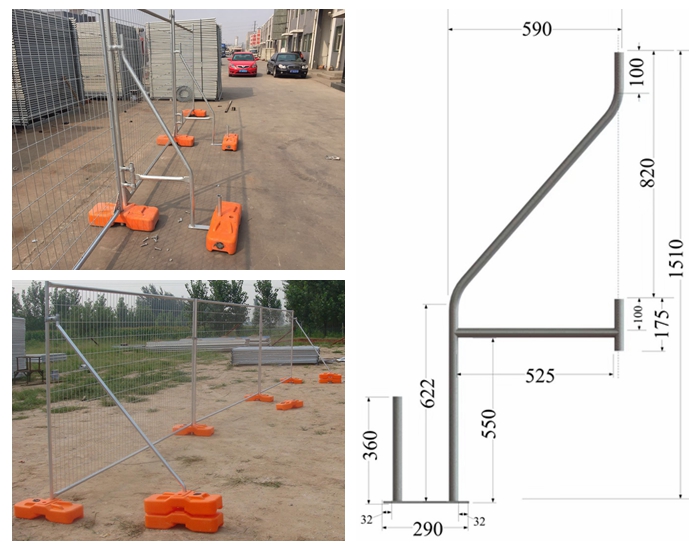

4. Temporary Fence Bracing

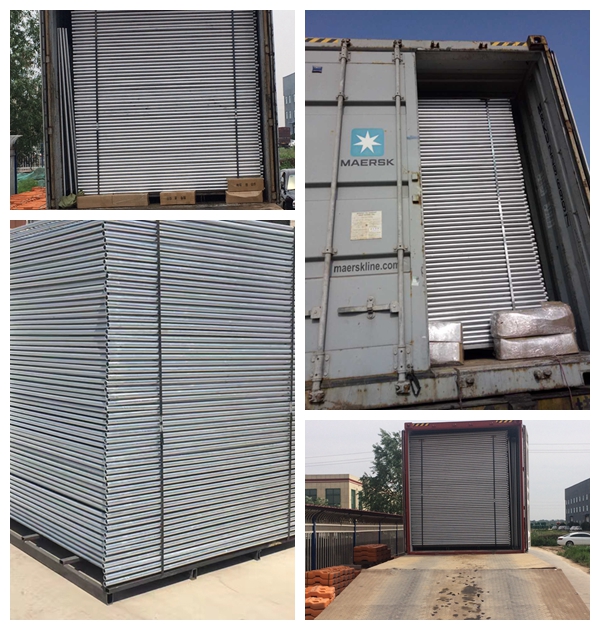

5. Loading And Packing
