Corral Panels Galvanized

Corral Panels Galvanized

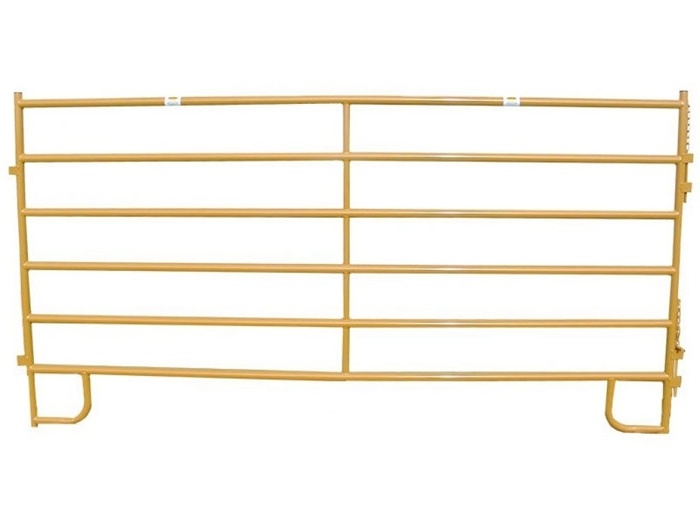

The galvanized livestock corral panels 6 rails, 5ft height, 1-3/4-in rounded high-tensile strength steel tubing, with vertical center Z-brace to support strength and durability.


  • Product No.: CP-1954
  • Price: FOBtianjin USD 15-25/set

Details

Corral Panels Galvanized

The 5-ft powder coated corral panels are made up of 1-3/4-in rounded high-tensile strength steel tubing, with vertical center Z-brace to support strength and durability. The square corner, pin connections and full welded points make the corral panel so strong. Custom loop legs prevent sinking.

1. Specs of Corral Panels

  • Height: 5 ft., 62’’, 72''
  • Width: 10ft, 12 ft, 16ft
  • Number of Bars: 6
  • Steel Tube: 2 in. or 1-3/4 in. diameter round tubing with superior continuous-welded saddle joints with two vertical "Z" braces for added stability
  • Tube Gauge: 16 ga., 19 ga., 20ga.
  • Gate Latch: Quick pin latch with u-supports system to make assembling multiple panels easier
  • Legs: Loop legs prevent each panel from sinking into moist or soft soils.
  • Finish: Powder coated red, gray, green color to provide longer field life and resist corrosion

Galvanized & Powder Coated Corral Panels

corral panels with one Z brace
corral panels with 2 brace

1. 2" Rounded Corner Heavy Duty Corral Panel 16 Gauge 10FT x 62" Tall 6 Rails

2. 12 Ft. 6-Bar Red Tube Corral Panel, 1-3/4 In. Round x 19 Gauge With Two Vertical "Z" Braces

corral panels with gray color
corral panels with 3 stays

3. Corral Panel 10 ft. 6-Bar, 19 gauge round tube, 1-3/4" O.D. or 2" round 16 ga 60" high with vertical "Z" braces

4. Corral Panel, 6-Bar, Heavy-Duty, 50 in. Or 62 in.tall x 16 ft with Four Vertical "Z" braces


2. Application of Corral Panels

  • Livestock corrals
  • Portable horse fences
  • Round pens
