6'X9.5' GalvanizedTemporary perimeter movable fencing Welded portable wire fence

6'X9.5' GalvanizedTemporary perimeter movable fencing Welded portable wire fence

Temporary Chain Link panel fencing provides a sturdy and reliable fence for many job-site applications. E: [email protected], WhatsApp: +86 15324294271 (Frank)


  • Product No.: TCLF---056
  • Price: FOBtianjin USD 25-30/set

Details

6'X9.5' color coated Temporary perimeter movable fencing Welded portable wire fence
Temporary chain link fence is also called mobile fence mesh, temporary police. Our temporary chain link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular in Australia, American, England, Africa market.......

Temporary chain link fence panel uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.

In addition, Temporary chain link fence panel with wire diameter of 11 or 9 gauge, 2" mesh opening, frame outside diameter of 1-1/4", plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.


6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft Temporary Chain Link Fence Panel

Design

North America,Australia & New Zealand

Made

China

1) Panel Specification

Panel Size

6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft

Frame

1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.

Chain Link Mesh Wire

9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

Chain Link Mesh Size

2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.

Brace

Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

Treatment

Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised

Standard (Standard panels include barbed wire as extra security)



AS 1725-2010 – Chain – Link Fabric Security Fences and Gates.

AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,

Aquatic and General Use.

AS 54687-2007 –  Temporary Fencing and Hoarding.

2) Steel Feet Specification

Size

750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base

Treatment

Hot dipped Galvanised;

3) Clamp Specification

Size

Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C);

Treatment

Hot Dipped Galvanised;

Weight

0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut);



4) Packing

In Bulk

A.Qty In 1x20GP

/ set ( 1 panel+1 steel +1 clamp with bolt and nut);

B.Qty In1x40HC

/ sets ( 1 panel +1 clamp with bolt and nut);



5)Shipping Time

15-20 days for 1x40HC after receiving the deposit;

6)Payment

30% deposit by TT, and the balance paid at sight of BL copy;

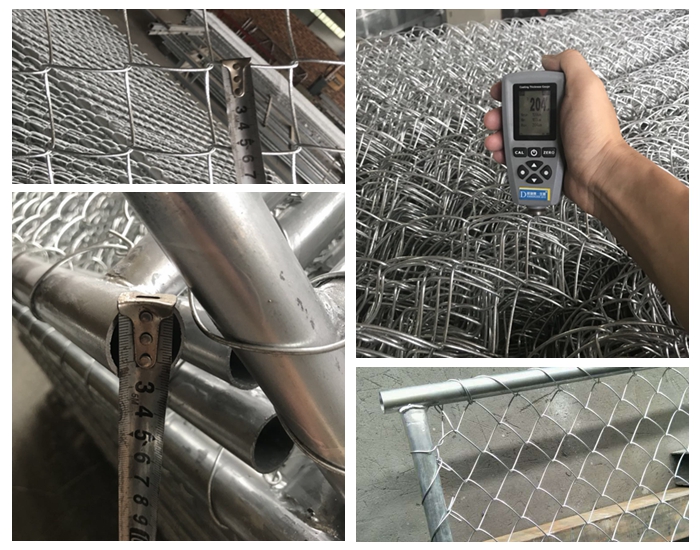

1. Temporary Chain Link Fence Quality Testing

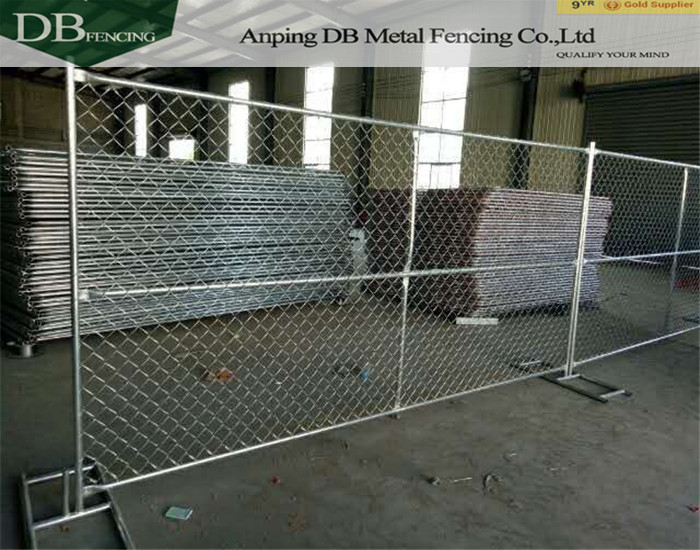

TEMPORARY CHAIN LINK FENCE PANELS

  • 360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.

  • Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

  • Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

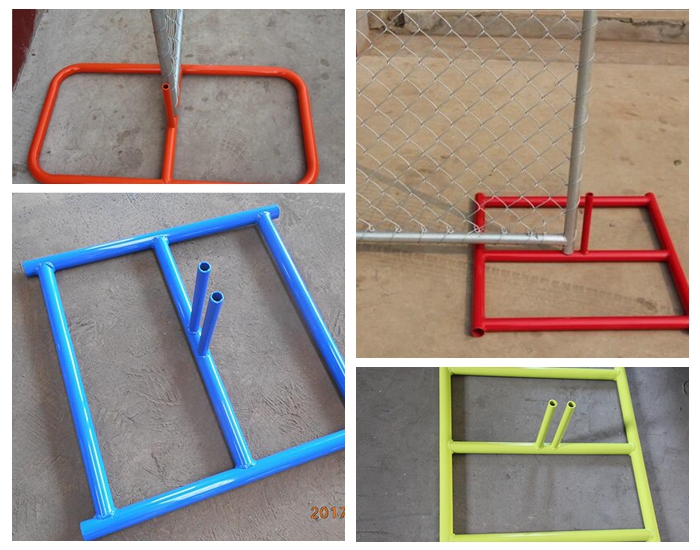

2. Temporary Chain Link Fence Base Types

Temporary chain link fence feet are a high quality, heavy duty, long life product. size is 914x450mm.

Your High quality steel temporary chain link fence will look greater and be safer.


3. Temporary Chain Link Fence Steel Clamp

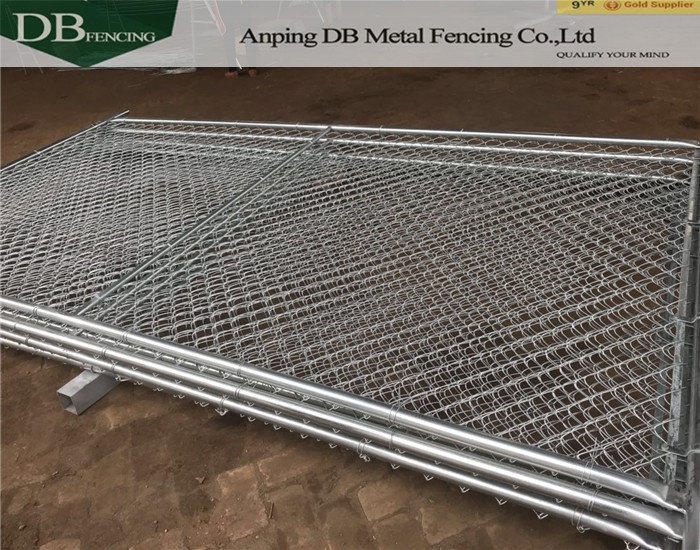

4.Temporary Chain Link Fence Loading
