8 ft 6 in(2.6 m) x 43 in(109.2 cm) Crowd Control Barrier

8 ft 6 in(2.6 m) x 43 in(109.2 cm) Crowd Control Barrier

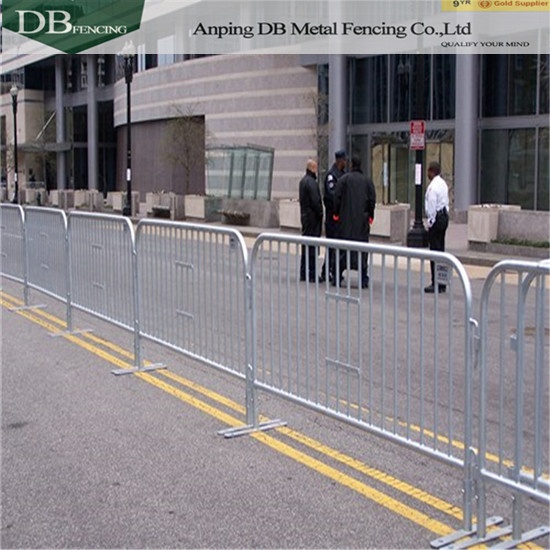

The Crowd Control Barrier is also called steel barrier, which is made of galvanized steel,
with size 2.0 x 1.1m, 2.2x1.1m, 2.3 x 1.1m, 2.5 x 1.1m, 2.6 x 1.1m. The barricades are linked
together to provide a solid barrier to direct pedestrian traffic. It is easily and quickly installed
between pedestrian traffic and possible danger to provide safety, especially Children.

1. Our Crowd Control Barrier are available with the following overall dimensions

Item	1.0-Meter	2.0-Meter	2.3-Meter	2.5-Meter	2.6-Meter
Length	39" (3.25 Ft.)	79" (6.5 Ft.)	7.5’ (2.3 m)	98" (8 Ft.)	8 ft 6 in (2.6m)
Height	43" (3.6 Ft.)	43" (3.6 Ft.)	43” (109.2 mm)	43" (3.6 Ft.)	43"  (109.2mm)
No. of Uprights	6	14	16	18	22
Spacing Between Uprights	4 3/8"	4 3/8"	4 3/8"	4 3/8"	4 3/8"
Frame Thickness	16 gauge	16 gauge	OD 14-gauge	16 gauge	OD 14-gauge
Frame Dia.	1.5"	1.5 in. OD 16-gauge or 1/25 in. OD	1.5 in. OD 16-gauge      or 1/25 in. OD	1.5"	1.5 in. OD 16-gauge or 1/25 in. OD
Upright Dia.	.625"	.625"	.625"	.625"	.625"

 Other Size of Crowd Control Barrier

1) 6.79' x 2.72' Suits Frame with flexible supporting leg

2) 6.82' x 3.18' Suits Frame with fixed supporting leg

3) 6.82' x 3.44' Suits Frame with Plate base
4) 102"L x 40"H overall size

2. Main Frame of Crowd Control Barrier

The main frame is made of 1½ ” O.D. galvanized steel tubing, minimum 16 gauge.It is a single tubing
which is bent at right angles.Then the bent tubing is welded in saddle-cut welds with bottom horizontal tubing.

3. Spacing Between Uprights of Crowd Control Barrier

Equally-spaced bars are welded strongly with barrier frame, made of 1.5’’ O.D. steel tubing,
minimum 16 gauge. Minimum of ½” weld at the top and at the bottom of each upright bar.
The spacing between inside vertical members is no less than 4 3/8’’ and meets all standards.

4. Crowd Control Barrier Base Options

There are several barrier base options available with the bridge base and flat base being the most popular by far.

Feet: Two (2) bolt on flat feet ½” x 2″ flat steel bar with 1¼” O.D. 14 galvanized stem, or

Two (2) bolt on bridge feet 1½” O.D. galvanized steel, 16 gauge, with ¼” O.D. galvanized stem.

Our barriers go through a hot dip galvanizing process so that our barriers remain rust-free.

FLAT BASE, U BASE, Bridge Base, Wheel Base

5. Male-Female Interlocking Ends

The crowd control barriers are connected together by interlocking device,called Male-Female interlocking ends.
It is a minimum ⅝” diameter rod welded through main frame at both ends. Male/Female connections
have enough clearance to allow for uneven ground when connected.

6. Finish of Crowd Control Barrier

 The whole panel is hot dipped galvanized after welding as per the specs and drawing.

The barrier is polished after galvanizing so that no burrs sharp points to hurt the workers.

7. Packing & Loading of Crowd Control Barrier

8. Application of Crowd Control Barrier

Parade Routes

Fun Runs/Walks

Event Staging Areas

Concert Stages

Block Parties

Waiting Lines

Grand Openings

Parking Lots

Construction Sites

Carnivals/Fairs
