Powder Coated Welded Wire BRC Fencing used for south korea public place

Powder Coated Welded Wire BRC Fencing used for south korea public place

1.Material: Low Carbon Steel Q235;
2.Wire Diam.: 3.0-5.0mm;
3.Mesh Size: 50 x 100, 50 x 150, 50 x 200, 75 x 200;
4.Height: 1.8m, 2.0m, 2.4m, 3.0m, 5.0m;
5.Length: 2.3m, 2.5m, 3.0m;
6.Finish: Galvanized before powder coated.


  • Product No.: BRC19
  • Price: FOBtianjin USD 15-25/set

Details

Powder Coated Welded Wire BRC Fencing used for south korea public place

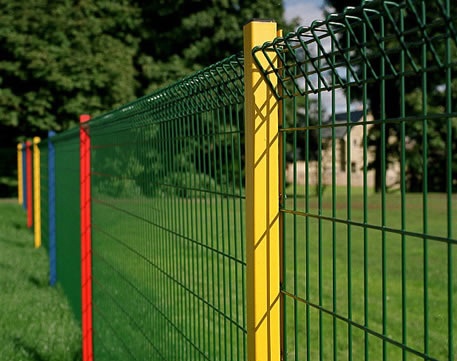

BRC Fence is also called Roll Top Fence, Security Fence, Roll Top mesh fence, and
Bow Top Fencing which is a welded mesh panel with spacing 50x150mm, making the
place safety, beautiful and no worries. The fence have a triangular roll on the top and
bottom of the fence making it strong and tough.  Hence, it also help prevents anyone
from easily climbing over the fence to reach the protected area. This Fence is widely
popular in Malaysia, Australia, Singapore, South Korea, and other Southeast Asia Countries,
to use on commercial, residential, governmental and industrial properties.



BRC Fence Specifications list

Mesh (mm)

250*50

200*50

150*75

150*50

100*50

Wire diameter

(mm)

5

3

4

3.5

4.5

Square Post

(mm)

60*60*1.5

60*60*2.5

48*48*2.5

60*60*2.0

48*48*2.0

Width(m)

1.2,1.5,1.8,2.1,2.4

1.2,1.5,1.8,2.1,2.4

1.2,1.5,1.8,2.1,2.4

1.2,1.5,1.8,2.1,2.4

1.2,1.5,1.8,2.1,2.4

Length(m)

2.4/3.0

2.4/3.0

2.4/3.0

2.4/3.0

2.4/3.0



BRC Fence Post

Post Size

60mm * 1.9mm (thickness) Ultragal Steel Post

Height of Post (mm)

1350, 1650, 2000, 2400, 2800 & 3000



Quality Testing of BRC Fence

EN 10223-4: Steel Wire And Wire Products For Fencing And Netting - Part 4: Steel Wire
Welded Mesh Fencing

EN 10218-2: Steel Wire And Wire Products - General - Part 2: Wire Dimensions And Tolerances

EN 10244-2: Steel Wire And Wire Products - Non-ferrous Metallic Coatings On Steel
Wire - Part 2: Zinc Or Zinc Alloy Coatings

EN 10245-4: Steel Wire And Wire Products - Organic Coatings On Steel
Wire - Part 4: Polyester Coated Wire

The maximum wire diameter tolerance is 0.05mm, and the mesh size is 0.1-0.5mm, the
diagonal is within 2.0mm;




The process of BRC fence is same with other welded wire mesh fence, but additional bending on the top and bottom two ends.

1. Welded the low carbon steel wire to be panel as drawing size;

2. Bend to make the rolling top and bottom;

3. The surface treatment of the BRC fence: Hot dipped galvanized and powder coated colors such as black, green,etc


Applications of BRC Fencing

BRC Fencing, also called roll top fence, is very strong, not easy to bend. In addition, it helps
 prevent anyone from easily climbing over the fence to the protected area. It is widely used by
reputable real estate developers, industrial factories, engineering companies, farm owners and
 government departments. It also applies in the following ways.Army Camp,GatedSecurity,Prison,
Industrial Factory

Play Ground,Stadium,Housing Estate,Detention Centre,

Carpark,Public Hall



Benefits of BRC Fencing

High quality galvanized coating allows roll top fence users no worries, because it is different from
many other low-carbon steel fences. Hot dip galvanizing is not easy to rust in a short time. Therefore,
low maintenance or free maintenance for a long time to give users a good product experience

Suitable where safety is a consideration

Aesthetic appearance

High rigidity

Excellent through vision

Wide range of colour options

Available as a complete system



1. Packed in PVC film;
2. Accessories packed in small plastic bag and carton box;
3. Packed in steel pallet;
4. Also can be as your request.
5. Shipping Time: Within 15 days after receiving the deposit.

Features of BRC Fence

Not get rusted easily in a short period of time

Aesthetic appearance

5.0mm wire makes High rigidity and better safety

Excellent through vision

Wide range of colour options

No sharp or raw edges

Compliant with BS 1722 Pt. 9

Security Fixings

Welded Construction

Hot Dip Galvanised to BS EN ISO 1461

Polyester Powder Coated option
