Temporary Chain Link Fence,Standard 6′x12′ Temporary Chain Link Construction Horading Fence Aperture2.25" (57mm) 2.375" ,(60mm) X2.375" (63mm) HDG x 11 Gage or 9 Gauge,1.25''(32mm) O.D. Galvanized


  • Product No.: TCLF---004
  • Price: FOBtianjin USD 30-40/set

Details

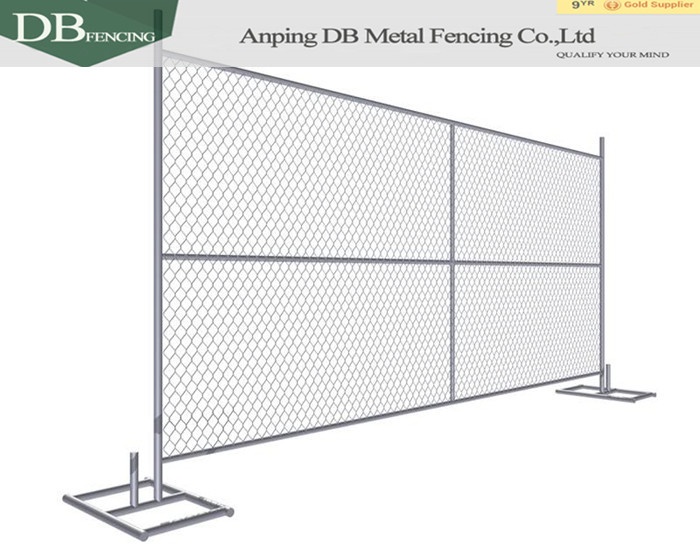

6ft x 12ft Temporary Chain Link Fence

6' × 12' temporary chain link fence uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.

In addition, 6' × 12' temporary chain link fence with wire diameter of 9 gauge, 2-2/5" mesh opening, frame outside diameter of 1-1/4", plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.


1. 6ft x 12ft Temporary Chain Link Fence Panel

Design

North America,Australia & New Zealand

Made

China

1) Panel Specification

Panel Size

Panel Height: 6ft(1800mm); Panel Length: 12ft(3600mm)

Frame

1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.

Chain Link Mesh Wire

9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

Chain Link Mesh Size

2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.

Brace

Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

Treatment

Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised

Standard (Standard panels include barbed wire as extra security)



AS 1725-2010 – Chain – Link Fabric Security Fences and Gates.

AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,

Aquatic and General Use.

AS 54687-2007 –  Temporary Fencing and Hoarding.

2) Steel Feet Specification

Size

750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base

Treatment

Hot dipped Galvanised;

3) Clamp Specification

Size

Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C);

Treatment

Hot Dipped Galvanised;

Weight

0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut);



4) Packing

In Bulk

A.Qty In 1x20GP

120 set ( 1 panel+1 steel +1 clamp with bolt and nut);

B.Qty In1x40HC

360 sets ( 1 panel +1 clamp with bolt and nut);



5)Shipping Time

15-20 days for 1x40HC after receiving the deposit;

6)Payment

30% deposit by TT, and the balance paid at sight of BL copy;

1. 6ft x 12ft Temporary Chain Link Fence Quality Testing

6' × 12' TEMPORARY CHAIN LINK FENCE PANELS

  • 360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.

  • Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

  • Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.


2. 6ft x 12ft Temporary Chain Link Fence Base Types

3. 6ft x 12ft Temporary Chain Link Fence Steel Clamp

4.  6ft x 12ft Temporary Chain Link Fence Loading
