Galvanised Steel Portable Cattle Panels 2.1m x 1.8m, Portable Cattle Livectock Panels 6 Oval Bars with components, man gate, cattle crush, and adjustable loading ramp.


  • Product No.: CP---0554
  • Price: FOBtianjin USD 25-30/set

Details

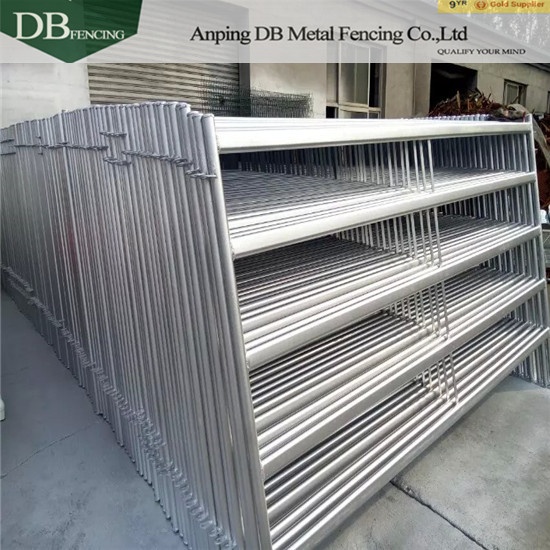

Galvanised Steel Portable Cattle Panels - Livestock Panels

As an experienced portable cattle panel factory, DB Fencing supplies heavy duty portable cattle panel with gate which is made up of 50mm x 50mm or 40mm x 40mm uprights, with 30mm x 60mm rails. It comes with pins and Lugs to lock the panels together and metal capped to keep the rain out.

The portable cattle panels usually can be also called livestock panels, cattle panels, cattle fence panels, livestock fence panels, cow panels,round yard,etc.

 This portable cattle panels are sturdy and reliable and there is no fear that the structure will collapse because it is made from the highest quality of galvanised steel.




1.Portable Cattle Panels Specs

1) Heavy Duty Cattle Yard Panels 6 Oval Rails   2.1m x 1.8m Portable Cattle Panels

Our portable cattle panels are made with 6 x oval 80x40mm cattle rails & 50x50mm posts. They are 2.1m x 1.8m. The Cattle rail spacing’s are 200mm for the bottom 2 rails, 240mm for the middle rails & 260mm for the top rails. Every panel comes with the pins brackets to lock the panels together.

Item

Oval Rails No.

Oval Rails Specs

Upright Posts

Surface Finish

Size( L x H)

Accessories

Heavy Duty  Portable Cattle Panels

6

 80 x 40 x 1.6mm

50 x 50 x 1.6mm

Hot dipped galvanised

 2.1 x 1.8m

double lugs, two single lugs and 2 pins


2) 40x40 1.8M x 2.1M Heavy Duty Portable Cattle Panels 6 Oval Bars 30*60mm

Portable Cattle Panels 40mm x 40mm SHS

These 40mm x 40mm SHS panels are a great all rounder for those light duty applications. Easy to assemble
with double lugs and two single lugs welded to the panel.

Item

Oval Rails No.

Oval Rails Specs

Upright Posts

Surface Finish

Size( L x H)

Accessories

Lightweight Cattle Panel

6

 30 x 60 x 1.6mm

40 x 40 x 1.6mm

Hot dipped galvanized

 2.1 x 1.8m

double lugs, two single lugs and 2 pins


3) 1.8M x 2.1M Heavy Duty Portable Cattle Panels 5 Oval Bars 2.5mm Thick

Item

Oval Rails No.

Oval Rails Specs

Vertical Pipe Oval

Surface Finish

Size( L x H)

Accessories

Heavy Duty Portable Cattle Yard Panel

5

 30 x 120 x 1.8mm Oval

60 x 60 x 2.5mm Oval

HDG 15-microns

 2200 x 2250mm

double lugs, two single lugs and 2 pins



2. Cattle Horse round Yard Panels Single Gate - Man Gate

Item

Oval Rails No.

Oval Rails Specs

Vertical Pipe

Surface Finish

Size( L x H)

Accessories

Cattle round Yard Panels Man Gate

6

 30 x 60 x 1.6mm

50 x 50 x 1.6mm

HDG 15-microns

 2200 x 2250mm

double lugs, two single lugs and 2 pins



3. Portable Cattle Panels Double Gate 80mm x 42mm x 2.0mm Oval Rail

The livestock panels gates are also simple to assemble and designed to couple directly to the portable cattle panels, giving you the
flexibility to arrange your stockyard system in many different ways to suit your application and to
provide maximum flow through your yards.

Item

Oval Rails No.

Oval Rails Specs

Upright Posts

Surface Finish

Size( L x H)

Accessories

Cattle Panel Double Gate

6

 80 x 42 x 2.0mm

50 x 50 x 1.6mm

Hot dipped galvanised

 4.0 x 2.2m

double lugs, two single lugs and 2 pins

4. Cattle Sliding Gate Slide Yard Heavy Duty 8 Oval Economy 850mm 1.17x2.2M

- Dimensions: 2200mm(H) x 1170mm (W)

- Finish: HDG 28-42microns

- High Quality Galvanized Steel

Item

Oval Rails No.

Oval Rails Specs

Upright Posts

Surface Finish

Size( L x H)

Accessories

Cattle Sliding Gate

8

 80 x 40 x 1.6mm

50 x 50 x 2.0mm

HDG 15-microns

 1.17 x 2.2m

Hinges, Brackets and bolt pins


5. Portable Cattle Panels Quality Testing

  1. Firstly, we prepared the pipe (square pipe or the round pipe, the elliptic).
  2. Then put the pipe on the welded shaping machine, the pipe are galvanized,welded the pipe together.
  3. Then make the spot smoothing,
  4. Then silver painted.

6. Portable Cattle Panels Packing And Loading - With Cattle Crush & Adjustable Loading Ramp


Hot dipped galvanised portable cattle panels application: Farm corral,keep animals safe and protect your farm fields from wild animals or thieves. We have our own factories which manufacturing tube,pipe,steel channel and other steel accessories,free customization.
