5 X 12 Corral Panels

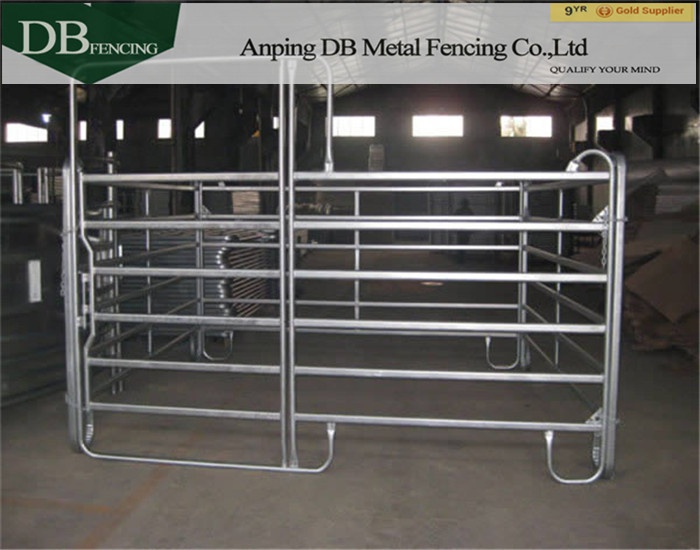

5' X 12' Corral Panels
Corral panels, also called cattle panels, horse pen, cow panels or horse fence panels, are popular in farmland of oversea countries, such as Australia, the USA and New Zealand and so on. Because cow panels surface is smooth and there is no sharp edge which can effectively prevent livestock from getting injured.
The Corral Panel is designed with the security of your livestock. This high quality panel has squared corners without sharp edges, and is made of extremely durable with tube that keep your Corral safely enclosed.
1. Corral Panels Specification
Corral panel is designed with horse and rider safety and is ideal for round pen work, exercise, lessons and training. Available in 5′ and 6′ tall configurations, but 6' is recommended for heavy training and breaking. Straight end posts with quick-pin latch for easy hookup. 5′ tall panels available in 10′, 12′ and 16′ lengths. 6′ tall panels only available in 12′.
Panel Size |
Tubing O.D. & Wall Thick |
Bars No. |
Vergtical Brace |
Accessories |
Surface Finish |
10 ft. (L) x 5 ft. (H) |
2’’ or 1 3/4’’ with 19 Gauge |
6 |
1 pcs of "Z" Brace, u-Support or Tubing Brace |
2 pin-latch , and 2 J-legs |
Galvanized and Powder Coated |
12 ft. (L) x 5 ft or 6 ft. (H) |
2’’ or 1 3/4’’ with 19 Gauge |
6 |
2 pcs of “Z” Brace, u-supports or Tubing Brace |
2 pin-latch , and 2 J-legs |
Galvanized and Powder Coated |
16 ft. (L) x 5 ft. (H) |
2’’ or 1 3/4’’ with 19 Gauge |
6 |
3 pcs of “Z” Brace, u-supports or Tubing Brace |
2 pin-latch , and 2 J-legs |
Galvanized and Powder Coated |
2. Corral Panel Accessories
The Corral Panel is specifically designed for portability. A quick-pin latch system allows this panel to assemble easily, while special J-shaped legs provide the freedom to move it around without getting stuck to the ground.
3. Corral Panels Qiality Testing
The Corral Panel has 1 3/4 inch or 2 inch in diameter tubing to provide ultimate strength and protection. With full welding and hot dipped galvanized finish, we can be sure that this panel will last for years.
4. Corral Panels Gate
- 4 ft. (L) Economy Gate with 8 ft.(H) Frame
- 6 ft. (L) Utility Gate with 8 ft.(H) Frame. 8 ft (Arch), 6 ft (Wide Opening), 1 3/4 in (Tubing), 19 gauge
- Panel Corral 10 Ft with Gate- 8' arch, 4' gate, 6' panel. 1 3/4" rounded tubing with full welded saddle joints
- 9′ arch with 6′ wide opening
- Tarter 4' Walk Through Arch Gate- lengths with an 8' arch
5. Corral Panels Packing
